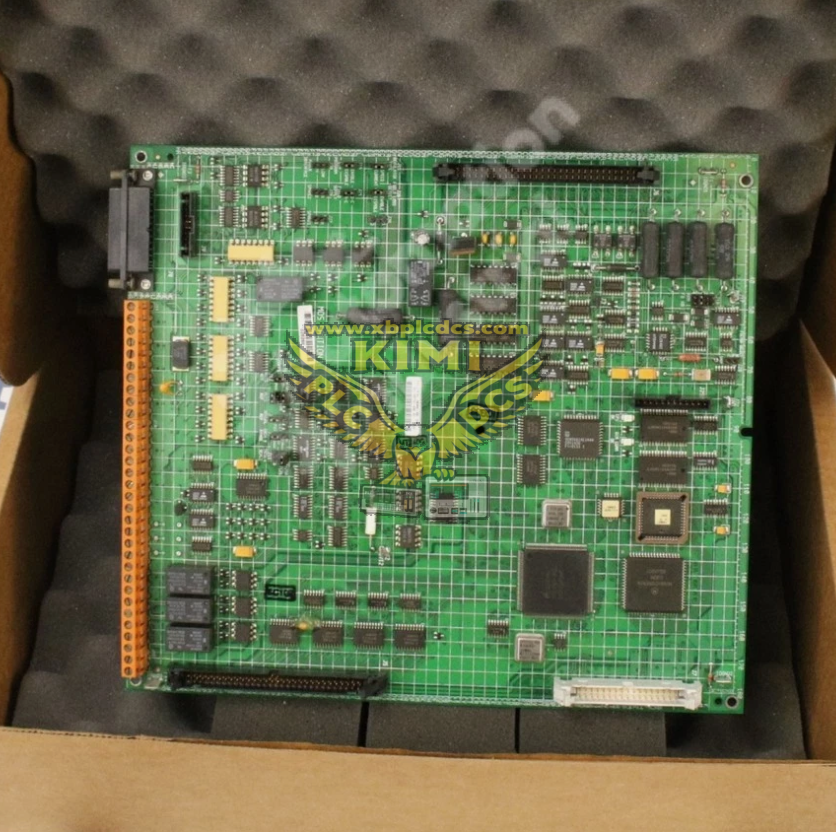

Reliance Electric 0-58770-430 Regulator Assembly Board

Product Description

The 0-58770-430 is a digital regulator PCB assembly for Reliance Electric FlexPak 3000 series DC drives. It uses conformal coated circuit board design, engineered to endure vibration, temperature swings and electrical noise inside industrial control cabinets. This is the core control board responsible for vector and general-purpose DC motor regulation. The FlexPak3000 series is end-of-life, and available stock mainly includes surplus and refurbished spare boards for legacy DC drive system maintenance.

Product Functions

• Execute high-performance closed-loop vector control for DC motors, supporting precise speed and torque regulation down to zero speed
• Process armature current, field current and speed feedback signals to calculate control output for drive power stage
• Support both sensor vector control and sensorless vector control modes for different DC motor motion requirements
• Implement speed loop, current loop and field weakening control algorithms to extend motor operating speed range
• Integrate multi-level protection functions including overcurrent, overvoltage, overload, stall and overspeed interlock protection
• Provide digital and analog I/O interfaces to communicate with operator panel, PLC and plant monitoring systems
• Store motor parameters, control gain settings and fault history logs in onboard non-volatile memory

Application Scenarios

• Core regulator board replacement for Reliance FlexPak 3000 DC drive systems
• Heavy-duty DC motor control for metal rolling, paper machines, extruders and winding equipment
• Overhaul and spare replacement of legacy DC drive cabinets in metallurgical, plastic and paper mills
• Preventive maintenance and spare inventory for factories operating Reliance DC motor drive platforms
• On-site repair of FlexPak3000 drives with failed regulator control boards
• Retrofit projects of heavy-duty continuous production line DC motion control systems

Common Problems

• Board fails to boot after power-up: aged electrolytic capacitors, blown fuses or corrupted firmware
• Motor speed oscillation or unstable torque: feedback signal interference or improper PID gain parameter tuning
• Loss of speed feedback: resolver/tachometer wiring damage, corroded connectors or input channel circuit failure
• Repeated overcurrent alarms: current sampling circuit drift, power stage fault or motor winding insulation degradation
• Parameters lost after power cycle: failure of onboard non-volatile memory chip
• Intermittent control output abnormality: cold solder joints caused by long-term thermal cycling and cabinet vibration
• Maintenance limitation: original production discontinued, limited spare chips and no official firmware upgrade support
