Brief Product Description

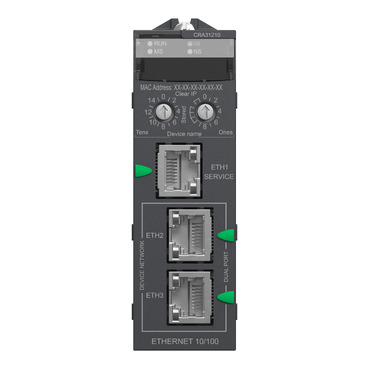

BMXCRA31210 is a high‑performance remote I/O drop adapter for Schneider Modicon X80 platform, supporting EtherNet/IP industrial communication protocol. Equipped with three RJ45 Ethernet ports including dual network ports and one dedicated service port, it implements distributed remote I/O communication between Modicon PAC controllers and field X80 I/O racks. Supporting RSTP ring and daisy‑chain network topologies, this DIN‑rail mount module realizes high‑speed data exchange for up to 1024 discrete and 256 analog channels. Built‑in comprehensive diagnostics and CCOTF (Configuration Change On‑The‑Fly) function support flexible online configuration modification. Designed for cabinet‑installation with IP20 rating, it is widely supplied as fully‑tested surplus and refurbished spare units for maintenance and retrofit of legacy Schneider automation systems.

Core Product Functions

• Act as remote I/O drop adapter to connect Modicon M340/M580 PAC controllers with distributed X80 I/O racks
• Three 10/100Mbps RJ45 ports: two for RIO network transmission and one independent service port for local commissioning
• Support EtherNet/IP and Modbus TCP protocols; compatible with RSTP ring and daisy‑chain network topology
• Process real‑time bidirectional data transmission for digital and analog remote I/O signals over Ethernet
• CCOTF function enables online configuration modification without stopping running automation system
• 10ms time‑stamping for event recording and synchronized control of distributed field devices
• Rich onboard diagnostics, LED status indicators for module operation, network link and fault status display
• Support SNMP, NTP, TFTP and FDR client for network management, time synchronization and firmware upgrade

• DIN‑rail or rack mounting structure for convenient installation inside industrial control cabinets

Application Scenarios

• Distributed remote I/O control systems for automotive assembly and manufacturing production lines
• Food & beverage, packaging machinery and process industry automation control cabinets
• Water treatment plant pumping station, valve and instrument distributed monitoring systems
• Logistics, material handling and conveyor equipment with widely‑dispersed field sensors and actuators
• Factory automation projects adopting Modicon M340 / M580 PAC and X80 series I/O modules

• Spare replacement RIO adapter for maintenance, troubleshooting and upgrade of existing Schneider Modicon X80 installations

FAQ (Frequently Asked Questions)

• Q: Remote I/O stations lose communication after module replacement?
  A: Check Ethernet cable quality, IP address configuration, RSTP ring network setup, backplane connection and controller scanner configuration.
• Q: Module reports fault LED alarm during normal running?
  A: Inspect backplane power supply, I/O rack hardware fault, network storm interference, firmware mismatch or incorrect network topology settings.
• Q: Can Schneider BMXCRA31210 be hot‑swapped when rack remains powered‑on?
  A: Hot‑swap is not supported. Power off the rack before replacement to avoid remote I/O station offline and unexpected equipment action.
• Q: Can this RIO drop adapter work with non‑Schneider PLC or third‑party I/O modules?
  A: It is dedicated for Modicon X80 I/O and M340/M580 PAC platform; backplane bus and RIO protocol cannot adapt to third‑party hardware.
• Q: Is Schneider BMXCRA31210 available for brand‑new automation projects?
  A: This legacy RIO drop adapter has reached end‑of‑life. Only surplus and fully‑tested refurbished units are provided for existing‑site maintenance work.
