PROSOFT 5304-MBP-PDPM | Modbus Plus to PROFIBUS DP Master Gateway
Standalone Protocol Gateway for Seamless Integration of Modbus Plus & PROFIBUS DP Networks in Industrial Automation
1. Product Overview

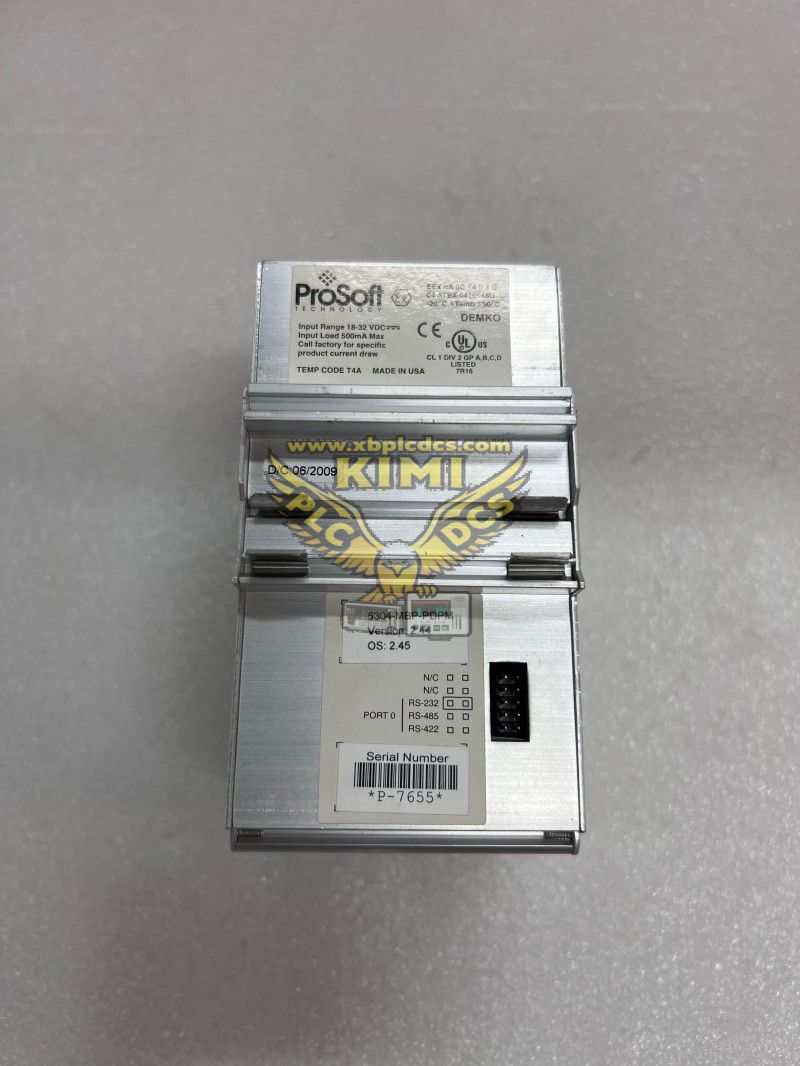

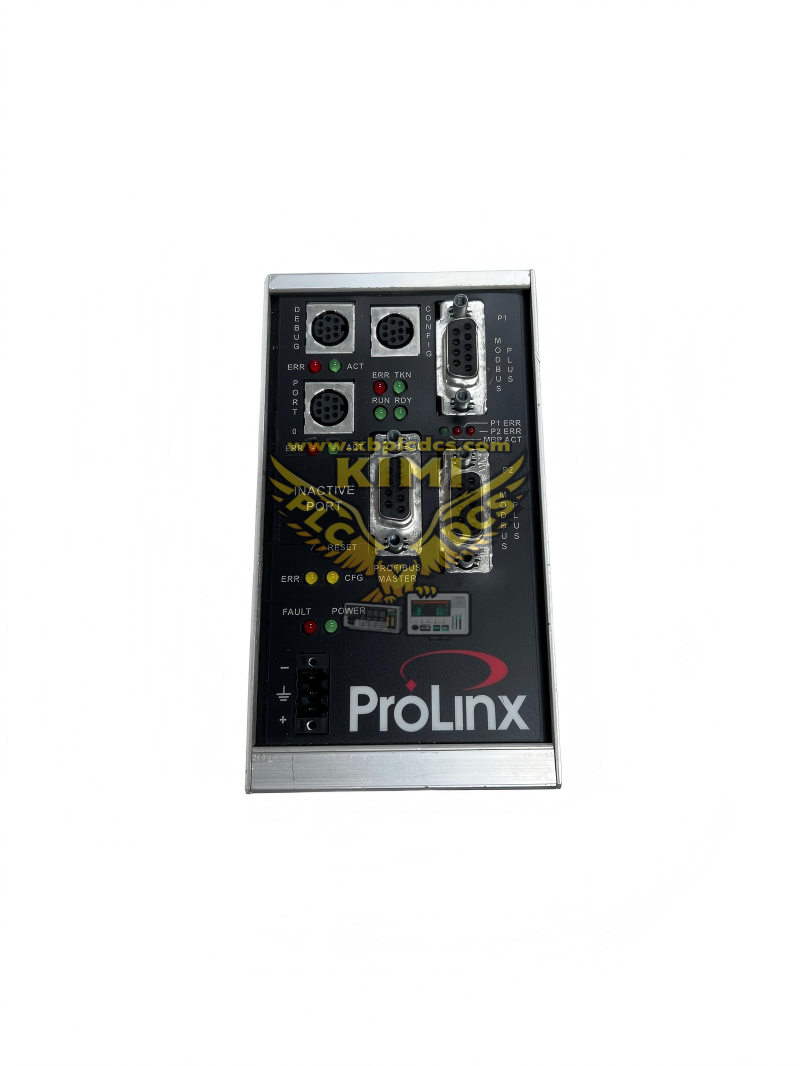

The PROSOFT 5304-MBP-PDPM is a standalone DIN-rail mounted protocol gateway that bridges Modbus Plus and PROFIBUS DP networks, enabling seamless data exchange between Modbus Plus devices (Modicon PLCs, HMI) and PROFIBUS DP slave devices (drives, sensors, valves) in industrial automation systems. It features a configurable Modbus Plus port (DB9F, master/slave mode) and a PROFIBUS DP master port (DB9F, DPV1-compliant), supporting 9.6 kbps-12 Mbps PROFIBUS baud rates, up to 124 DP slaves, and cyclic/acyclic data transfer (DPV1) for diagnostics and parameterization. The gateway operates on 18-30VDC (24VDC nominal, 5W max power), offers -40°C to +70°C wide temperature range, and includes built-in diagnostics (LED indicators, web server, PCB software) for network status monitoring and fault detection. It ensures reliable operation in harsh industrial environments (manufacturing, oil/gas, power, water/wastewater) with CE, UL, and IEC 61158 compliance for safety and EMC immunity.
Key Specifications
• Model: 5304-MBP-PDPM (ProLinx Series, Modbus Plus to PROFIBUS DP Master Gateway)
• Type: Standalone Protocol Gateway for Modbus Plus ↔ PROFIBUS DP Master Communication
• Modbus Plus Port: DB9F, configurable as Master/Slave; Node Address 1-64; Baud Rate 1 Mbps (fixed)
• PROFIBUS DP Port: DB9F, Class 1 Master (DPV1-compliant); 9.6 kbps-12 Mbps (software-selectable); Up to 124 Slaves
• Data Transfer: Cyclic I/O exchange (max 244 bytes input/output); Acyclic DPV1 services (diagnostics, parameterization)
• Power Supply: 18-30VDC (24VDC nominal), 5W max power consumption
• Operating Temperature: -40°C to +70°C; Storage: -40°C to +85°C
• Dimensions (W×H×D): 132mm × 52.5mm × 114.8mm (5.20×2.07×4.52 inches); Weight: ~0.3kg
• Diagnostics: Module power, network activity, fault LEDs; internal web server; ProSoft Configuration Builder (PCB) software
• Certifications: CE, UL 508, IEC 61158 (PROFIBUS), IEC 61010-1 (safety), IEC 61326-1 (EMC)
2. Core Features
• Dual Protocol Support: Modbus Plus (master/slave) and PROFIBUS DP (DPV1 master) for flexible network integration.
• High-Speed Data Transfer: Up to 12 Mbps PROFIBUS baud rate and cyclic/acyclic DPV1 services for real-time control and diagnostics.
• Easy Configuration: ProSoft Configuration Builder (PCB) software for gateway setup, slave configuration, and data mapping.
• Enhanced Diagnostics: LED indicators for power, network activity, and faults; internal web server for remote monitoring.
• DIN-Rail Mountable: Compact design for cabinet installation; hot-swappable for easy maintenance.
• Wide Temperature Range: -40°C to +70°C for reliable operation in extreme industrial conditions.
• Robust Isolation: 2500V AC isolation between ports and power supply for surge protection and noise immunity.
• Sample Code & AOIs: Pre-built ladder logic and Add-On Instructions for seamless integration with Modicon PLCs.
YMGK Purchase Information
This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.
One-Stop Global Industrial Product Procurement
Sales Manager: KI MI
WeChat: 18059884790
Global Inventory:
121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
- Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage:
Serving clients across United States, Germany, Japan, South Korea, United Kingdom,
France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands,
Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality:
All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts.
We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
For additional inquiries, reach out to us at any time.
All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders.
3. Typical Applications
• Manufacturing: Connect Modicon PLCs (Modbus Plus) to PROFIBUS DP drives for production line speed control and HMI monitoring.
• Oil & Gas: Integrate Modbus Plus SCADA systems with PROFIBUS DP flow meters, pressure transmitters, and valve positioners in wellhead control.
• Power Generation: Bridge Modbus Plus turbine control systems with PROFIBUS DP protection relays, motor starters, and generator sensors.
• Water/Wastewater: Link Modbus Plus HMI to PROFIBUS DP pumps, level sensors, and treatment process valves for remote monitoring and control.
• Food & Beverage: Connect Modbus Plus batch controllers to PROFIBUS DP temperature controllers, filling machines, and packaging equipment.
4. Installation & Maintenance
Installation: Mount on DIN rail; connect 24VDC power (reverse-polarity protected). Wire Modbus Plus (DB9F: Pin 2=Data+, Pin 3=Data-, Pin 5=GND) and PROFIBUS DP (DB9F: Pin 3=Data+, Pin 8=Data-, Pin 5=GND). Terminate PROFIBUS bus with 150Ω resistor at both ends.
Configuration: Use ProSoft Configuration Builder (PCB) to set Modbus Plus node address, PROFIBUS baud rate/slave count, data mapping (I/O registers), and DPV1 services (diagnostics/parameterization).
Maintenance: Monthly: Inspect network connections; check LED status (power, Modbus Plus activity, PROFIBUS activity, fault). Annual: Verify insulation resistance (>100MΩ); update firmware via web server/PCB software.
Fault Diagnosis: Fault LED active = Check PROFIBUS cable/termination or slave device faults; Modbus Plus no communication = Verify node address and wiring; Power loss = Check 24VDC supply and connections.
