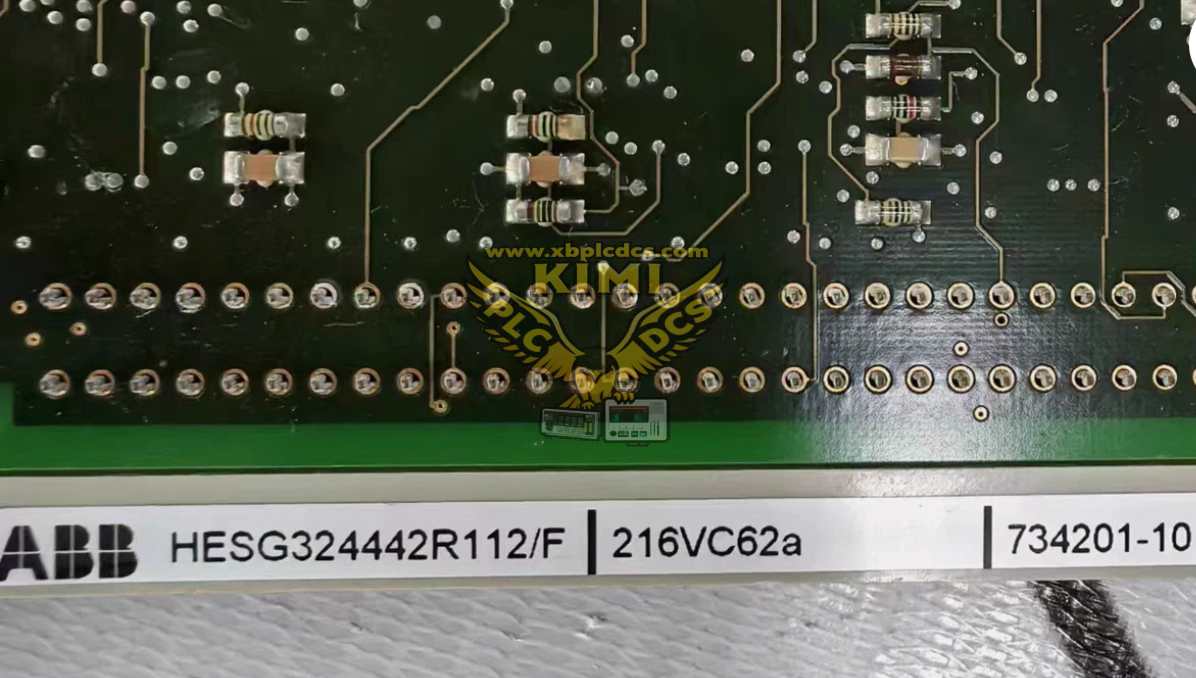

ABB HESG324442R112/F (216VC62A) Processor Unit Board

Product Description

The HESG324442R112/F, also designated 216VC62A, is a rack‑mounted high‑speed processor unit board developed by ABB for legacy power control and generator excitation systems. It adopts VME bus architecture and conformal coated PCB, equipped with embedded processor, onboard flash and RAM memory, B448C internal bus interface and relay logic output circuits. This module performs local high‑speed protection calculation, signal processing and logic interlock, and is widely used as spare replacement parts in aging ABB UNITROL excitation and power protection racks.

Product Functions

• Execute fast protection algorithms, interlock logic and generator excitation control calculations in real time
• Collect current, voltage and digital status data via B448C bus and process measurement signals
• Output relay trip and control commands for protection actions and breaker control
• Realize high‑speed data exchange with other controller boards through internal system bus
• Store configuration parameters, fault logs and event records in non‑volatile flash memory
• Built‑in hardware self‑diagnosis for processor, memory, bus circuit, power and relay channel faults
• Front‑panel LED indicators display running status, link signals and fault alarms for on‑site inspection

Application Scenarios

• Large synchronous generator UNITROL excitation control cabinets in thermal and hydropower plants
• Substation high‑voltage power grid protection and breaker bay control systems
• Static Var Compensator (SVC) and STATCOM grid voltage stabilization control racks
• Industrial heavy‑current rectifier control for metallurgy and electrolysis production lines
• Power plant auxiliary equipment safety interlock and emergency trip control systems
• Maintenance and spare part retrofit for obsolete ABB power control racks

Common Problems

• Module fails to start after power‑on：aging onboard power circuit, backplane connector oxidation or PCB contamination
• B448C bus communication intermittent dropout：loose backplane contact, bus transceiver chip damage or electromagnetic interference
• Loss of configuration and fault history data：flash memory degradation or unexpected power interruption
• Relay output channel failure：internal relay contact burnout and circuit trace corrosion caused by long‑term operation
• Self‑diagnosis persistent hardware alarm：electrolytic capacitor aging, dust accumulation and poor cabinet heat dissipation
• Slow protection response and calculation delay：processor hardware aging or corrupted firmware data
• Cannot be recognized by rack system：incompatible firmware version or damaged VME bus contact pins
