ABB 5SHY3545L0020 / 3BHE014105R0001 IGCT Power Module--KIMI

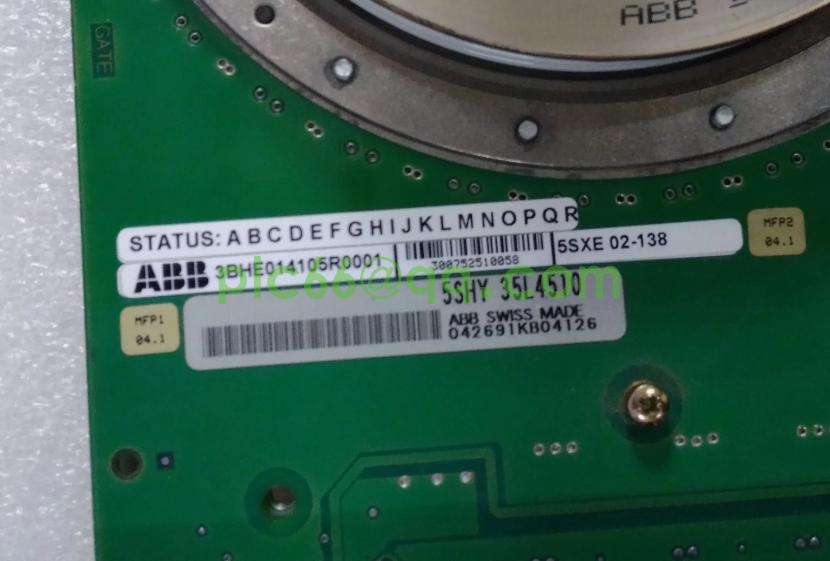

  • Part number:5SHY35L4510 3BHE014105R0001 5XSE02-138
  • Product Origin:Sweden
  • HS CODE:8708299000
  • Warehouse: Spot
  • Warranty: 365 days
  • Quality: Original module
  • Condition: New
  • Shipping method: Courier delivery

  • Contact person: LI MING
  • Contact number: +86 18059884790
  • WeChat:18059884790
  • E-mail: plc66@qq.com

Product Description

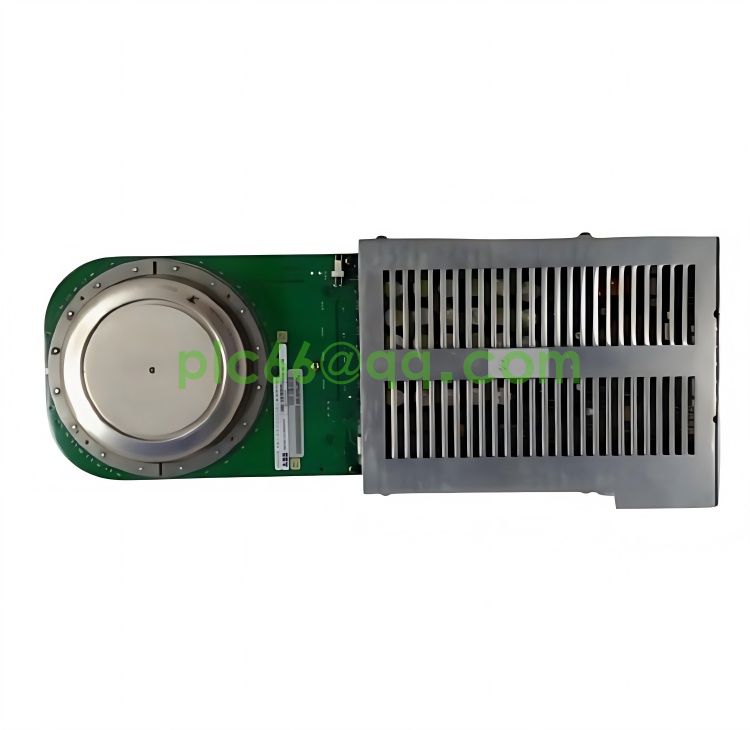

ABB 5SHY3545L0020 / 3BHE014105R0001 IGCT Power Module
High-Power Insulated Gate Commutated Thyristor Module for Industrial Power Conversion
1. Product Overview

The ABB 5SHY3545L0020 (3BHE014105R0001) is a high-performance IGCT (Insulated Gate Commutated Thyristor) power module, designed for high-power industrial applications requiring efficient and reliable power conversion. It integrates advanced IGCT technology with robust thermal management and protection features, supporting high voltage and current operation for HVDC transmission, wind turbine converters, solar inverters, and industrial motor drives. With excellent switching characteristics, low on-state voltage drop, and high short-circuit withstand capability, it ensures stable power control and fault protection in harsh industrial environments, minimizing downtime and maximizing energy efficiency.




2. Key Technical Specifications
• Product Type: High-Power IGCT Power Module (Insulated Gate Commutated Thyristor)
• Brand & Model: ABB 5SHY3545L0020 (Alternative Part No.: 3BHE014105R0001, 5SXE080166)
• Power Device: IGCT (Insulated Gate Commutated Thyristor)
• Voltage Rating: 4.5 kV (Collector-Emitter Voltage, Vce)
• Current Rating: 1.2 kA (Continuous Collector Current, Ic)
• Gate Drive Voltage: 24 Vdc (Nominal, ±20% Tolerance)
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Isolation Voltage: 6 kV (AC, 50/60 Hz, 1 min)
• Thermal Resistance (Junction-Case): 0.08 K/W
• Dimensions (L×W×H): 30 × 119 × 115 mm (1.18 × 4.69 × 4.53 in)
• Weight: 0.4 kg (0.88 lbs)
• Mounting: Heat Sink Mount (Torque: 4.5 Nm for Mounting Screws)

• Certifications: CE, UL, IEC 60747-9 (Semiconductor Device Safety Compliance)


5SHY3545L0020 3BHE014105R0001 5SXE08-0166 -2(1).jpg


3. Core Features
• High Power Density: 4.5 kV / 1.2 kA Rating for High-Power Conversion Systems (HVDC, Wind Power).
• Fast Switching: Low Turn-On/Turn-Off Delay for Efficient Power Control & Dynamic Response.
• Low On-State Loss: Optimized Thyristor Structure Reduces Conduction Loss (High Energy Efficiency).
• Robust Protection: Overcurrent, Overvoltage, and Overtemperature Protection Circuits.
• Galvanic Isolation: 6 kV AC Isolation Between Power & Control Circuits (Safety Compliance).
• Gate Drive Integration: Compatible with ABB Standard 24 Vdc Gate Drivers (Plug-and-Play).

• Long Lifespan: High Thermal Cycling Capability (≥10,000 Cycles) for Harsh Industrial Environments.


5SHY3545L0020 3BHE014105R0001 5SXE08-0166 -3(1).jpg


4. Typical Applications
• High-Voltage Direct Current (HVDC): Power Conversion for Long-Distance Power Transmission.
• Wind Power: Wind Turbine Converter (Full-Scale Converter for Doubly-Fed Induction Generators).
• Solar Energy: Utility-Scale Solar Inverter (Grid-Tied Power Conversion).
• Industrial Motor Drives: Medium-Voltage AC Drive (Pump, Fan, Compressor Control).
• Power Quality: Static Var Compensator (SVC) & Active Power Filter (APF) for Grid Stability.
• Traction: Railway Locomotive & Electric Vehicle (EV) Charging Station Power Module.
5. Installation & Maintenance
• Mounting: Fix to Heat Sink with 4.5 Nm Torque; Ensure Even Pressure for Thermal Conductivity.
• Wiring: Connect Power Terminals (Collector/Emitter) & Gate Drive (24 Vdc, Signal Ground).
• Gate Drive: Use ABB Approved Gate Driver (24 Vdc, 500 mA Max. Current).
• Maintenance: Check Thermal Grease Condition Every 2 Years; Replace Module if Overvoltage/Overcurrent Tripping.
• Troubleshooting: Use ABB Diagnostic Tools to Check Gate Signal Integrity, Overcurrent, and Overtemperature.
• Safety Guidelines: Follow High-Voltage Isolation Procedures; Use Personal Protective Equipment (PPE).
Technical Document | ABB 5SHY3545L0020 / 3BHE014105R0001 | IGCT Power Module | High-Power Conversion Systems
