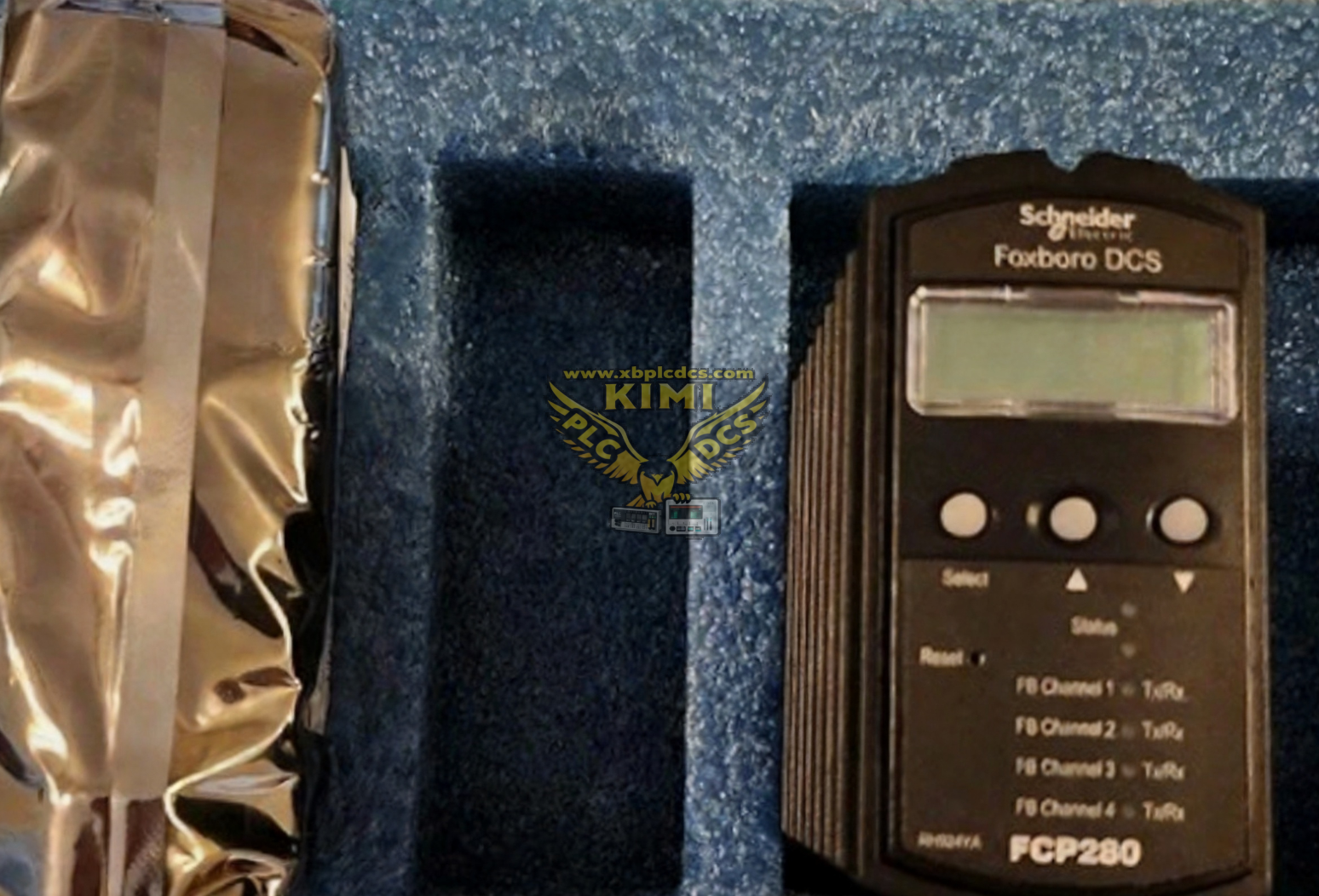

Foxboro FCP280‑RH924YA Field Control Processor for EcoStruxure Foxboro DCS

Product Description

The FCP280‑RH924YA is a high‑performance, field‑mounted distributed fault‑tolerant control processor for Schneider EcoStruxure Foxboro I/A Series and Foxboro Evo DCS platforms. It adopts vent‑free die‑cast aluminum heat dissipation housing, rated for Class G3 harsh industrial environments. Equipped with 128MB SDRAM and 128MB flash memory, four built‑in HDLC fieldbus ports and 100Mbps fiber/copper MESH Ethernet interface, it can directly connect up to 128 FBM series fieldbus I/O modules without extra expansion boards. The unit supports 1+1 hot‑standby redundant configuration and online firmware upgrade, designed for long‑term continuous unattended operation in plant control cabinets.

Product Functions

• Execute real‑time PID closed‑loop regulation, discrete interlock logic, timing and sequential batch control strategies
• Collect analog and digital process signals from FBM I/O modules and generate alarm events and notifications
• Four independent HDLC fieldbus channels to communicate with local and remote FBM fieldbus modules
• 100Mbps redundant MESH Ethernet communication with operator stations, engineering stations and peer controllers
• 1+1 patented fault‑tolerant hot‑standby operation with bumpless automatic switchover upon master failure
• Self‑hosting startup mode, capable of running control database independently without host workstation support
• Comprehensive hardware self‑diagnosis for memory, fieldbus, Ethernet, power supply and circuit faults
• Store control configuration, alarm logs and trend data, support online image upgrade without process shutdown

Application Scenarios

• Oil & gas plants, refineries and LNG facilities with EcoStruxure Foxboro DCS systems
• Thermal power and combined‑cycle power plant boiler, turbine and auxiliary process control
• Chemical, fertilizer, pharmaceutical and pulp & paper continuous production control loops
• Metallurgy, large water treatment and municipal industrial automation control stations
• Off‑shore platforms and natural gas pipeline compressor skid distributed field control
• System upgrade and spare replacement for aging Foxboro I/A Series DCS control racks

Common Problems

• Controller offline and unrecognized：baseplate connector oxidation, backplane damage or incompatible firmware version
• Redundant switchover failure：firmware mismatch and unsynchronized configuration between primary and standby FCP280
• Intermittent fieldbus communication loss：FBM cable aging, loose terminals or severe electromagnetic interference
• Ethernet network disconnection：fiber connector contamination, optical cable bending damage or switch fault
• Loss of configuration and historical logs：unexpected power outage or degradation of onboard flash memory
• Overheating and hardware diagnostic alarms：dust accumulation and poor heat dissipation inside the aluminum enclosure
• Slow control response and high CPU load：overcomplicated control logic or unreasonable scan cycle parameter settings
