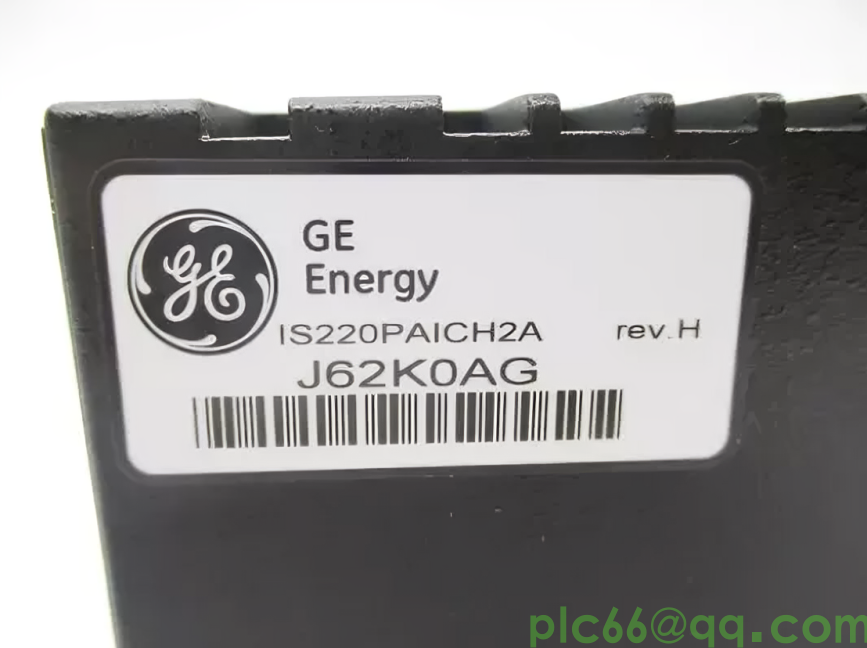

Specification of IS220PAICH2A analog input/output module

product description

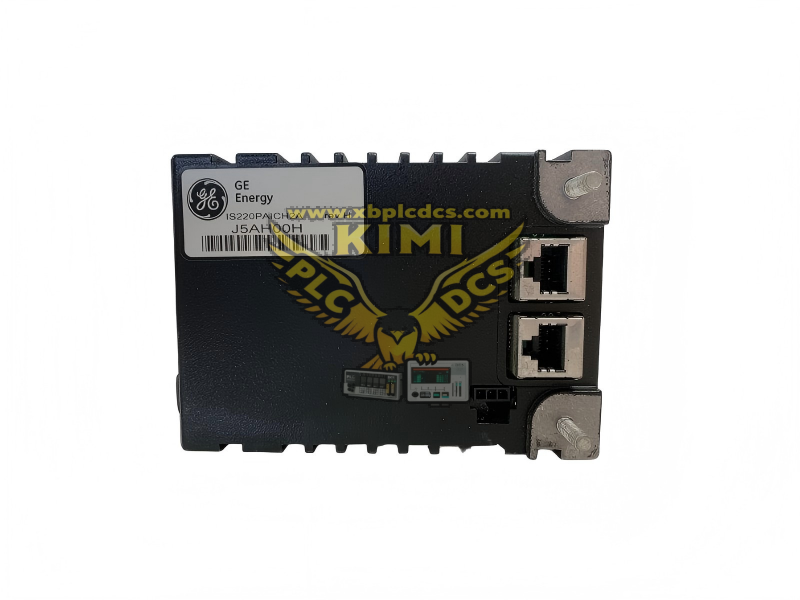

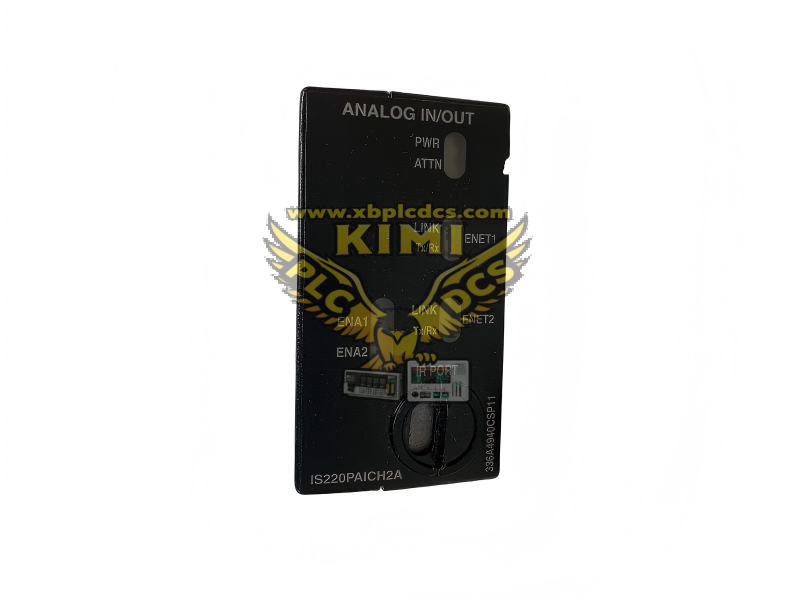

IS220PAICH2A is an analog I/O module developed by General Electric. It is a part of the Mark VIe Speedtronic control system. This I/O pack is directly attached to the terminal board. The I/O pack is connected to the simplex terminal board via a single DC-37 pin connector. If only one I/O pack is installed, the TMR-capable terminal board has three DC-37 pin connectors and can be used in simplex mode. All of these connections are directly supported by the I/O pack.

Functional Description

• The Analog I/O pack (PAIC) is an electrical interface that connects one or two I/O Ethernet networks to an analog input terminal board. The PAIC includes a BPPx processor board as well as an acquisition board dedicated to the analog I/O function.
• The module has ten analog inputs. The first eight inputs can be set to 5 V or 10 V or 4-20 mA current loop inputs. The final two inputs can be set to 1 mA or 4-20 mA current inputs.
• The load terminal resistors for current loop inputs are located on the terminal board, and the PAIC senses voltage across these resistors. PAICH2 has two current loop outputs ranging from 0 to 20 mA. It also includes additional hardware that allows for 0-200 mA current on the first output only.

• The I/O pack receives and sends data to the controller via dual RJ-45 Ethernet connectors and is powered by a three-pin connector. Field devices are communicated with via a DC-37 pin connector that connects directly to the associated terminal board. LED indicator lights provide visual diagnostics.



IS220PAICH2A Installation

1. Securely mount the terminal board of choice.
2. Insert the PAIC I/O pack directly into the terminal board connectors.
3. Use the threaded studs adjacent to the Ethernet ports to mechanically secure the I/O pack(s). The studs fit into a terminal board-specific mounting bracket. The bracket should be positioned so that no right-angle force is applied to the DC-37 pin connector between the I/O pack and the terminal board. The adjustment should only be needed once during the product's service life.
4. Depending on the system configuration, connect one or two Ethernet cables. The I/O pack will function on either port. When using dual connections, it is common practice to connect ENET1 to the network associated with the R controller.
5. Connect the I/O pack to power by plugging in the connector on the side of the pack. Because the I/O pack has inherent soft-start capability that controls current inrush on power application, it is not necessary to disconnect power from the cable before plugging it in.
6. Configure the I/O pack as needed using the ToolboxST application.

Click to download the instruction manual

IS220PAICH2A Instruction Manual.pdf

Welcome to YMGK. To help you better understand IS220PAICH2A, the following are application cases of the IS220PAICH2A from our cooperative clients

• Power Generation Industry5: The IS220PAICH2A module is a component of the Mark VIe Speedtronic control system, commonly used in gas turbines and other power generation equipment. It can monitor and control parameters such as temperature, pressure, and flow in real - time. For example, it monitors the temperature of the combustion chamber in a gas turbine. When the temperature exceeds a certain threshold, it sends a signal to adjust the fuel supply to ensure the safe and efficient operation of the gas turbine.
• Chemical Industry: In chemical production processes, the module is used to monitor and control the liquid level, temperature, and pressure of reactors. For example, in a polymerization reaction process, the IS220PAICH2A module collects analog signals of the temperature and pressure inside the reactor in real - time and transmits them to the controller. The controller then adjusts the feed rate of raw materials and the cooling - water flow according to the received signals to ensure the stability of the reaction process and the quality of the product.
• Metallurgical Industry: In steel mills, the IS220PAICH2A module can be used to monitor the temperature and pressure of blast furnaces and control the rolling force and speed of rolling mills. For example, when the temperature of the blast furnace fluctuates, the module promptly sends a signal to adjust the air supply and fuel injection amount to maintain the stability of the blast - furnace temperature. In the rolling - mill process, it controls the rolling force and speed according to the thickness and material properties of the steel plate to ensure the dimensional accuracy and surface quality of the steel plate.

• Water Treatment Industry: In water treatment plants, the module is used to monitor and control parameters such as the water level, flow, and water quality of the water treatment process. For example, it monitors the water level in the sedimentation tank and controls the opening degree of the inlet and outlet valves to ensure the stability of the water level. At the same time, it monitors the turbidity and pH value of the water and adjusts the amount of flocculant and disinfectant added to ensure the quality of the treated water meets the standards.
