Cameron AAP3798102‑00130 Maestro Universal Compressor Control & HMI Panel

Product Description

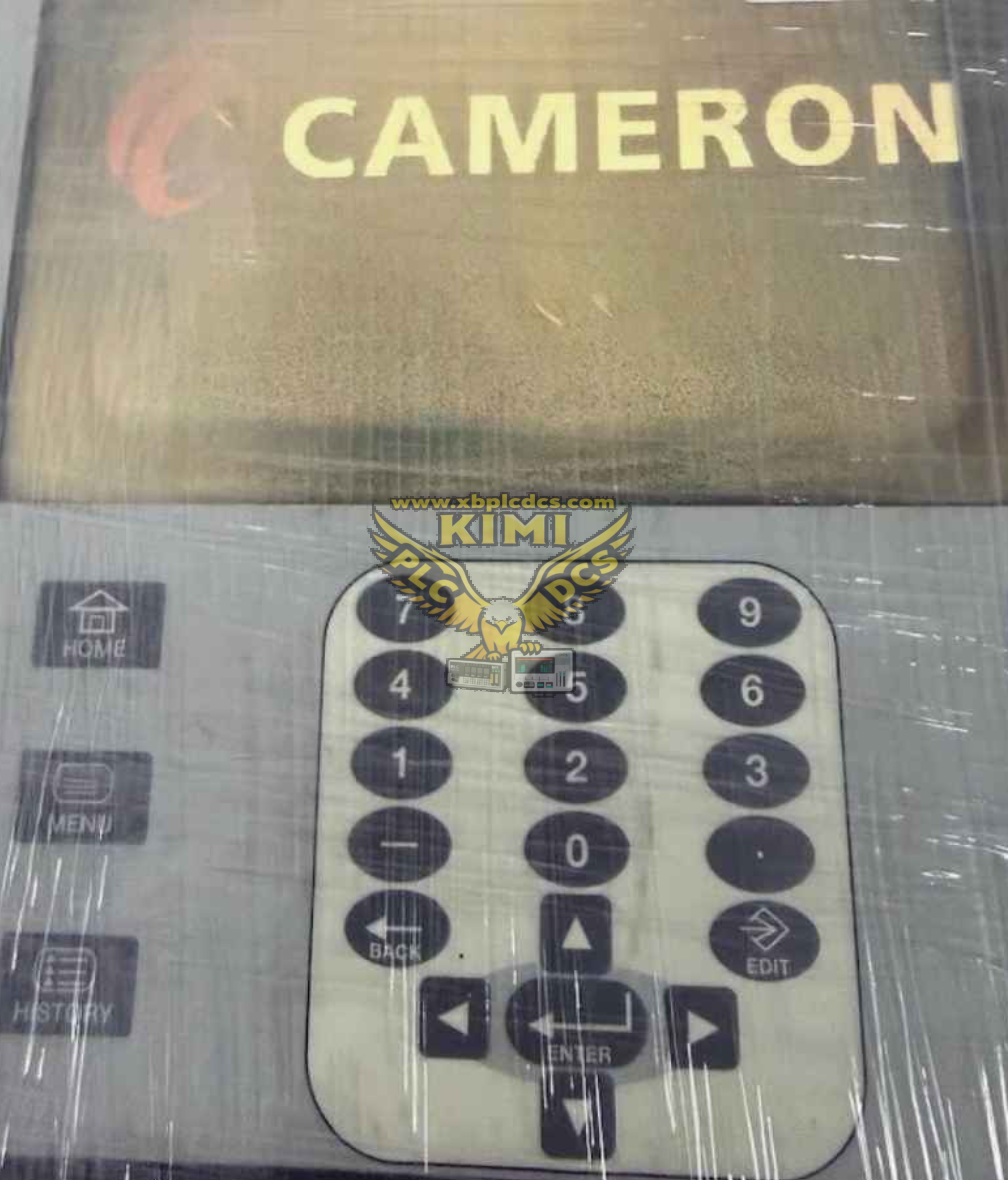

The AAP3798102‑00130 is a Cameron Maestro Universal integrated compressor controller and user interface module, panel‑mounted with TFT LCD display and membrane keypad. It is a dedicated control unit for oil‑gas reciprocating and screw compressors, integrating main control logic, local human‑machine interface and multi‑port communication. Built with rugged metal enclosure for offshore, field and skid‑mounted installations, it serves as both the main controller and local operator station for compressor packages.

Product Functions

• Full automatic compressor startup, loading/unloading and shutdown sequence control
• Real‑time monitoring of pressure, temperature, vibration, flow and operating speed
• Anti‑surge control, capacity regulation and safety interlock protection logic
• Local LCD display, keypad operation, parameter modification and alarm confirmation
• Ethernet Modbus TCP and RS485 Modbus RTU communication for SCADA and DCS connection
• Event log, fault history and trend data storage for equipment troubleshooting
• Built‑in hardware self‑diagnosis for power, communication and I/O circuit failures
• Programmable relay alarm outputs and analog signal transmission to remote control systems

Application Scenarios

• Onshore and offshore natural gas compressor packages
• Oil & gas pipeline compression stations and gathering skids
• Reciprocating and screw compressors for petrochemical plants
• Off‑shore platform gas boosting and process compression systems
• Cameron Maestro series compressor control cabinets
• Gas field, refinery and LNG auxiliary compression control systems

Common Problems

• LCD screen black or dim：24VDC power supply anomaly, backlight circuit failure
• Keypad no response：membrane keypad aging or internal flexible cable disconnection
• Loss of communication with remote SCADA：IP address mismatch, damaged network cable or RS485 bus interference
• False safety shutdown alarm：incorrect threshold settings, sensor drift or loose field wiring
• Unable to execute start‑up sequence：interlock condition not satisfied or program configuration corruption
• Intermittent communication dropout：vibration causing poor terminal contact on rear connectors
• Data recording failure：internal flash memory aging or unexpected power interruption
