Bently Nevada 3500/15 (106M1079‑01) Universal AC Power Supply Module

Product Description

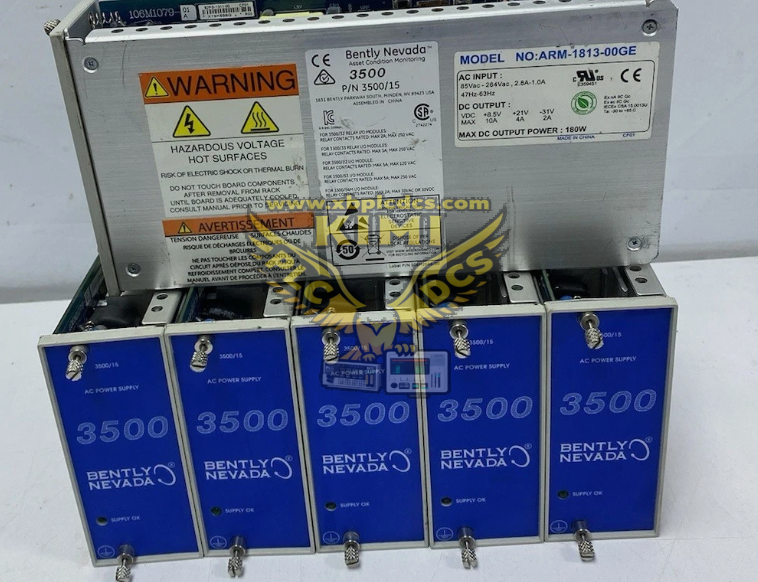

106M1079‑01 is a half‑height universal AC power supply front card for Bently Nevada 3500 series machinery protection rack, matched with rear input module 106M1081‑01. It accepts wide‑range 85‑264 VAC 47‑63 Hz input and converts to multi‑channel regulated DC backplane power for all monitor, keyphasor and communication modules inside 3500 rack. It must be installed in dedicated left‑hand slots of 3500 rack, supports 1+1 redundant parallel configuration, and adopts hot‑swap design for rotating‑machinery protection systems in power, oil & gas and petrochemical industries. Max output power reaches 65 W for full‑rack load support.

Product Functions

• Wide‑range AC‑DC conversion, provides stable regulated backplane power for entire 3500 machinery protection rack.
• 1+1 redundant parallel operation; primary‑backup automatic seamless fail‑over upon single power unit fault.
• Hot‑swap capability: module replacement online without shutting down rack or machinery protection functions.
• Built‑in over‑voltage, over‑current, short‑circuit and over‑temperature protection for downstream monitoring boards.
• LED status indicators for power OK and module fault for local on‑site diagnosis.
• Upload power supply health diagnostic status to 3500 system for remote alarm monitoring.
• Compatible with mixed AC/DC power supply combination inside one 3500 rack according to site requirements.

Application Scenarios

• Thermal power plant gas turbine, steam turbine and turbo‑generator 3500 machinery protection cabinet.
• Oil & gas refinery compressor, pump and high‑speed rotating equipment vibration monitoring rack.
• Petrochemical critical rotating machinery safety protection system requiring high‑availability power supply.
• Combined‑cycle power unit ESD interlock and condition‑monitoring control cabinet.
• Spare‑part replacement and overhaul retrofit for existing Bently Nevada 3500 installations.

Common Problems & Troubleshooting

• Power LED off, rack no power: Check AC input voltage, circuit breaker, wiring terminals and rear 106M1081‑01 input module connection status.
• Fault LED illuminated: Inspect total rack load not exceeding 65 W rated output; check backplane short‑circuit; perform hot‑swap replacement if internal hardware damage confirmed.
• Redundancy loss system alarm: Confirm both power modules are fully seated in dedicated left‑side slots, verify parallel working condition of primary and backup units.
• Intermittent rack reset or module dropout: Check rack backplane contact condition, cabinet grounding, eliminate vibration‑caused loose connections.
• Over‑temperature warning: Check cabinet ventilation and dust accumulation; keep ambient operating temperature within 0℃‑60℃ range.
• Abnormal noise or early aging: Service life is around 10‑15 years; schedule preventive replacement during unit shutdown overhaul.
