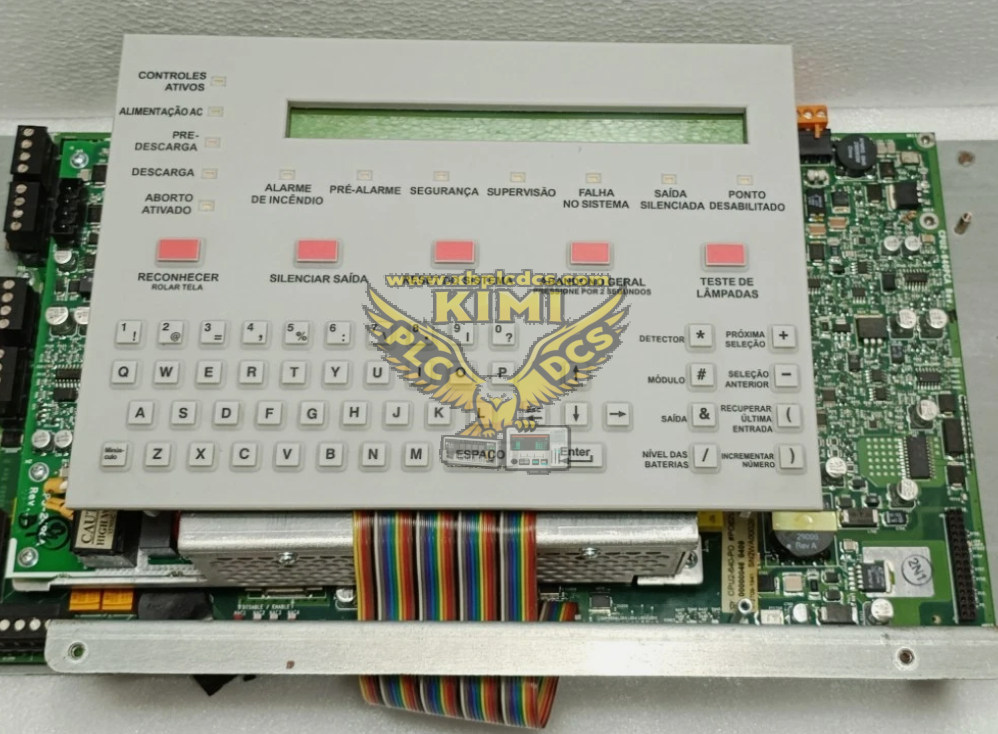

Honeywell Notifier CPU2‑640 Fire Alarm Central Processing Unit

Product Description

CPU2‑640 is the main central processing unit for Honeywell Notifier ONYX‑Series NFS2‑640 intelligent fire alarm control panel. Integrated with built‑in power supply unit, it accepts 120VAC input, supports intelligent addressable fire detection loop circuit, works with KDM‑R2 display keypad assembly. This unit supports standalone and multi‑node network fire alarm system deployment, complies with UL fire safety standards, executes fire signal processing, alarm logic, fault monitoring and system network communication for building fire safety systems.

Product Functions

• Process signals from addressable smoke detectors, heat detectors, manual call points and fire safety field devices via SLC signaling line circuit.
• Built‑in power supply, rated 3A standby output, 6A alarm output for fire panel peripheral equipment power supply.
• Fire alarm logic execution, zone monitoring, fault identification, supervisory signal processing and relay output control.
• Supports fire panel network interconnection, maximum up to 103 network nodes for large‑scale building fire safety system.
• Connects KDM‑R2 LCD keypad module for local configuration, status display, alarm browsing and system programming.
• Event history logging: store timestamped fire alarm, trouble and supervisory records for post‑event review.
• Comprehensive hardware self‑diagnosis for CPU, memory, SLC loop, power unit and communication interface faults.
• Support expansion of additional signaling line circuits and peripheral control boards to increase system capacity.

Application Scenarios

• Commercial high‑rise building fire detection and fire alarm safety control system.
• Shopping mall, hotel, hospital and large public facility fire protection control cabinet.
• Industrial plant, warehouse fire alarm system using Notifier ONYX series platform.
• Campus multi‑building distributed fire alarm network system deployment.
• Spare‑parts replacement and system upgrade for existing NFS2‑640 fire control panel installations.

Common Problems & Troubleshooting

• Panel no power, all indicators off: Check 120VAC main input, circuit breaker, AC terminal wiring and internal fuse status of CPU2‑640 unit.
• System general trouble alarm: Review trouble code on display; inspect SLC loop short‑circuit, open‑circuit or field device failure; check earth leakage of loop wiring.
• Cannot communicate with KDM‑R2 keypad display: Verify flat cable connection between CPU mainboard and display module, confirm compatible firmware version.
• SLC loop fault alarm: Isolate loop wiring, check short‑circuit, ground fault, excessive number of field devices; inspect terminal block loose connection.
• Network node communication loss: Check fire panel network cable, terminal resistance setting, verify network configuration parameter matching across nodes.
• Event log missing or cannot save: Perform system diagnostic test; check hardware memory fault, carry out configuration backup and hardware replacement if necessary.
• Over‑temperature warning: Check cabinet ventilation condition, avoid heat accumulation inside fire control cabinet, keep ambient temperature within specification range.
