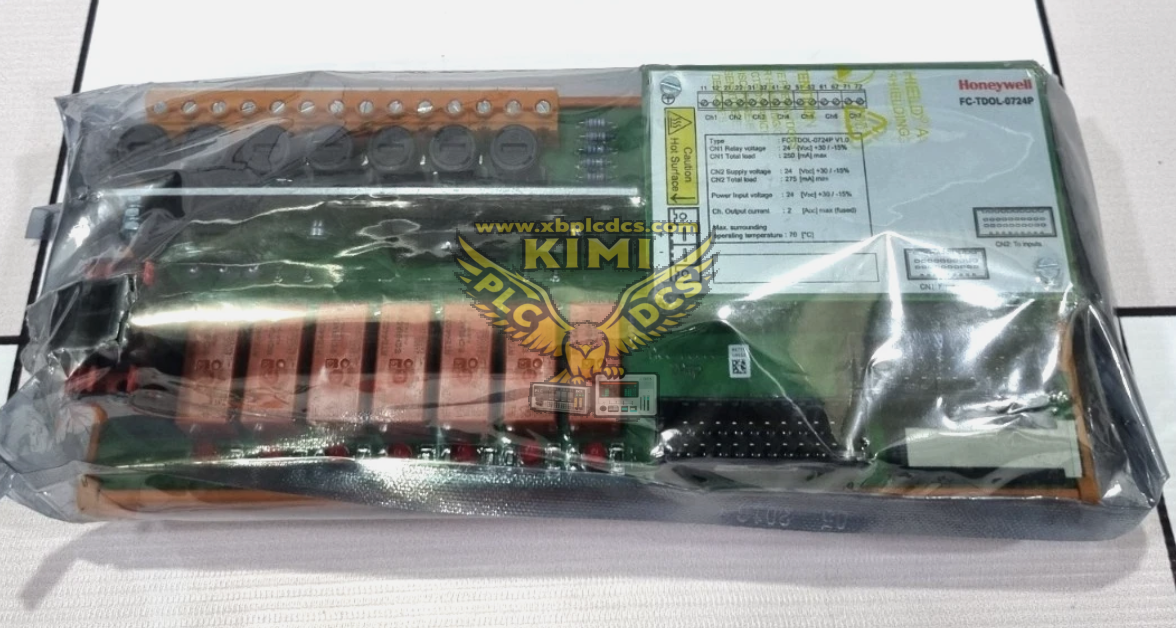

Honeywell FC-TDOL-0724P Digital Output FTA Terminal Assembly

Product Description

The Honeywell FC-TDOL-0724P is a field terminal assembly (FTA) for digital output channels, designed for Honeywell Safety Manager safety control system. It provides terminal wiring interface, loop monitoring and signal isolation for safety digital output modules. This 24V version supports safety-related output control, with built-in circuit protection and fault detection. It is widely used as spare part for safety interlock system maintenance and replacement in petrochemical, power and refining plants.

Product Functions

• Field wiring termination for safety digital output signals from the Safety Manager I/O module
• Loop diagnostic monitoring to detect open circuit, short circuit and wiring fault on output loops
• Electrical isolation and surge protection to protect safety modules from field interference
• Drive safety actuators, solenoid valves and alarm devices under SIL-rated safety logic
• Onboard status indicators for quick fault location and channel inspection
• Backplane matching design for direct plug and replacement inside Safety Manager rack

Application Scenarios

• Petrochemical, refinery and natural gas ESD emergency shutdown systems
• Power plant safety interlock and burner management control cabinets
• Chemical process safety control and SIL safety instrumented systems
• Offshore platform and pipeline safety protection control systems
• Spare replacement and maintenance of Honeywell Safety Manager racks
