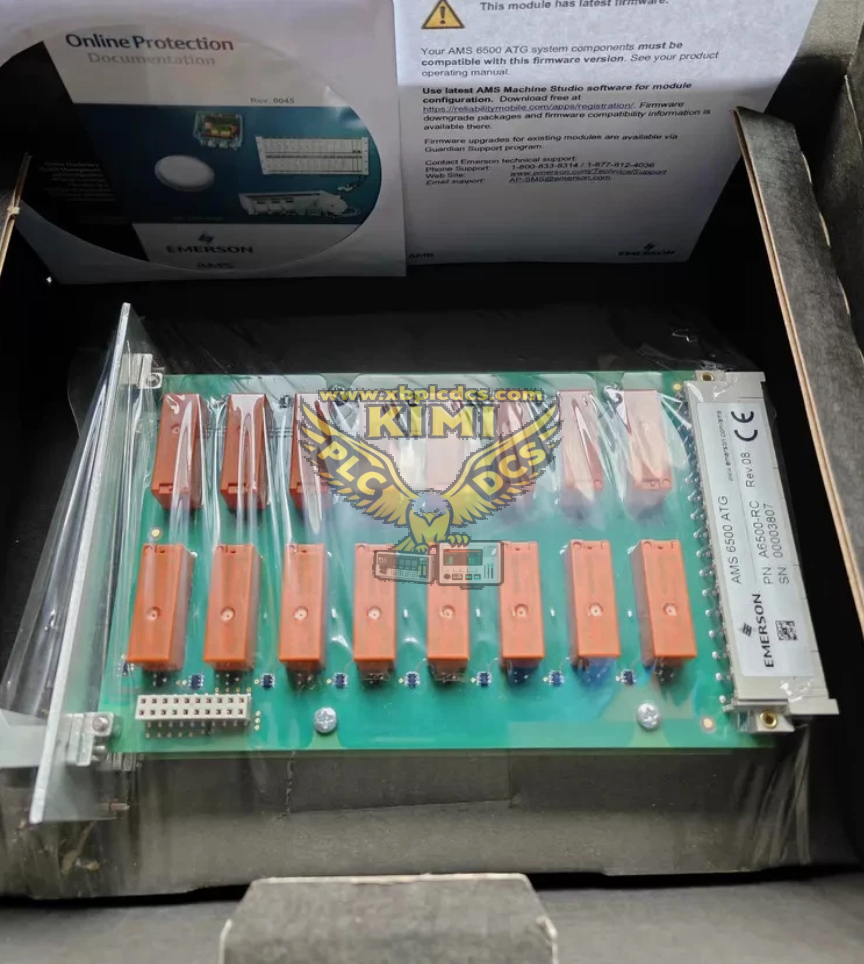

Emerson A6500‑UM (0020007383) Universal Measurement Card for AMS 6500 ATG

Product Description

A6500‑UM, part number 0020007383, is a dual‑channel universal measurement card belonging to Emerson AMS 6500 ATG online machinery protection and condition monitoring system. This plug‑in 3U module is installed in A6500‑xR system rack, supporting multiple sensor types including eddy‑current probe, piezoelectric accelerometer, seismic velocity sensor, Hall‑effect keyphasor and LVDT (with A6500‑LC accessory). Besides two dynamic sensor input channels, it integrates 5 digital inputs and 6 digital outputs, delivers 0/4‑20 mA isolated analog outputs, communicates via internal RS‑485 bus to A6500‑CC communication card for Modbus TCP/RTU host connection. It performs real‑time acquisition of shaft vibration, bearing vibration, rotational speed, displacement and dynamic pressure for critical rotating equipment protection.

Product Features

• Dual configurable dynamic measurement channels, support independent or combined measurement mode for various rotating‑machine sensors
• Multi‑sensor compatibility: eddy‑current, piezo accelerometer, seismic, Hall‑effect keyphasor, low‑frequency vibration and LVDT signals
• On‑board 5 digital inputs, 6 solid‑state digital outputs for status acquisition and alarm/trip control logic
• Isolated 0/4‑20 mA analog output channels for transmitting processed measurement values to DCS/PLC systems
• Internal RS‑485 rack bus communicates with A6500‑CC Com Card, supports Modbus RTU / Modbus TCP protocol for SCADA integration
• Front‑panel LED indicators: OK and Alarm for fast on‑site module health diagnosis
• Comprehensive hardware self‑diagnosis for power supply, channel fault, sensor open‑circuit and short‑circuit detection
• Hot‑swappable module design; can be replaced within A6500‑xR rack without powering down the whole rack
• Wide operating temperature range 0 °C ~ +60 °C, high EMC immunity for turbine‑hall and industrial cabinet environment
• Supports alarm threshold configuration, waveform capture and trend data storage for machinery diagnostic analysis

Application Scenarios

• Vibration and displacement protection monitoring for gas turbine, steam turbine in power generation combined‑cycle plants
• Compressor, pump and fan condition monitoring in petrochemical and refinery process units
• Rotating‑machinery overspeed, keyphasor, shaft relative‑vibration and bearing‑vibration measurement
• Off‑shore and on‑shore oil‑gas critical rotating equipment online protection system
• Plant‑wide asset health monitoring integrated with DCS and condition‑monitoring host software
• Spare‑part replacement and system expansion for existing installed AMS 6500 ATG monitoring racks

Common Problems & Troubleshooting

• Module OK LED off, cannot initialize: Verify A6500‑xR rack power supply; re‑seat A6500‑UM module; clean backplane connector gold‑fingers; check part number 0020007383 hardware compatibility.
• Alarm LED on, sensor channel no measurement reading: Inspect sensor cable open‑circuit / short‑circuit; verify transducer power supply; check sensor type setting matches actual connected hardware; perform channel loop test.
• Unstable, fluctuating vibration measurement value: Check sensor mounting looseness; inspect cable routing away from high‑power motor cables; verify shielding and cabinet grounding; check connector oxidation under cabinet vibration.
• No Modbus data transmitted to host system: Confirm A6500‑CC communication card normal operation; inspect internal rack RS‑485 bus connection; verify Modbus slave address and baud‑rate parameter configuration.
• Analog 4‑20 mA output incorrect or frozen: Check output loop wiring and load impedance; verify measurement channel alarm status; re‑download module configuration parameters.
• Digital input / output abnormal response: Check field loop 24 VDC power supply; inspect field‑side short‑circuit; verify logic configuration inside AMS 6500 engineering software.
• Spare‑part replacement mismatch risk: Use exact part number A6500‑UM 0020007383; do not substitute with other A6500 series variant cards without project configuration modification; strictly follow anti‑static procedure during module replacement.
