Emerson A6500‑RC (0020007383) System Relay Card for AMS 6500 ATG

Product Description

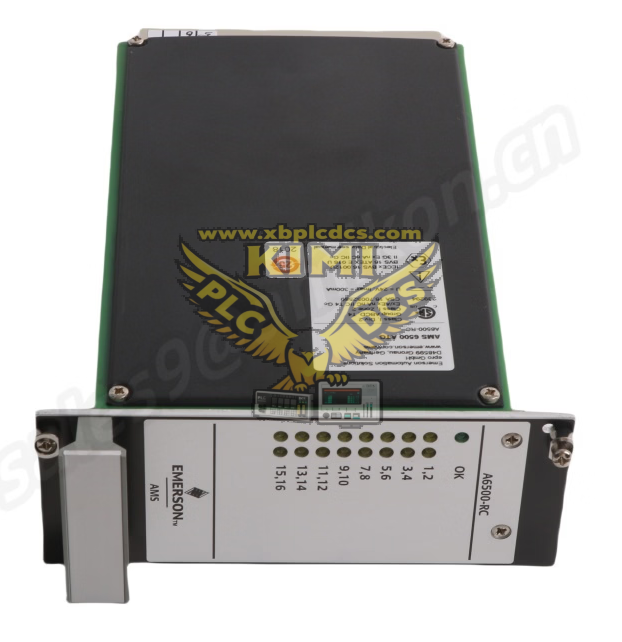

A6500‑RC, part number 0020007383, is a programmable system relay card for Emerson AMS 6500 ATG machinery protection system conforming to API‑670 standard. Installed in dedicated slot of A6500‑xR rack, it receives COK, Alert and Danger binary status signals from all measurement cards via rack backplane bus, provides 66 galvanic‑isolated digital inputs and 16 SPDT relay outputs for flexible boolean logic processing. Users configure AND, OR, XOR, flip‑flop and time‑delay logic through AMS engineering software, to generate trip and alarm relay outputs for critical rotating machinery protection loops. Hot‑swap capable, it delivers hard‑wired relay interface to ESD, DCS and plant alarm annunciation systems in turbine‑hall cabinets.

Product Features

• 66 channels galvanically‑isolated 24 VDC digital inputs, acquiring measurement‑card health, alert and danger status over backplane
• 16‑channel SPDT mechanical relay outputs; each relay supports NO/NC configurable, rated 2 A @48 VAC/32 VDC contact load
• Rich programmable logic library: AND, OR, XOR, SR‑flip‑flop, MooN voting, adjustable time‑delay from 0‑1000 seconds
• Front‑panel LED indicators: green system OK LED plus 16 yellow LEDs showing real‑time relay status for on‑site diagnostics
• Backplane bus automatically collects status from all A6500‑UM measurement cards without extra field wiring
• Hot‑swappable module, replacement without powering down the whole A6500‑xR rack
• Compliant with API‑670 machinery protection requirements for turbine and compressor safety trip application
• Wide operating temperature range ‑20 °C ~ +70 °C, high vibration and shock resistance for turbine‑hall environment
• Supports redundant relay configuration for high‑safety trip‑loop design
• Logic configuration downloaded via AMS 6500 engineering software; configuration stored locally on‑card

Application Scenarios

• Gas turbine and steam turbine machinery protection trip‑alarm logic for combined‑cycle power plant
• Refinery and petrochemical critical compressor protection system for vibration‑based alarm and hard trip output
• Hydro‑turbine large rotating‑equipment safety monitoring conforming to API‑670 standard
• Hard‑wired relay interface between AMS 6500 ATG monitoring rack and plant ESD / DCS / alarm annunciator panel
• Complex multi‑channel voting‑logic implementation for machinery safety interlock loops
• Spare‑part replacement and system expansion for existing AMS 6500 ATG installed base

Common Problems & Troubleshooting

• System OK LED off, module not initialized: Check rack power supply; re‑seat A6500‑RC module; inspect backplane connector gold‑finger contamination; confirm part‑number 0020007383 hardware compatibility.
• No relay output when alarm condition occurs: Verify logic configuration and time‑delay setting in engineering software; confirm input status correctly received from measurement cards over backplane; check relay contact wiring and load power supply.
• Relay cannot actuate or contact failure: Inspect actual load does not exceed 2 A contact rating; check relay coil power; test contact continuity; replace card if internal relay burnout occurs due to over‑current.
• Relay false triggering: Review boolean‑logic configuration; adjust time‑delay filter setting; improve cabinet grounding and noise suppression for turbine‑hall heavy‑interference environment.
• Logic download failure: Verify engineering software version compatibility; check rack internal backplane bus health; re‑perform configuration download to A6500‑RC card.
• Intermittent relay operation: Inspect cabinet vibration‑induced loose rack connector; check ambient temperature not exceeding upper limit +70 °C; check relay terminal screw torque.
• Spare‑part replacement mismatch risk: Use exact part‑number A6500‑RC 0020007383; do not substitute with A6500‑UM measurement card; strictly follow anti‑static procedure during hot‑swap maintenance.
