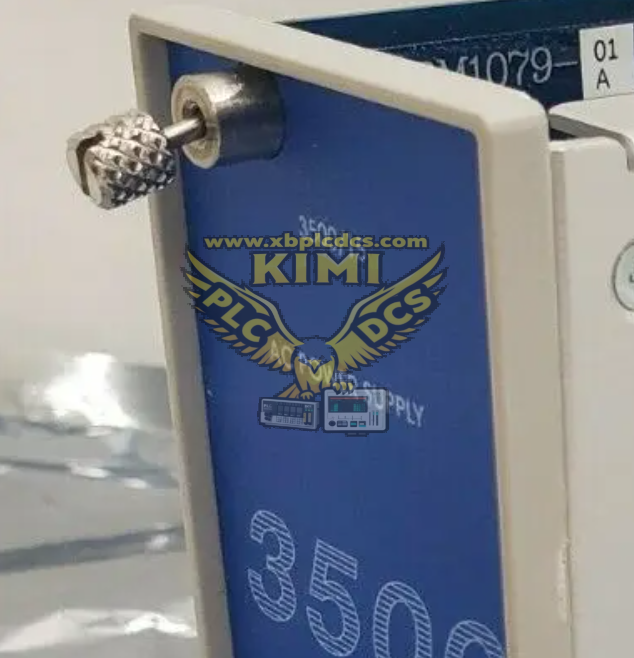

Bently Nevada 3500/15-04-00-02 Product Document

1. Product Description

The 3500/15-04-00-02 is a high-performance AC Power Input Module belonging to the Bently Nevada 3500 Machinery Monitoring System series. It is a rack-mountable hot-swappable I/O module designed to supply stable AC power to the entire 3500 monitor rack. The suffix codes define its specifications: 04 = 110/240 VAC wide input range, 00 = standard chassis configuration, 02 = dual redundant power supply circuit. This module integrates overvoltage, undervoltage, surge and short-circuit protection circuits, with isolated power output for all internal monitoring cards, complying with industrial IEC and API 670 machinery protection standards.

2. Core Product Functions

• Dual redundant AC power input conversion, supporting automatic seamless switchover between two independent AC power sources without system downtime.
• Wide-range AC voltage conversion (85–264 VAC) to regulated low-voltage DC power for all 3500 series monitoring, relay and communication modules.
• Built-in multi-layer fault protection: over-current, over-voltage, under-voltage, reverse connection and transient surge suppression to protect rack hardware.
• Real-time power status monitoring; transmits power health, input loss and fault alarm signals to the 3500 system processor for local HMI and remote DCS/SCADA reporting.
• Hot-swap capability: can be removed or replaced while the monitoring rack remains powered online, eliminating plant shutdown for maintenance.
• Electromagnetic isolation between AC input and DC output to reduce industrial field noise interference to vibration, speed and position sensor signals.

3. Typical Application Scenarios

• Heavy-duty rotating machinery protection racks: steam turbines, gas turbines, centrifugal compressors, axial fans and large industrial pumps in power generation plants.
• Oil & gas upstream and downstream facilities: refinery compressors, pipeline booster pumps, offshore platform turbo equipment.
• Petrochemical and chemical plants: high-speed rotating reactors, blowers and process critical rotating equipment.
• Metallurgical industry: large rolling mill drive turbines, furnace exhaust fans and heavy rotating processing units.
• Mining industry: large mine ventilation fans, crushing unit drive compressors.
• Critical industrial sites requiring high availability: redundant power architecture for machinery safety monitoring systems to avoid false machine trips caused by power fluctuations.

4. Common Faults & Troubleshooting Issues

4.1 Input Power Loss Alarm

Symptom: Module fault LED lights red, system reports "AC Input Loss". Root causes: loose AC wiring terminals, blown external circuit breaker, unstable mains voltage outside 85–264VAC range, damaged power cable. Solution: Check power supply circuit continuity, tighten terminal blocks, verify site mains voltage, replace damaged cables.

4.2 Redundant Power Switch Failure

Symptom: Single power source only works, automatic switchover fails during primary power failure. Root causes: damaged internal redundant switching circuit, uneven voltage difference between two AC input sources exceeding 20V, corroded dual input terminals. Solution: Balance dual power supply voltage, clean terminal contacts, replace module if internal circuit damage is confirmed.

4.3 Overheat & Overload Alarm

Symptom: Module overheating, temperature fault alarm, intermittent rack module reset. Root causes: Insufficient rack ventilation, blocked cooling vents, overloaded rack with excessive monitoring cards, long-term high ambient temperature (>55°C). Solution: Clean rack ventilation filters, reduce total rack load, improve cabinet air conditioning, ensure clearance around rack vents.

4.4 Hot-Swap Abnormality

Symptom: System power flickers or temporary signal loss during module replacement. Root causes: Damaged module backplane connector, improper insertion angle during hot swap, dust accumulation on gold contact pins. Solution: Power down rack temporarily to clean backplane pins, follow official insertion operation guide, inspect backplane for bending pins.

4.5 Persistent Fault LED No Power Output

Symptom: Both AC inputs normal, but no DC power output to rack cards, fault indicator stays red. Root causes: Internal short-circuit protection lockout, failed power conversion circuit, internal fuse burnout. Solution: Isolate module from rack, reset power supply, replace the 3500/15 module if internal hardware failure is confirmed.
