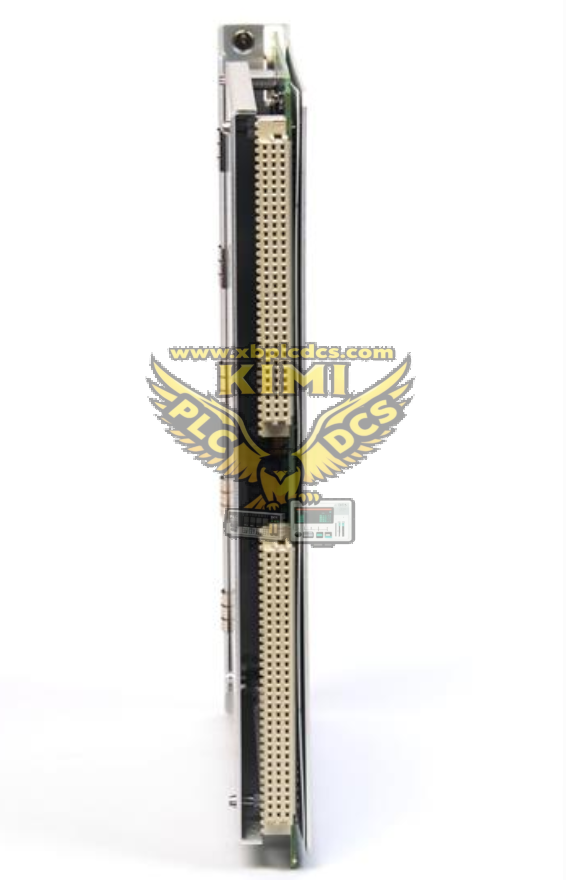

Bently Nevada 3500/60-01-01 Temperature Monitor Module

1. Product Description

3500/60-01-01 is a six-channel temperature monitoring card belonging to the Bently Nevada 3500 machinery protection system, compliant with API 670 and SIL 2 safety standards. This rack plug-in module supports mixed input of RTD and thermocouple sensors; the -01 variant stands for TC isolated version with 250 Vdc channel-to-channel galvanic isolation to eliminate ground loop and electromagnetic interference. It adopts single-slot hot-swappable design for the standard 3500 rack, powered by rack backplane 24 VDC bus. Equipped with front panel LED indicators for module health, communication and bypass status, it processes raw temperature signals and transmits digital data to the rack controller via internal backplane bus, without built-in 4-20mA recorder outputs (differentiated from 3500/61). The module uses industrial anti-corrosion PCB coating and works stably under -20°C ~ +70°C harsh industrial environments.

2. Core Product Functions

• 6 independent configurable channels, compatible with 3/4-wire Pt100 RTD and all standard thermocouple types (J/K/E/T/R/S/B/N) with built-in cold junction compensation
• 250 Vdc channel isolation for thermocouple circuits to block high-frequency interference from turbine excitation and high-voltage equipment
• Two-stage programmable alarm thresholds per channel: Alert and Danger, supporting absolute temperature alarm and differential temperature alarm for bearing metal monitoring
• Full sensor loop self-diagnosis, automatically detect open circuit, short circuit and sensor failure, and upload fault codes to upper monitoring system
• Supports Triple Modular Redundant (TMR) three-card voting architecture to avoid single module failure causing protection misoperation
• Hot-swap maintenance, replace module without shutting down the whole 3500 protection rack
• Digital temperature data transmission through rack backplane bus, interact with 3500/22 communication gateway to upload to DCS/SCADA via Modbus/OPC protocol
• Real-time temperature filtering to suppress signal fluctuation caused by equipment vibration and cable noise

3. Application Scenarios

• Thermal power plant steam turbine, gas turbine bearing metal temperature and generator stator winding temperature monitoring
• Oil & gas industry centrifugal compressors, reciprocating compressors, pump bearing temperature protection systems
• Offshore FPSO and drilling platform rotating machinery thermal monitoring and safety interlock
• Hydroelectric generating unit thrust bearing and guide bearing temperature online protection
• Chemical plant large fans, blowers and heavy-duty motor temperature early warning system
• Marine vessel propulsion turbine and auxiliary machinery temperature monitoring system

4. Common Troubles & Issues

• Sensor Open Circuit Alarm Continuously Triggered

  Cause: Broken field sensor cable, loose terminal wiring, damaged RTD/TC probe. Solution: Check cable continuity, re-tighten terminal blocks and replace faulty temperature sensor.

• Unstable Temperature Readings & Severe Signal Drift

  Cause: Unshielded sensor cables, poor cabinet grounding, damaged channel isolation circuit. Solution: Replace shielded thermocouple/RTD cables and reinforce protective ground connection.

• Module OK LED Off, Unrecognized by Rack Controller

  Cause: Dirty backplane golden fingers, abnormal rack 24V power supply, module hardware damage. Solution: Clean PCB contact fingers, test rack bus voltage and reinsert the module tightly.

• False High Temperature Alarms Without Actual Overheat

  Cause: Wrong sensor type configuration in rack software, incorrect cold junction compensation parameters. Solution: Reconfigure channel sensor model and recalibrate cold junction offset.

• TMR Voting Fault Alarm in Redundant Configuration

  Cause: Inconsistent alarm threshold parameters among three TMR modules, inconsistent channel wiring. Solution: Synchronize all module configuration parameters and unify field wiring standards.

• Intermittent Communication Loss Under Equipment Vibration

  Cause: Loose module locking buckle, aging internal solder joints. Solution: Lock module fixing screws and inspect internal circuit soldering points.
