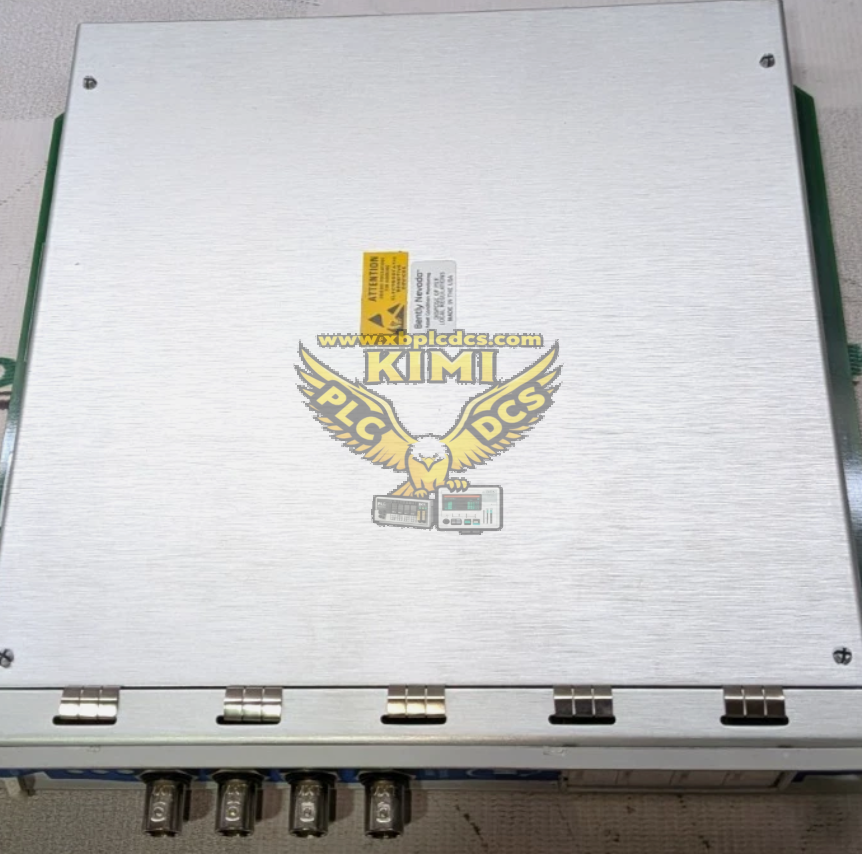

Bently Nevada 3500/42‑09‑R0 Proximitor / Seismic Monitor Module

Product Description

The 3500/42‑09‑R0 is a 4‑channel Proximitor / Seismic monitor module within Bently Nevada 3500 machinery protection rack system. It accepts input signals from eddy‑current proximity probes, velocity transducers and accelerometers, performs signal conditioning and computation for vibration and shaft‑position measurements. This module supports machinery protection alarm and trip logic, complies with SIL‑2 safety requirements, works cooperatively with 3500 rack configuration software for parameter setup, and delivers real‑time machinery health data for critical rotating equipment.

Product Features

• Four independent configurable measurement channels for proximity and seismic transducer inputs
• Supports radial vibration, thrust position, differential expansion, eccentricity, velocity and acceleration monitoring
• User‑programmable alarm and trip setpoints for machinery protection functions
• Hot‑swappable design, module replacement without shutting down the whole rack
• Compatible with 3300‑XL series proximity probe assemblies and seismic sensors
• Supports Keyphasor input for 1X / 2X amplitude and phase calculation
• On‑board LED indicators for channel status, alarm and fault diagnosis
• SIL‑2 certified for safety‑critical rotating machinery protection applications
• Communicate with 3500 rack and host system via backplane bus

Application Scenarios

• Turbine supervisory instrumentation (TSI) for steam turbine and gas turbine in power plants
• Centrifugal compressor monitoring and protection in petrochemical plants
• Large‑size pump, fan and turbo‑expander condition monitoring system
• Rotating machinery protection for oil & gas production facilities
• Heavy‑duty industrial equipment predictive maintenance solution
• Integrated into Bently Nevada 3500 rack for plant‑wide machinery protection system

Common Problems & Troubleshooting

• Module fault LED illuminated: Re‑seat the module firmly into rack slot; check rack power supply status; perform slot swap test to differentiate module fault versus backplane failure.
• Channel no reading or zero value: Inspect field transducer wiring, connectors and cable integrity; verify transducer type matches software channel configuration; check probe gap installation.
• Unstable or noisy measurement signal: Separate sensor cables from high‑voltage power cables; check for loose or contaminated connectors; verify cable strain‑relief installation.
• Unexpected alarm or false trip: Recheck alarm / trip setpoints in configuration software; confirm transducer calibration and target surface condition; check for ground‑loop interference.
• Keyphasor loss alarm: Check Keyphasor transducer and wiring; confirm Keyphasor module works normally in the 3500 rack.
• Configuration download failure: Verify rack communication connection; confirm hardware part‑number matches project configuration file.
