1. Product Description

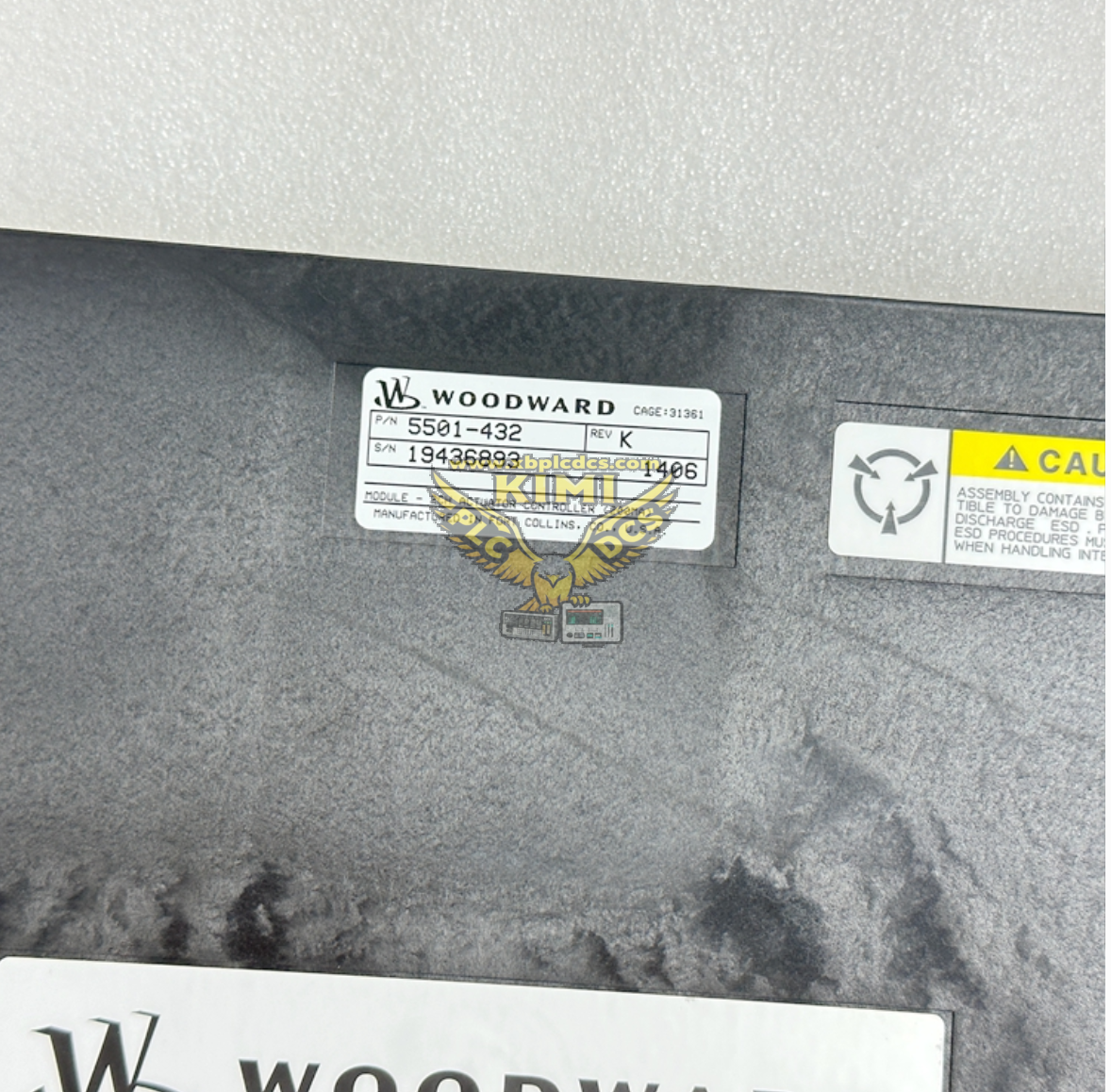

5501-432 is a dual-channel actuator control card belonging to Woodward NetCon / MicroNet Plus turbine control rack series, SIL2 safety certified. It is a rack hot-swappable Eurocard module used to drive hydraulic, pneumatic and proportional fuel/steam valve actuators. Each independent channel supports LVDT/RVDT position feedback transducers, with built-in high-speed PID closed-loop position regulation and PWM current output drive, maximum single-channel output current 200mA (peak 245mA). The module is powered by rack backplane 5VDC/24VDC bus, equipped with multi-channel signal isolation circuit to resist high electromagnetic interference in power plant cabinets. Front panel integrates fault LED indicators and multi-core signal terminals, matched perfectly with CPU5200 controller 5466-1045, speed card 5464-658, Bently 3500 TSI and GE Mark VIe unit control systems.

• Part Number: 5501-432, Series: Woodward MicroNet Plus / NetCon 5000
• Channel Configuration: 2 fully independent actuator control loops
• Drive Output: 0~200mA continuous, peak 245mA PWM current
• Position Feedback: Compatible with LVDT / RVDT linear displacement sensors
• Power Input: +5VDC 0.5A, +24VDC 1A from rack backplane
• Safety Certification: SIL2 for turbine safety interlock control
• Operating Temperature: -40℃ ~ +70℃ industrial cabinet range

• Installation: Standard rack slot, hot swap supported without system shutdown




2. Core Product Functions

1. Dual independent closed-loop position control: Receive valve position setpoint from system CPU, collect real-time LVDT/RVDT feedback signals, execute high-speed PID algorithm to adjust PWM drive current, precisely control fuel valve, steam valve and compressor anti-surge valve opening.
2. Built-in actuator full fault diagnosis: Continuously detect actuator coil open circuit, short circuit, feedback sensor disconnection, signal drift and over-current output; trigger fault alarm and position lock protection to avoid runaway valve risk.
3. Isolated anti-interference signal processing: Channel-to-channel galvanic isolation design eliminates ground loop interference generated by motors, inverters and high-voltage power cables, ensuring stable valve positioning in harsh industrial environments.
4. Online parameter tuning without shutdown: Adjust PID proportional, integral, differential gain, dead zone and limit parameters via Woodward configuration software during unit operation, no need to stop the whole control system.
5. Real-time data exchange with main CPU: Transmit actual valve position, actuator drive current and fault alarm codes to 5466-1045 CPU through rack backplane bus; upload operation data to HMI and DCS monitoring platform.
6. Valve travel limit & anti-surge interlock logic: Built-in upper/lower travel limit protection for each channel, support compressor anti-surge valve quick reset interlock when abnormal flow occurs.

3. Application Scenarios

• Gas turbine & steam turbine power plants: Fuel control valve, main steam valve, extraction valve closed-loop position control, matched with Woodward CPU5200 5466-1045 control system
• Oil & gas pipeline compressors: Anti-surge valve and throttle actuator precise regulation, cooperate with 5464-658 speed measurement module
• Offshore platform and marine generator units: Hydraulic actuator control under salt fog and strong electromagnetic interference environment (DNV certified)
• Industrial diesel generator sets and distributed power stations: Governor fuel rack actuator position control and load regulation
• Combined cycle power plant auxiliary unit control, integrated with Bently 3500 vibration monitoring system and GE Mark VIe DCS platform
• Chemical process plants: Reactor regulating valve, furnace air-fuel ratio proportional actuator closed-loop control
