Brief Product Description

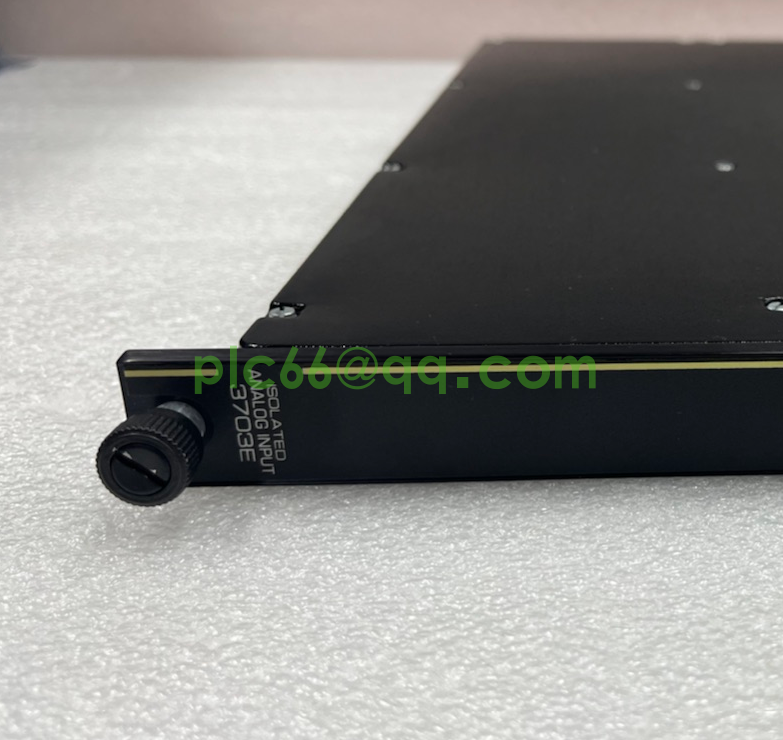

TRICONEX 3703E is a TMR‑based isolated analog input module for Tricon SIS safety instrumented systems, certified to IEC 61508 SIL 3 standard. It features 16 channels of fully‑isolated differential inputs, configurable for 0‑5V, 0‑10V voltage or 4‑20 mA current signals from field transmitters. Built‑in triple modular redundancy and mid‑value voting algorithm guarantee accurate signal acquisition even under single‑point hardware fault. Comprehensive per‑channel diagnostics, hot‑swap capability and robust industrial construction support continuous 24/7 operation in high‑risk process plants. It is widely adopted as a critical spare replacement component for maintenance and retrofit of legacy Tricon safety systems.

Core Product Functions

• 16 fully‑isolated differential analog input channels, configurable for voltage and current loop signals
• TMR triple modular redundancy with mid‑value selection voting to eliminate single‑point‑of‑failure risks
• High‑precision analog‑to‑digital conversion, delivering reliable measurement for pressure, flow and temperature transmitters
• Channel‑by‑channel continuous self‑diagnostics, detecting open‑loop, short‑circuit and internal circuit anomalies
• Front‑panel LED indicators showing module health, active status and individual channel fault conditions
• Supports hot‑swap replacement without system shutdown for reduced plant downtime during maintenance
• Isolation between field side and safety backplane suppresses common‑mode noise and cross‑channel interference
• Works with external termination panel for field wiring connection; mechanically keyed for anti‑mis‑insertion protection
• Seamless integration with Tricon controller and TriStation 1131 configuration software for system setup and troubleshooting
• SIL3 safety compliance for safety‑critical process interlock and emergency shutdown logic processing

Application Scenarios

• Oil & gas refinery, on‑site plant and offshore platform SIS / ESD emergency shutdown systems
• Petrochemical and chemical plant SIL3‑grade safety interlock and process monitoring cabinets
• Thermal power plant boiler, turbine safety protection and auxiliary process control racks
• Natural gas pipeline station and LNG plant safety instrumented control installations
• Process industry hazardous‑area analog signal acquisition from field transmitters and sensors
• Spare analog input module for maintenance, expansion and upgrade of existing Tricon SIS systems

FAQ (Frequently Asked Questions)

• Q: Individual channel reports fault but module remains running?
  A: Check field transmitter, loop wiring, open‑circuit or short‑circuit fault, termination panel connection and configured signal type mismatch.
• Q: Module fault LED triggers for the whole unit?
  A: Inspect backplane contact condition, rack power supply quality, hardware degradation or multiple‑channel simultaneous failures.
• Q: Can TRICONEX 3703E be hot‑swapped during system runtime?
  A: Yes, hot‑swap is supported. Follow site SIS maintenance procedures; relevant safety logic should be assessed before replacement.
• Q: Can this module work with non‑Tricon third‑party safety controllers?
  A: It is dedicated for Tricon SIS platform; TriBus backplane interface and TMR voting logic cannot adapt to other brands of systems.
• Q: Is TRICONEX 3703E available for brand‑new safety‑system construction?
  A: This legacy analog input module has reached end‑of‑life. Only surplus and fully‑tested refurbished units are supplied for existing‑site maintenance projects.
