1. Product Description

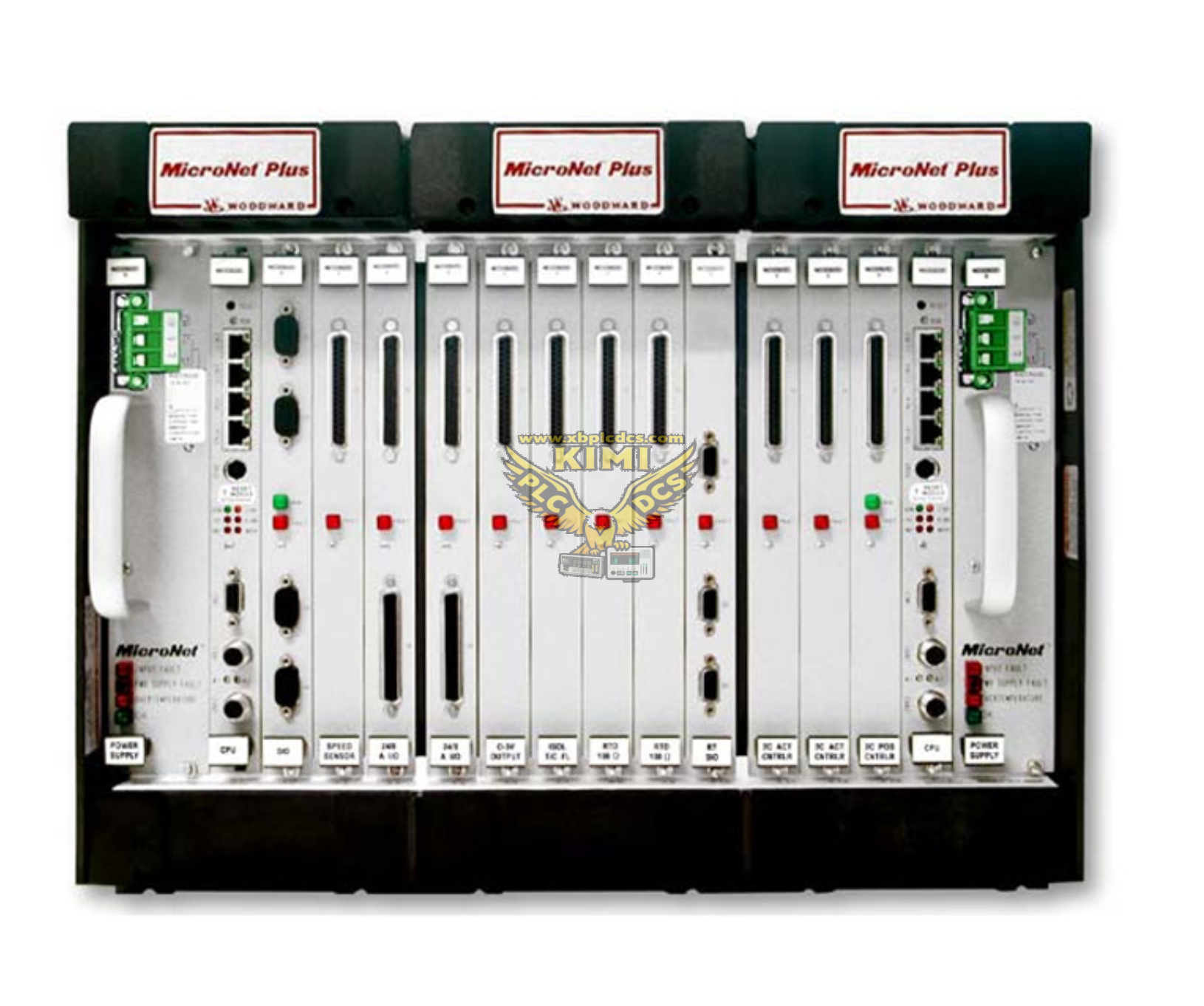

5466-1045 is the core CPU5200 controller module of Woodward MicroNet Plus turbine control series, a single-chassis standalone processor without expansion rack support. It adopts industrial 32-bit high-speed processor architecture, equipped with 64MB Flash firmware storage and 128MB DDR real-time data RAM, built-in SIL2 safety certification complying with IEC 61508 standard. The module is powered by 24VDC wide-range input (18~32VDC), supporting +24V remote reset signal. Front panel integrates LED diagnostic indicators, 1 general-purpose Ethernet port and 1 serial communication port for system data interaction. It complies with MIL-STD-810C shock resistance standard, operating stably under -40℃ ~ +85℃ harsh industrial cabinet environments, widely matched with Woodward 8405 series actuators, Bently 3500 TSI monitoring systems and GE Mark VIe control units for turbine unit integrated control.

• Part Number: 5466-1045, Model: MicroNet Plus CPU5200
• Memory: 64MB Flash + 128MB DDR RAM
• Power Supply: 18~32VDC nominal 24VDC
• Communication: 1×Ethernet, 1×Serial port, backplane internal bus
• Safety Level: SIL 2 certified for turbine safety interlock
• Operating Temperature: -40℃ ~ +85℃

• Limitation: Does not support external expansion chassis connection




2. Core Product Functions

1. Deterministic Turbine Closed-loop Control: Executes high-speed speed governing, load regulation, pressure control and reactive power adjustment logic for gas/steam/diesel generator sets, realizing stable unit output under variable load conditions.
2. Complete Safety Trip & Protection Logic: Integrated overspeed, over-temperature, low oil pressure and vibration interlock protection, triggers ESD trip signal when fault thresholds are exceeded to protect turbine and generator equipment.
3. Multi-device Data Communication: Ethernet port connects HMI, DCS and remote monitoring platform; serial port communicates with field transmitters, vibration monitoring modules and actuators to upload real-time operating parameters and fault alarms.
4. Remote Reset & Online Configuration: Accepts external 24V remote reset signal; supports online program download, parameter calibration and firmware upgrade via Woodward configuration software without powering off the whole system.
5. Real-time Fault Diagnosis & SOE Recording: Built-in self-test circuit to detect CPU operation, memory, communication bus and I/O channel faults; stores sequence of event records for post-fault troubleshooting and analysis.
6. Single-chassis I/O Resource Management: Schedules all analog/digital I/O boards installed in the same chassis, processes field sensor signals and outputs control drive commands to hydraulic actuators and solenoid valves.

3. Application Scenarios

• Small & medium gas turbine generator sets, industrial steam turbine power stations
• Oil & gas pipeline compressor units, offshore platform power generation control cabinets
• Factory self-contained diesel generator power plants and distributed standby power systems
• Marine vessel synchronous generator speed & load control (DNV GL certified)
• Combined cycle power plant auxiliary unit control, matched with Bently 3500 TSI vibration monitoring system
• Industrial compressor, blower and pump group automatic control with safety interlock protection
