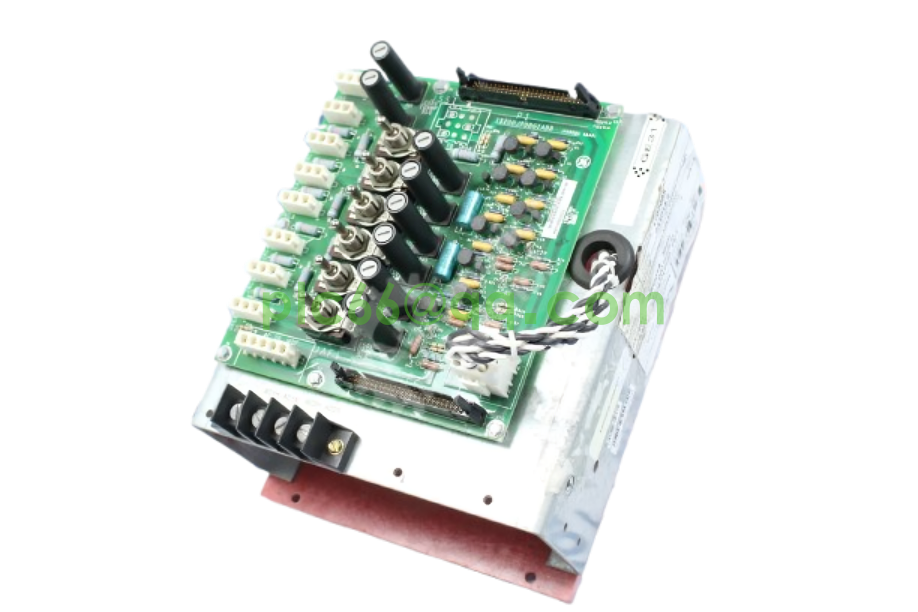

IS2020JPDBG01 is an AC power distribution module specially designed by General Electric for the Mark VI system. Mark VI is part of the Speedtronic gas/steam turbine management system series, which originated from Mark I in the 1960s.

Mark VI is the third system in the Speedtronic system to adopt the TMR (Triple Module Redundancy) architecture, although the system also offers a simplex version.

The IS2020JPDBG01 is compatible with P1 and P2 feedback signal connectors on JPDS, JPDF and JPDE boards, as well as JPDM boards connected to PPDA I/O packages. This module is installed in the cabinet used by PDM.

It is grounded through a metal mounting bracket fixed on the metal plate at the bottom of the module.

The IS2020JPDBG01 has two AC power supplies, which are connected to the Ride side of the module via a power strip.

The power supply is delivered to the AC line filter assembly located beneath the IS200JPDB PCB, and these components are connected to the J1 connector on the circuit board through the wiring harness.

This module also uses an IS200JPDBH2A circuit board with an AC power selector.

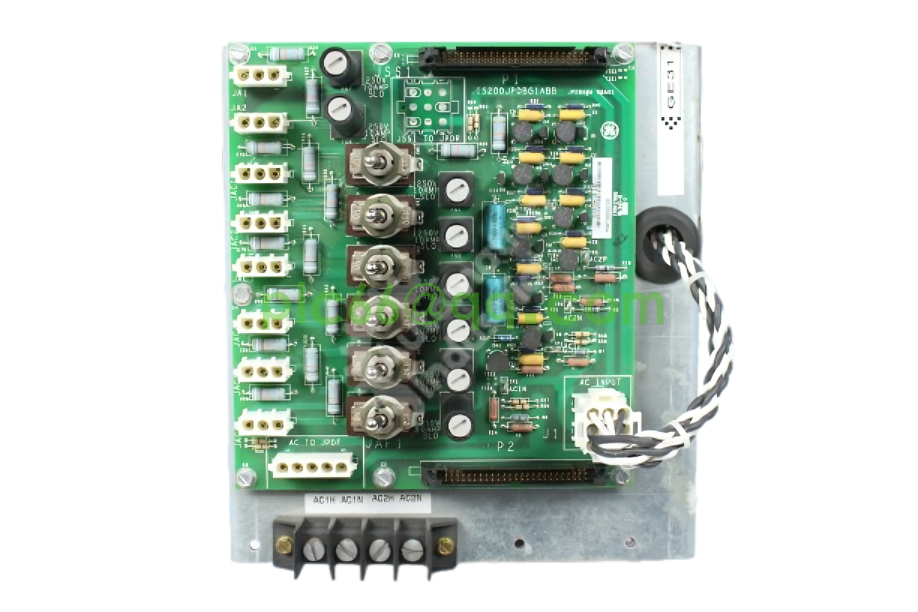

The IS2020JPDBG01 features multiple input and output interfaces, including one terminal block (TB1), two 9-bit Mate-n-Lok connectors, one 5-bit Mate-n-Lok connector,

six output connectors with switches and fuses, and two 50-pin diagnostic ribbon cable connectors. The diagnostic procedure of the circuit board is carried out through P1 and P2 connectors. This module has no configuration options
