1. Product Description

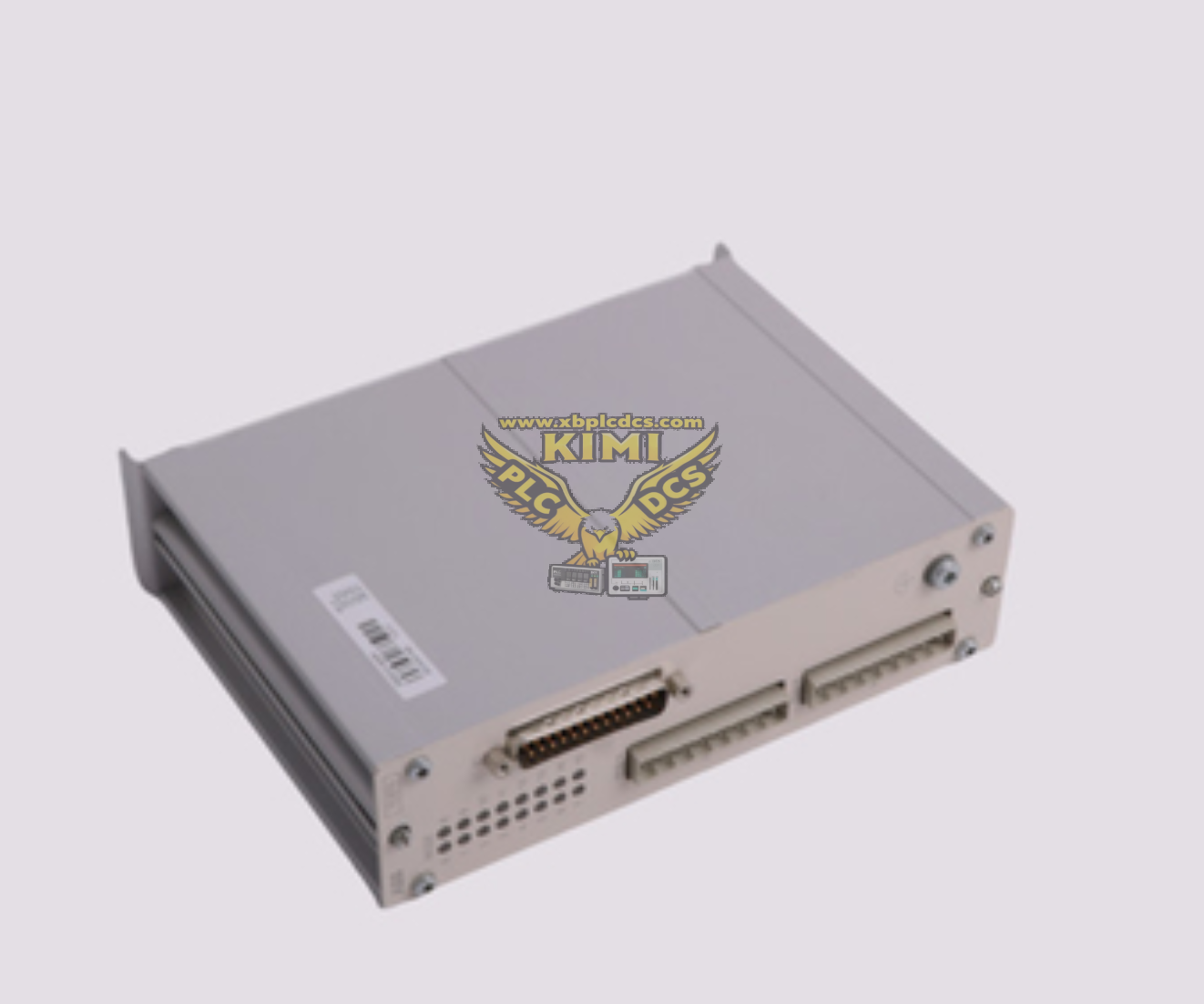

3BSE022179R1 is the part number of ABB TC561V2 optical modem, a rack-mounted fiber optic communication expansion module designed for DS100 PBC expansion bus. It converts electrical bus signals into optical signals for long-distance, anti-interference transmission between controller racks, supporting dual fiber 50/125μm optical cables. The module features metal housing, front panel LED status indicators, fiber optical ports and terminal block wiring terminals, and is installed in standard ABB automation rack slots. It is not restricted by the RoHS directive 2011/65/EU, with wide industrial operating temperature range and strong electromagnetic interference resistance for industrial control cabinets.

• Model: TC561V2, Part No.: 3BSE022179R1
• Bus Compatibility: DS100 PBC expansion bus
• Optical Cable Support: Dual 50/125μm multimode fiber
• Installation: Standard rack plug-in type
• Interface: Fiber optical port + signal terminal block + expansion bus connector

• Operating Temperature: -20℃ ~ +65℃




2. Core Product Functions

1. Electrical-optical signal conversion: Convert DS100 PBC electrical bus signals to optical fiber signals, realize long-distance interconnection between separated control racks, eliminate signal attenuation caused by long copper cables.
2. Strong anti-EMI interference: Optical transmission completely isolates electrical interference from high-power equipment such as inverters, motors and power circuits, ensuring stable bus communication in high-noise industrial sites.
3. Rack activation & configuration management: Complete remote rack activation by writing specified address parameters, support virtual rack monitoring and expansion bus signal distribution across multiple racks.
4. Real-time bus status monitoring: Front panel LED indicators display power status, fiber link status and bus communication faults, quickly locate link disconnection or signal loss problems.
5. Multi-rack system expansion: Realize distributed expansion of DCS/PLC control system, expand the number of I/O racks without loss of communication real-time performance.
6. Hot swap compatible rack design: Matched with ABB standard automation racks, support non-stop maintenance replacement of the modem module in partial system scenes.

3. Application Scenarios

• Thermal power & gas turbine power plant DCS systems: Connect separated control racks between boiler room, turbine room and auxiliary workshop to isolate high-voltage electromagnetic interference.
• Petrochemical refining plants: Distributed control system long-distance rack interconnection for reactor, pipeline and compressor control cabinets.
• Metallurgical rolling mills: Anti-interference fiber communication between main control rack and on-site remote I/O racks near high-current rolling equipment.
• Water treatment & hydropower stations: Long-distance signal transmission between central control room and on-site equipment racks.
• Offshore energy platforms: Fiber expansion bus connection for marine distributed automation control systems, resisting marine salt fog and electromagnetic interference.
• Matched with ABB UNITROL excitation regulators, S800 I/O modules, GE Mark VIe and Bently 3500 TSI systems for complete unit monitoring.
