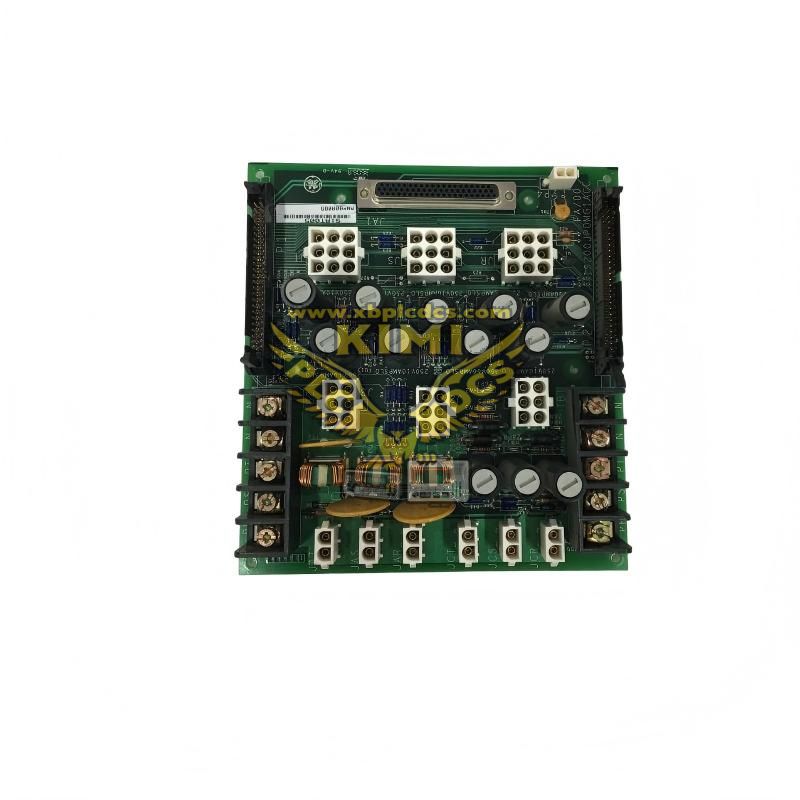

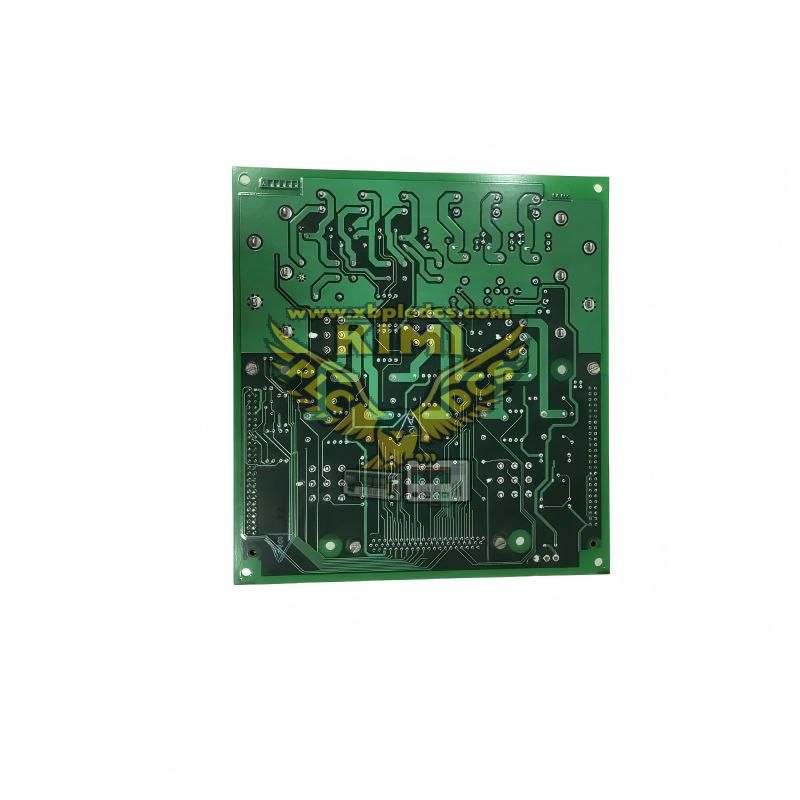

GE IS200JPDMG1ACC S1AT005-01 Jumper Power Distribution Module (JPDM)
Protected 28V DC Power Distribution for Mark VIe Turbine Control System I/O Packs & Hazardous Area Applications
1. Core Product Overview
The GE IS200JPDMG1ACC S1AT005-01 is a Jumper Power Distribution Module (JPDM) specifically engineered for the Mark VIe Speedtronic turbine control system, a core component for reliable power distribution in gas/steam turbine and industrial automation environments. It converts and distributes 28V DC control power from a 125V DC battery system (or 120/240V AC with converter) to individual I/O packs, offering dedicated protected power channels to ensure stable operation of control circuits. The module integrates 24 varistors and 24 two - position plugs (3 rows × 8) for flexible circuit configuration, and provides short - circuit protection (≤20A) and individual fuse protection for each output to prevent cascading failures. It is compliant with Class I, Div 2 (Groups A - D) and ATEX hazardous area standards, making it suitable for oil & gas, petrochemical, and power generation applications with explosive atmosphere risks.
• Core Role: Protected 28V DC power distribution to Mark VIe I/O packs; short - circuit/fuse protection; hazardous area power safety; turbine control system power resilience
• Model Info: IS200JPDMG1ACC (base part number); S1AT005-01 (revision code); Jumper Power Distribution Module (JPDM); Mark VIe turbine control compatible
• Key Specs: 28V DC output; 125V DC input (battery) / 120/240V AC (with converter); 24 protected channels; ≤20A short - circuit protection; -40°C~+70°C operating temp; DIN - rail mounting
• Reliability: UL/ATEX HazLoc compliant; varistor surge protection; individual fuse per channel; IEC 61000 - 4 EMC immunity; Mark VIe system redundancy support
2. Power Distribution & Protection Features
The IS200JPDMG1ACC S1AT005-01 distributes 28V DC power to up to 24 I/O pack channels, with each channel featuring a two - position plug for easy circuit isolation during maintenance. It uses J1/J1X connectors for daisy - chaining multiple JPDM boards, while limiting input current to the first JPDH J1 plug's rating to ensure system safety. The module includes 24 varistors for surge protection against voltage spikes from grid fluctuations or lightning strikes, and individual fuses (replaceable) for overcurrent isolation to avoid single - channel faults affecting the entire system. It supports redundant power input from dual 125V DC battery systems, enhancing power supply resilience in critical turbine control applications. The 28V DC output is regulated to ±1% tolerance, ensuring stable power for sensitive Mark VIe I/O electronics and communication modules.
• Power Routing: 24 isolated 28V DC channels; J1/J1X daisy - chain connectivity; dual power input for redundancy; 125V DC battery compatibility; 28V DC precision regulation
• Protection Mechanisms: ≤20A short - circuit protection; varistor surge suppression; individual channel fusing; reverse polarity protection; overvoltage/undervoltage monitoring
• Maintenance Design: Two - position channel plugs; hot - swap compatibility (with Mark VIe system); visual fuse status indicators; quick fault isolation; reduced downtime
• Mechanical: DIN - rail mounting; panel - mount option; compact PCB design (≈200×150×50mm); weight ≈0.5kg; industrial - grade enclosure
3. Hazardous Area Compliance & Safety
The IS200JPDMG1ACC S1AT005-01 meets UL 913 and IEC 60079-11 standards for intrinsic safety in Class I, Div 2 and ATEX Zone 2 hazardous locations, limiting energy to safe levels in explosive atmospheres. Each channel has galvanic isolation to prevent ground loops and cross - channel interference, and the module’s power distribution architecture avoids single - point failures that could compromise safety. It integrates thermal shutdown protection to prevent overheating during overloads, and its enclosed PCB design protects against dust and moisture (IP20 rating) in control cabinets. Safety certifications include CE, UL, and RoHS, ensuring compliance with global industrial safety and environmental regulations.
• Hazardous Area Ratings: Class I, Div 2 (A - D); ATEX Zone 2; UL 913/IEC 60079-11 compliant; explosive atmosphere safety
• Isolation & EMC: Galvanic channel isolation; ground loop prevention; IEC 61000 - 4 EMC immunity; noise - free power distribution; signal integrity protection
• Safety Certifications: CE; UL; RoHS; IEC 61010 - 1 electrical safety; IEC 60068 environmental testing; global industrial compliance
• Thermal & Physical Safety: IP20 protection; thermal shutdown; dust/moisture resistance; industrial temperature range (-40°C~+70°C)
4. System Integration & Industrial Adaptation
The IS200JPDMG1ACC S1AT005-01 seamlessly integrates with the GE Mark VIe Speedtronic turbine control system, working with 3500 machinery protection modules, I/O packs, and redundant power supplies for end - to - end control power management. It uses internal terminations and J1/J1X daisy - chain connectors to simplify cabinet wiring and reduce installation time, with compatibility for Mark VIe local power distribution boards (LPD) and I/O chassis. The module operates on 28V DC output (typical 7.5W power consumption) and supports redundant power input from dual 125V DC battery banks to ensure uninterrupted operation during primary power failures. It is ideal for gas/steam turbines, generators, compressors, and critical rotating equipment in power generation, oil & gas, and petrochemical sectors, where reliable power distribution is essential for turbine safety and efficiency.
• Mark VIe Compatibility: Works with I/O packs, 3500 monitoring modules, redundant power supplies, and Speedtronic control logic; plug - and - play integration
• Wiring & Installation: J1/J1X daisy - chain; internal terminations; DIN - rail mounting; panel - mount adapter; 125V DC battery connection guidelines
• Power Resilience: Dual battery input support; redundant power distribution; uninterrupted I/O power; turbine control fault - tolerant design
• Environmental Adaptation: -40°C~+70°C operating temp; 5–95% non - condensing humidity; vibration (5–50Hz, IEC 60068); shock (15g, IEC 60068); industrial durability
5. Typical Applications & Quality Assurance
Key Industrial Sectors: Power generation (gas/steam turbines); oil & gas (upstream/midstream); petrochemical; chemical processing; industrial energy systems; critical infrastructure.
Core Use Cases: Turbine control power distribution; I/O pack protected power; hazardous area power safety; redundant power backup; control cabinet power management; predictive maintenance support.
Integration Notes: Compatible with Mark VIe RIM (Rack Interface Module) and I/O chassis; requires 125V DC battery system or AC - DC converter; J1/J1X daisy - chain max 3 modules; follow UL/ATEX wiring for hazardous areas.
Quality & Warranty: GE genuine module; factory - tested for Mark VIe compatibility; 24 - month standard warranty; technical support for power system configuration, hazardous area compliance, and JPDM daisy - chain setup.
YMGK Purchase Information
This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.
One-Stop Global Industrial Product Procurement
Sales Manager: KI MI
WeChat: 18059884790
- Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
- Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
- Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
- Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
- Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
For additional inquiries, reach out to us at any time.
