ABB CP6415 1SAP541510R0001 15-inch HMI Control Panel--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

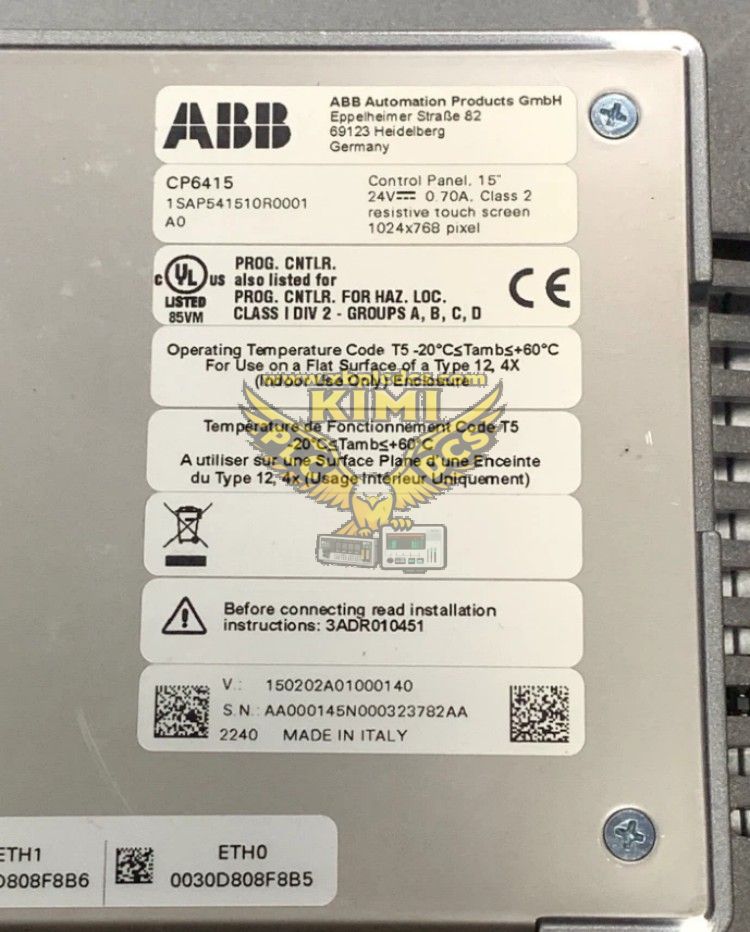

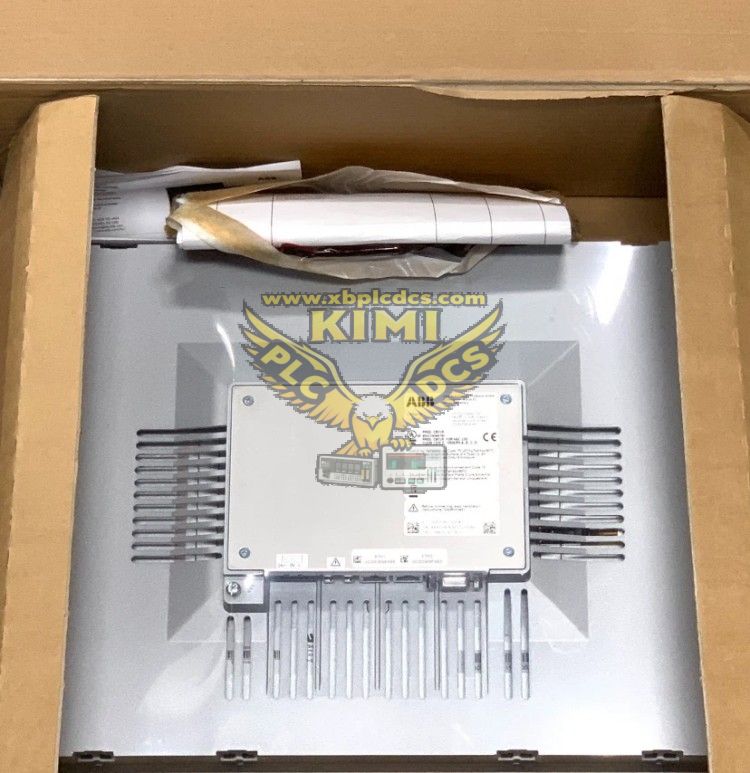

ABB CP6415 1SAP541510R0001 15-inch HMI Control Panel
CP600 2nd Gen HMI for Industrial Automation Monitoring & Control
1. Product Overview
The ABB CP6415 (Ordering Code: 1SAP541510R0001) is a 15-inch HMI control panel from the CP600 2nd Generation series, engineered for seamless human-machine interaction in industrial automation environments. It features a 1024×768 resistive TFT touch screen with 64K colors, a Chromium Browser for web-based visualization, and an ARM Cortex-A8 1 GHz processor for responsive operation. Optimized for PB610 applications, it integrates Industrial Ethernet, USB, RS-232/485, and an SD card slot for flexible connectivity, enabling real-time monitoring of DCS, PLC, and motion control systems, rapid parameter adjustment, and efficient fault diagnostics. With IP66 front/IP20 rear protection, a wide operating temperature range, and robust construction, it excels in harsh industrial settings, enhancing operational efficiency and reducing downtime in manufacturing, energy, and process industries.
产品型号:
CP6415
产品ID:
1SAP541510R0001
ABB型号名称:
CP6415
欧洲商品编号(EAN):
4013614553264
目录说明:
Control panel. 15" TFT touch screen, 64 K colors, 1024 x 768 pixel, Chromium Browser (CP6415)
详细描述:
CP6415: CP600 Control panel. 15" TFT touch screen, 64 K colors, 1024 x 768 pixel, Chromium Browser. PB610 applications.
2. Key Technical Specifications
• Brand & Model: ABB CP6415 (Ordering Code: 1SAP541510R0001)
• Product Type: 15-inch HMI Control Panel (CP600 2nd Generation)
• Display: 15" TFT Resistive Touch Screen, 1024×768 Pixels, 64K Colors
• Processor: ARM Cortex-A8, 1 GHz
• Memory: RAM 512 MB, Flash 4 GB
• Software: Chromium Browser, PB610 Application Support
• Interfaces: Industrial Ethernet, USB, RS-232, RS-485, SD Card Slot
• Power Supply: 24 VDC (18-32 VDC Operating Range)
• Protection Rating: IP66 (Front), IP20 (Rear)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Dimensions: 38.1 cm × 28.6 cm × 10.2 cm (15" × 11.26" × 4.02")
• Weight: Approx. 3.19 kg (7.03 lb)
• Mounting: Panel-Mounted (Standard Cutout)
• Certifications: CE, UL, cUL, RoHS
3. Core Features
• High-Resolution Display: 1024×768 pixels for clear visualization of complex process data.
• Web-Based Visualization: Chromium Browser enables remote monitoring and web application access.
• Versatile Connectivity: Multiple interfaces for seamless integration with industrial control systems.
• Robust Performance: ARM Cortex-A8 processor ensures responsive operation and multitasking.
• Durable Design: IP66 front protection resists dust, water, and chemical exposure.
• Flexible Mounting: Standard panel cutout for easy installation in control cabinets.
• Extended Temperature Range: Operates reliably in extreme industrial environments.
• PB610 Optimization: Tailored for ABB's PB610 applications, enhancing HMI functionality.
4. Typical Applications
• Manufacturing Lines: Real-time monitoring and control of assembly, packaging, and material handling systems.
• Process Industries: Visualization and operation of DCS/PLC-based process control in chemical, petrochemical, and pharmaceutical plants.
• Energy Sector: Monitoring of power generation equipment, including turbines, boilers, and switchgear.
• Motion Control: Interface for ABB drives and motion controllers in robotics and CNC machinery.
• Water & Wastewater: Management of treatment processes, pump stations, and distribution networks.
• Building Automation: Control of HVAC, lighting, and security systems in large industrial facilities.
5. Installation & Maintenance
Installation Steps
• Mounting: Secure the panel in a control cabinet using the standard cutout; ensure proper ventilation.
• Wiring: Connect 24 VDC power (18-32 VDC) and communication cables (Ethernet, serial).
• Configuration: Set up network parameters, install PB610 applications, and configure user access.
• Testing: Verify display responsiveness, communication links, and application functionality.
Maintenance Tips
• Daily: Wipe the front screen with a soft, lint-free cloth to remove dust and debris.
• Weekly: Inspect cables and connectors for damage or loose connections.
• Monthly: Check power supply voltage and ensure proper ventilation to prevent overheating.
• Quarterly: Update software/firmware and back up configuration data to an SD card.
• Annually: Perform a full system check, including touch screen calibration and interface testing.
ABB型号名称:
CP6415
周围环境温度:
Operation -20 … +60 °C
内深 (t2):
40 mm
CN8:
85371091
原产地:
Italy
United States
Germany
India
海关关税号:
85371091
符合性声明 - CE:
防护等级:
Front IP66
显示器类型:
TFT Resistive Touch
欧洲商品编号(EAN):
4013614553264
e级:
27-33-02-01
ETIM 10:
EC001412 - Graphic panel
ETIM 7:
EC001412 - Graphic panel
ETIM 8:
EC001412 - Graphic panel
ETIM 9:
EC001412 - Graphic panel
外形尺寸:
Undefined
功能:
15" TFT touch screen, 64 K colors, 1024 x 768 pixel, Chromium Browser
毛重:
3.5 kg
输入电压类型:
DC
发票说明:
Control panel. 15" TFT touch screen, 64 K colors, 1024 x 768 pixel, Chromium Browser (CP6415)
按订单生产:
否
存储容量:
150000 kB
最小起订量:
1 piece
模块功能:
Control panel
Number of Display Languages:
18
硬件接口数量:
Industrial Ethernet 2
Other 1
Parallel 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 2
Wireless 0
PROFINET 0
订单倍数:
1 piece
1级包装长度:
510 mm
1级包装 EAN:
4013614553264
1级包装高度:
145 mm
1级包装单元:
1 箱
1级包装宽度:
410 mm
产品系列:
CP6415
产品:
Control Panels
产品净深:
47 mm
产品净高:
307 mm
产品净重:
3.19 kg
产品净宽:
392 mm
产品应用类型:
PLC-CP600
仅报价:
否
REACH Date:
20241206
REACH Declaration:
REACH Information:
True - contains substances > 0.1 mass percentage
RoHS信息:
RoHS状态:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
9d16d56e-059a-4654-b833-28272beaa3b1 Germany
屏幕颜色:
65536 Colors
屏幕分辨率:
1024 x 786 pixel
屏幕尺寸:
15 in
安全性:
50
销售度量单位:
piece
简要说明:
CP6415: Control panel
