Brief Product Description

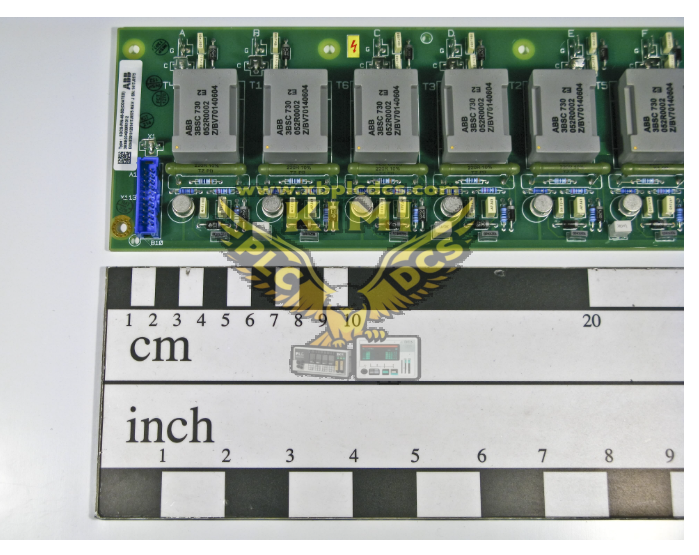

SDCS‑PIN48‑SD, part number 3BSE004939R1512, is a dedicated pulse transformer trigger board for ABB DCS series DC drive converters. This rack‑mount PCB isolates control‑level trigger signals and generates gate drive pulses for thyristor stacks. It provides galvanic isolation between low‑voltage control circuits and high‑power power circuits, ensuring reliable triggering of power thyristors. Designed for continuous heavy‑duty operation in industrial drive cabinets, it acts as a key trigger interface for high‑power DC speed‑control systems and is widely used as spare replacement part for maintenance and retrofit.

Product ID: 3BSE004939R1512

ABB model name: SDCS-PIN48-SD

Catalog description: SDCS-PIN48-SD; PULSE TRANSFORMER BOARD

Detailed description: SDCS-PIN48-SD

Net weight of the product: 0.328 kg

Replacement product ID (OLD):

3BSE004939R1012 64282972

Core Product Functions

• Receive control pulse signals from main drive controller and convert to thyristor gate trigger pulses
• High‑voltage galvanic isolation between low‑voltage control section and high‑power thyristor circuit
• Pulse transformer drive for reliable firing of high‑power thyristor rectifier stacks
• Signal conditioning to stabilize trigger pulse amplitude and waveform for consistent thyristor turn‑on
• Supports multi‑phase rectifier bridge triggering for DCS DC converter power units
• Built‑in surge suppression to resist high‑voltage interference from power circuits
• Front‑panel LED indicators for working status and simple fault indication
• Standard rack‑mount structure for direct installation inside ABB DCS drive cabinets
• Guarantee stable speed regulation performance of DC drive system under variable load conditions

Application Scenarios

• ABB DCS series high‑power DC drive converter cabinets for industrial speed‑regulation equipment
• Metallurgical rolling mill DC motor drive and rectifier control systems
• Mine hoist, large crane and heavy‑duty DC motor speed‑control panels
• Paper‑making machinery, textile production line DC drive control cubicles
• Cement plant large‑power DC adjustable‑speed equipment and rectifier units
• Spare pulse transformer board for maintenance and upgrade of legacy ABB DCS drive installations

FAQ (Frequently Asked Questions)

• Q: DC drive reports phase loss or abnormal current fluctuation after board replacement?
  A: Check trigger wiring connection, pulse transformer circuit integrity, thyristor health status and phase sequence matching parameters.
• Q: Drive cannot output torque and thyristor fails to fire normally?
  A: Inspect input trigger pulse signal, damaged pulse transformer windings, loose terminal contacts or burned‑out on‑board components.
• Q: Can SDCS‑PIN48‑SD 3BSE004939R1512 be hot‑swapped while drive cabinet remains energised?
  A: Hot‑swap is strictly prohibited. Fully power‑down the drive unit and discharge DC bus voltage before board replacement for safety.
• Q: Can this pulse board work with other brands of thyristor DC drives?
  A: It is specially designed for ABB DCS drive series; cross‑brand application needs complete circuit and trigger signal validation.

• Q: Is 3BSE004939R1512 available for new‑build DC drive projects?
  A: This legacy drive board has reached end‑of‑life. Only surplus and refurbished tested spare boards are supplied for existing‑site maintenance work.
