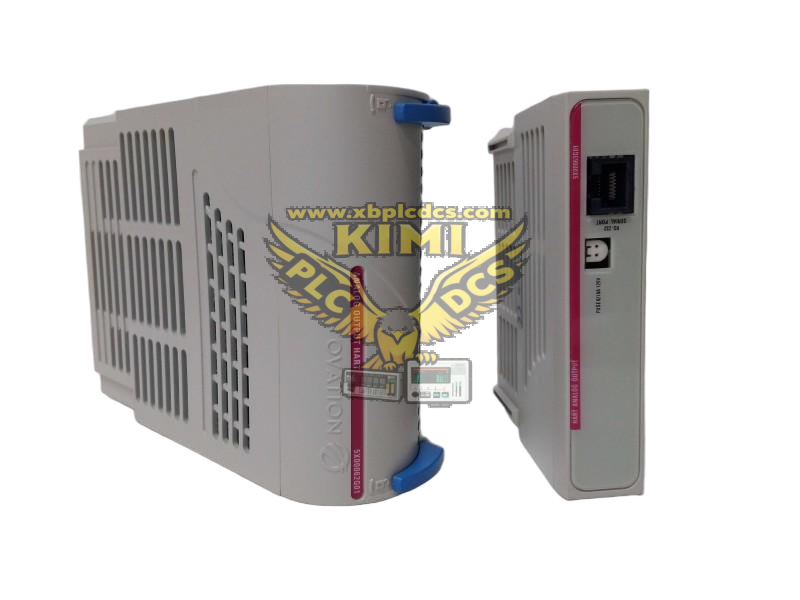

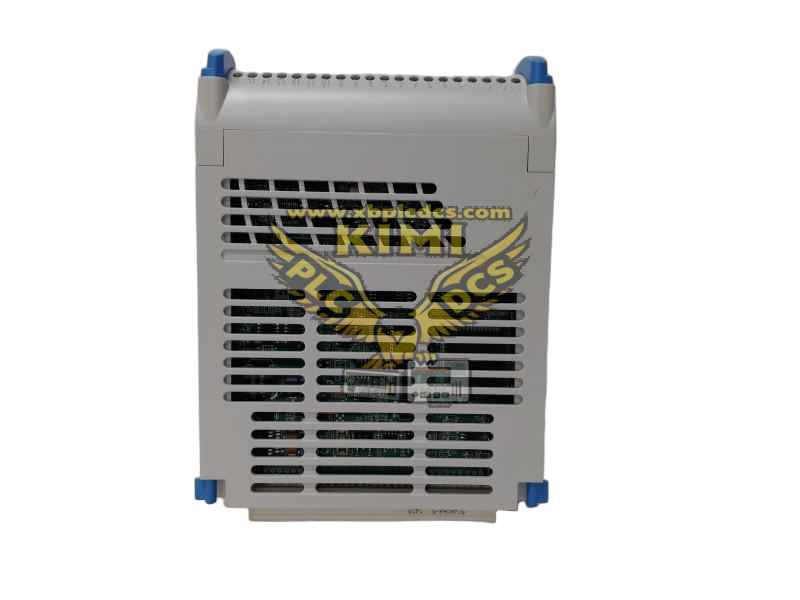

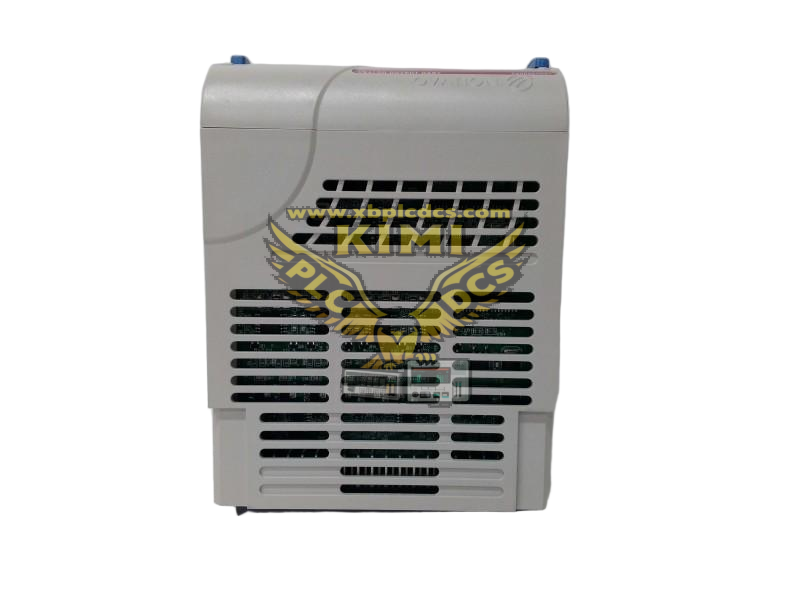

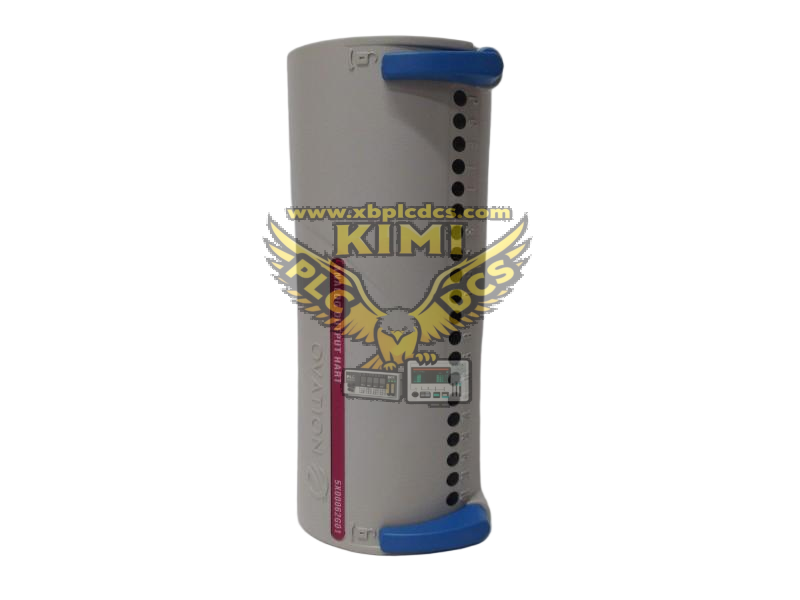

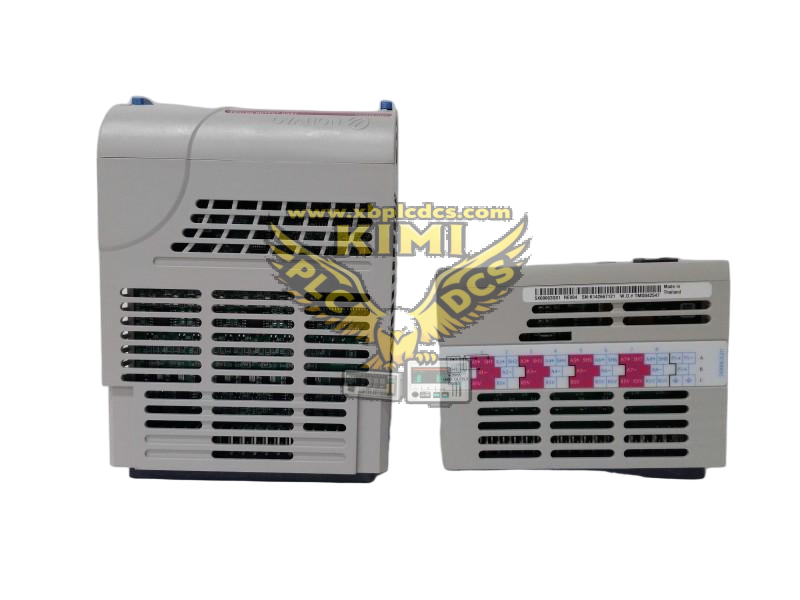

Emerson 5X00062G01 & 5X00063G01 8-Channel HART Analog Output Modules for Ovation DCS
Product Overview
The Emerson 5X00062G01 and 5X00063G01 are high-precision 8-channel HART analog output modules, core components of the Ovation Distributed Control System (DCS), engineered to convert digital control signals into accurate 4-20mA current loops for seamless control of actuators, valves, and smart field devices in harsh industrial environments. Both modules support the HART protocol for bidirectional communication, enabling advanced diagnostics, parameter configuration, and real-time data exchange with HART-compatible instruments. With industrial-grade design, 24V DC power, IP20 protection, and robust channel isolation (1000 VAC/VDC), they ensure reliable operation in power generation, chemical processing, metallurgy, and water treatment applications, serving as critical interfaces for precise process control and reduced downtime.
Key Functions
These modules deliver 8 independent 4-20mA analog outputs with ±0.1% full-scale accuracy and 16-bit resolution for precise control of process variables (flow, pressure, temperature). HART protocol support enables bidirectional communication with smart devices, facilitating remote configuration, calibration, and diagnostic monitoring. Built-in fault isolation and on-board diagnostics detect open circuits, short circuits, and overloading, minimizing system impact and enabling quick troubleshooting. Hot-swappable design allows module replacement without system shutdown, while compatibility with Ovation’s redundant architecture maximizes operational reliability. Flexible output scaling and range configuration adapt to diverse field devices, ensuring seamless integration with existing control systems.
Application Scenarios
Ideal for process control applications, these HART analog output modules are widely used in power generation (thermal, nuclear, hydroelectric plants), chemical processing (batch reactors, distillation columns, continuous processes), oil and gas (refineries, pipelines, offshore platforms), metallurgy (steel mills, non-ferrous smelting), and water/wastewater treatment (pump stations, filtration systems, chemical dosing). They excel in applications requiring precise actuation control, HART-enabled smart device integration, and reliable operation in extreme temperatures (-40°C to +70°C), making them suitable for both retrofits and new DCS installations.
Technical Specifications (5X00062G01 & 5X00063G01)
| Parameter | 5X00062G01 | 5X00063G01 |
|---|---|---|
| Product Type | 8-Channel HART Analog Output Module (Ovation DCS) | |
| Manufacturer | Emerson | |
| Model/Part Number | 5X00062G01 | 5X00063G01 |
| Number of Channels | 8 | 8 |
| Output Signal | 4-20mA Current Loop | 4-20mA Current Loop, 0-10V (Configurable) |
| Communication Protocol | HART (Bidirectional) | |
| Accuracy | ±0.1% of Full Scale | |
| Resolution | 14-Bit | 16-Bit |
| Output Load Capacity | 230-600 Ohms (Max 700 Ohms) | 230-600 Ohms (Max 700 Ohms) |
| Isolation | Channel-to-Ground (1000 VAC/VDC for 1 min) | Channel-to-Ground (1000 VAC/VDC for 1 min) |
| Operating Voltage | 24V DC (Ovation Backplane) | 24V DC (Ovation Backplane) |
| Operating Temperature | -40°C to +70°C | -40°C to +70°C |
| Weight | 0.31 kg | 0.27 kg |
| Key Features | HART Communication, On-Board Diagnostics, Hot-Swappable | HART Communication, Configurable Signal Types, Hot-Swappable, Fault Isolation |
