- Brand：TRICONEX
- Part number：TRICONEXMP3009
- Product Origin：America
- Weight：1.2KG
- RMB Market price：80000-100000
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com

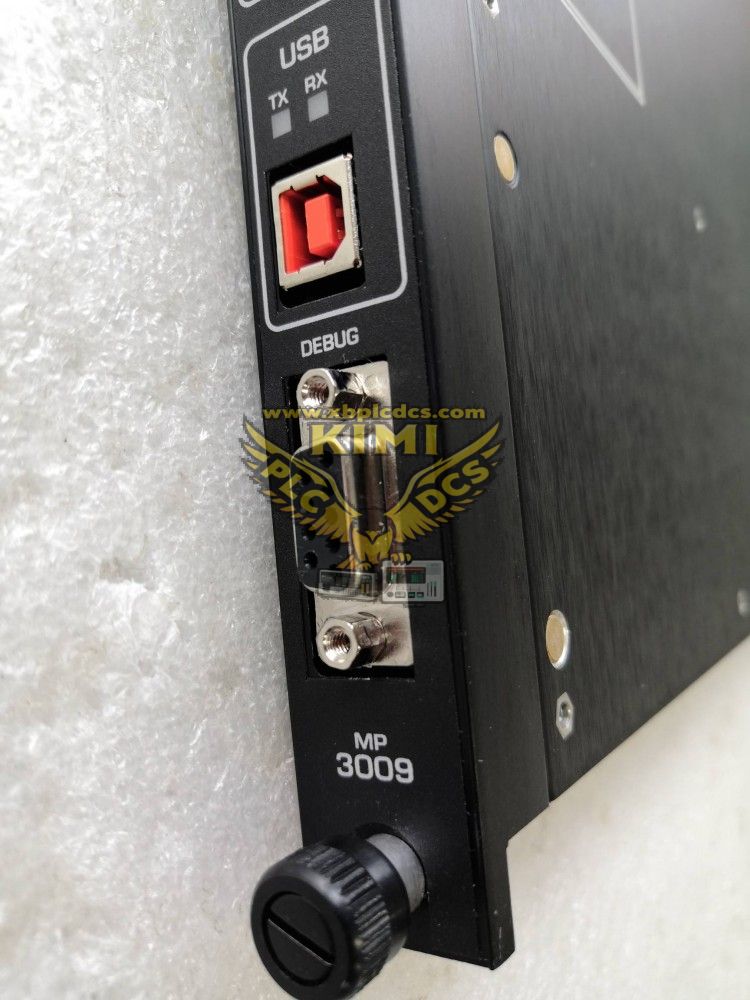

TRICONEX 3009 CPU Processor Module Overview
The TRICONEX 3009 is a high-reliability CPU processor module developed by Triconex (a brand under Schneider Electric), serving as the core control unit for Triconex Safety Instrumented Systems (SIS). Built on the patented Triple Module Redundancy (TMR) architecture, it ensures uninterrupted operation in critical industrial environments through synchronous processing and real-time voting of three independent processor channels.
Compliant with SIL 3 safety standards and IEC 61508/IEC 61511 international norms, the module integrates advanced computing capabilities, rich communication interfaces, and comprehensive self-diagnostic functions. It efficiently handles complex control logic, processes multi-channel input signals, and drives output modules, making it the cornerstone of safety interlocking, emergency shutdown, and process control in high-risk industrial scenarios.
TRICONEX 3009 Core Parameters Table
| Parameter Category | Parameter Name | Parameter Value | Remarks & Explanations |
|---|---|---|---|
| Basic Information | Product Model | TRICONEX 3009 | High-performance successor to TRICONEX 3008 series |
| Basic Information | Manufacturer | Triconex (Schneider Electric Brand) | Specialized in safety-critical control solutions |
| Core Architecture | Redundancy Design | Triple Module Redundancy (TMR) | Three-channel synchronous operation + real-time voting for fault tolerance |
| Core Architecture | Safety Certification | SIL 3, IEC 61508, IEC 61511 | Meets global high-safety level requirements |
| Hardware Configuration | Processor | 32-bit RISC Processor (80MHz) | Higher clock speed than previous generations for faster data processing |
| Hardware Configuration | Memory Configuration | 32MB DRAM (no battery backup) 64KB SRAM (battery backup) 16MB Flash PROM | Adequate storage for complex control programs and data logging |
| Power Parameters | Input Voltage Range | 10.5-30VDC; Optional 85-265VAC | Dual-voltage options for global industrial power environments |
| Power Parameters | Maximum Output Current | 30A | Supports more peripheral modules simultaneously |
| Communication Capabilities | Protocols Supported | Modbus TCP/IP, Ethernet/IP, Profinet, OPC UA, TriStation | Seamless integration with multi-brand industrial systems |
| Communication Capabilities | Interfaces | TriBus (50Mbps), 2×Ethernet Ports, RS-232/485 | High-speed data transmission and multiple connection options |
| Environmental Adaptability | Operating Temperature | -40°C to 85°C | Resists extreme temperature conditions in industrial sites |
| Environmental Adaptability | Protection Level | IP67 | Dustproof and waterproof for harsh on-site environments |
| Physical Specifications | Dimensions (W×H×D) | 230mm×150mm×85mm | Compact design for space-constrained control cabinets |
| Physical Specifications | Weight | Approx. 2.5kg | Easy to install and maintain |
| Functional Features | Key Functions | Real-time control, online programming, self-diagnosis (99.9% coverage), fault logging | Reduces maintenance time and ensures operational safety |
| Application Scenarios | Applicable Industries | Petrochemical, Nuclear Power, Thermal Power, Metallurgy, Pharmaceuticals, Rail Transit | Ideal for ESD, F&G, BMS and other critical control systems |
Key Features of TRICONEX 3009
- Enhanced Processing Performance: 80MHz 32-bit RISC processor delivers 40% higher computing efficiency than previous models, handling complex control logic with ease.
- Advanced TMR Redundancy: Optimized voting algorithm ensures seamless switchover within 5ms when a single channel fails, maintaining system continuity.
- Comprehensive Communication Support: Integrates mainstream industrial protocols and multiple interfaces, enabling flexible connection with DCS, HMI, and other devices.
- Intelligent Diagnostics: 99.9% diagnostic coverage monitors hardware status, communication links, and power supply in real time, with detailed fault records for quick troubleshooting.
Robust Environmental Adaptability: IP67 protection and wide operating temperature range (-40°C to 85°C) suit harsh industrial environments such as offshore platforms and chemical plants.
