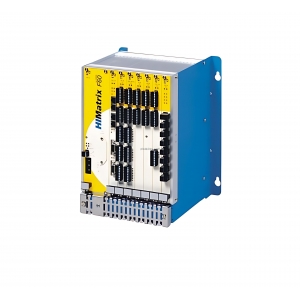

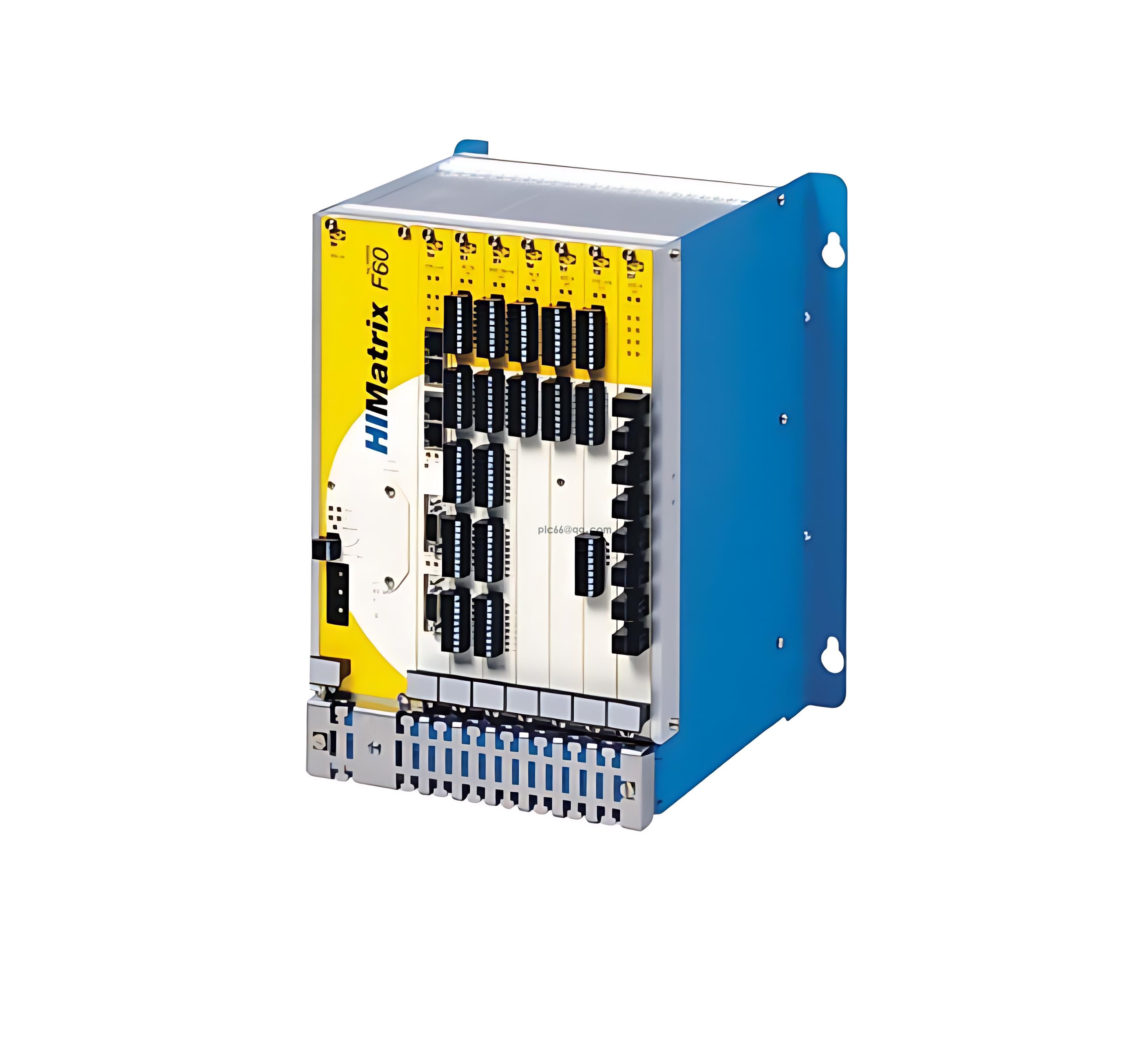

HIMA F-CPU 01 is a safety-related processor module launched by HIMA Corporation and is often used in the HIMatrix F60 controller.

The following is its related introduction:

Functional features:

High-performance processing capability: With a clock speed of up to 320 MHZ, it can quickly handle up to 32 user programs, efficiently execute various complex control algorithms and tasks, and simultaneously complete all central functions including communication.

High security certification It has passed the TUV certification and is applicable to safety-related applications, meeting the standards of SIL 3 (IEC 61508, IEC 61511 and IEC 62061), Cat.4 (EN 954-1) and PL E (EN ISO 13849-1). It can ensure reliable operation in safety-critical applications.

Support for redundancy: It supports redundant configuration with up to three additional processor modules, further enhancing the system's reliability and fault tolerance, ensuring that the system can still operate normally when a certain module fails.

Technical parameters:

Processor speed: Up to 10MHz at most.

Memory capacity: 1MB ROM, 1MB RAM, which can meet the requirements for program storage and data processing in general industrial control.

Communication protocol: Supports multiple communication protocols, such as Ethernet/IP, Profinet, DeviceNet, etc., facilitating seamless integration and data exchange with other devices and systems.

Operating temperature range: -25℃ to + 70℃, suitable for various harsh industrial environments.

Power consumption: 5W, featuring good energy efficiency and reducing operating costs while ensuring performance.

Application field: As an advanced industrial control module, HIMA F-CPU 01 is mainly used in industrial automation scenarios with extremely high requirements for reliability and safety, such as petrochemical, power, pharmaceutical, transportation and other industries. It can ensure the precise control of the production process and the safe and stable operation of the system, protecting personnel, equipment and the environment from the influence of potential dangers

Client Concern

Part Number : HIMA F-CPU 01 Processor module H51X, H41X (2x RJ-45, SIL 3)

Condition : Brand New with 12 month warranty

Lead Time : in stock

Status: 100% original

Payment method: T/T. Currencies for receipt: US dollar, New Zealand dollar, Chinese yuan, euro, Hong Kong dollar, Australian dollar, British pound, Canadian dollar, ruble and other global currencies

HIMA F-CPU 01 Processor module H51X, H41X (2x RJ-45, SIL 3)  Not what you want?

Hot Module

F-CPU 01    Processor module H51X, H41X (2x RJ-45, SIL 3)

F-COM 01    Communication module for Ethernet, Profibus DP and serial communication (2x RJ-45, 1 x 9-pole D-SUB 2x RS 485)

F-BASE RACK 01    Base rack H51X, 19 inches, 4 units high

F-BASE RACK 01 R    Base rack H51X, rugged subrack 19 inches, 4 units high

F-BASE RACK 02    Base rack H41X, 19 inches, 4 units high, 12 slots for I/O modules

F-BASE RACK 02 R    Base rack H41X, rugged subrack 19 inches, 4 units high, 12 slots for I/O modules

F-BASE RACK 11    Extention rack H41X/H51X, H51q, 19 inches, 4 units high, 16 slots for I/O modules

F-BASE RACK 12    Extension rack H41X, H51X, 19 inches, 4 units high, 16 slots for I/O modules

F-BASE RACK 12 R    Extension rack H41X, H51X, rugged subrack 19 inches, 4 units high, 16 slots for I/O modules

F-PWR 01    Power supply module 24 VDC / 5 VDC, 50W, H41X, H51X

F-PWR 02    Watchdog supply module for extension rack, H51X

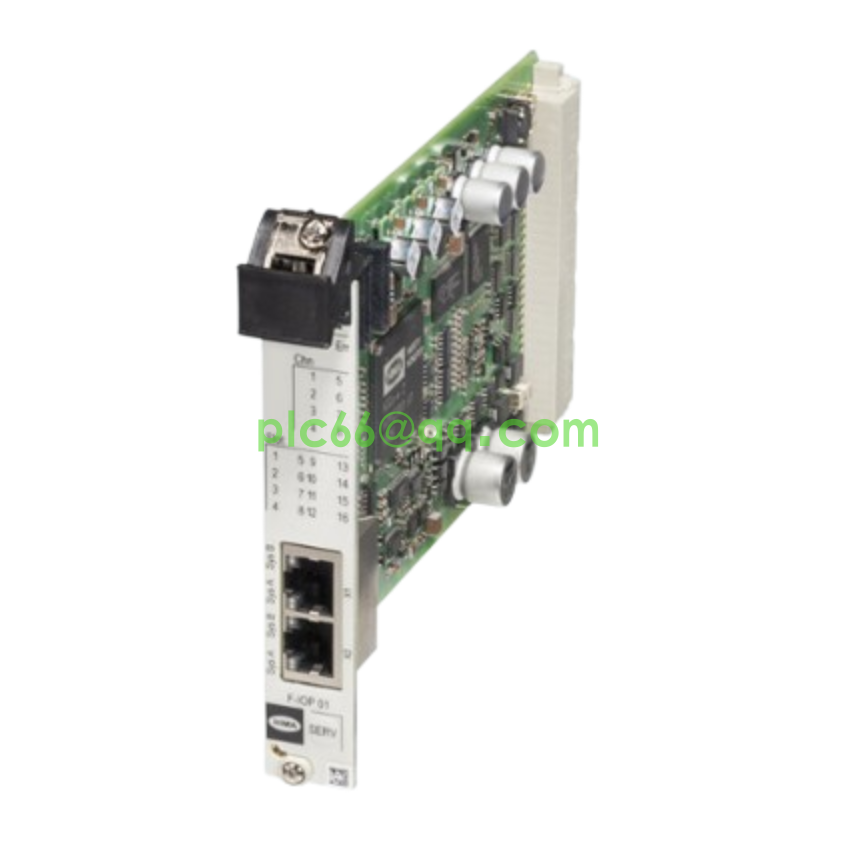

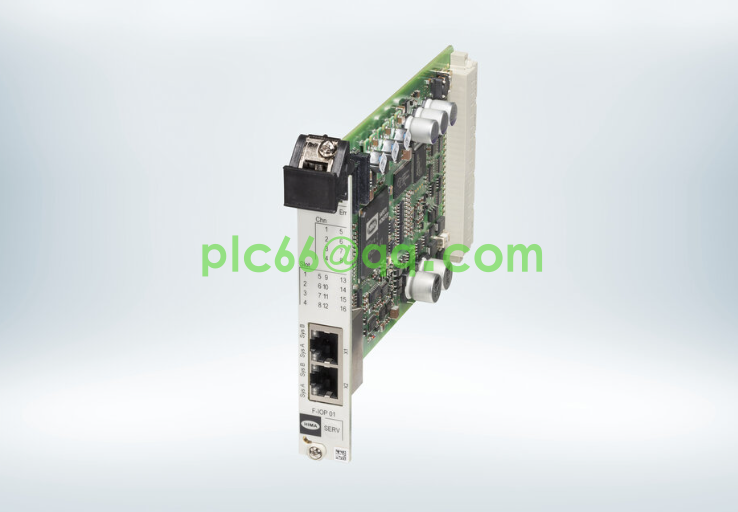

F-IOP 01    I/O processing module (SIL 3) with redundant system bus

F-FAN 01    System fan for racks, 19 inches, 1 unit high

I/O modules SIL   Channels  SC/OC  Ex   Note      Input modules digital

F 3221    16    -    -    Contacts, 1 signal 24 VDC

F 3224A    4    -    yes    Contacts, 1 signal, SN-, proximity switches, wired contacts, ATEX

F 3236    3    16    -    -    Contacts, 1 signal 24 VDC

F 3240    3    16    -    -    Contacts, 1 signal 110 VDC/127 VAC

F 3248    3    16    -    -    Contacts, 1 signal 48 VDC

Input modules Initiator

F 3237    3    8    yes    -    SN-, proximity switches, wired contacts

F 3238    3    8    yes    yes    SN-, proximity switches, wired contacts, 8 DU wide, ATEX

Input modules analog

F 6215    0    8    yes    -    Current, voltage, Pt100

F 6217    3    8    yes    -    Current, voltage

F 6221    3    8    yes    yes    Current, voltage, ATEX

Output modules digital

F 3322    16    -    -    24 VDC to 0.5 A

F 3325    3    6    -    yes    Ex transmitter supply module for F 6221, ATEX

F 3330    3    8    -    -    24 VDC to 0.5 A

F 3331    3    8    yes    -    24 VDC to 0.5 A

F 3333    3    4    -    -    24 VDC to 2 A

F 3334    3    4    yes    -    24 VDC to 2 A

F 3335    3    4    -    yes    24 VDC, ATEX

F 3349    3    8    yes    -    24 VDC/48 V DC to 0.5 A

F 3422    8    -    -    Relay module, 30 VAC/DC, 120 W, floating NO contact

F 3430    3    4    -    -    Relay module, 110 VDC/250 V AC to 4 A

Output modules analog

F 6705    3    2    -    -    Current

F 6706    2    -    -    Current

Special modules

F 5220    3    2    yes    -    Counter module initiator, 5 VDC, 24 V DC to 1 MHz, 2 integral digital outputs 24 VDC to 0.5 A

* in conjunction with safety-related protocol

Terminal modules

H 7015A    Terminal Module with Vario plug ELCO 8016 (Code 1-1). For wiring to e.g. H 7016, H 7018.

H 7018    Terminal Module with Vario plug ELCO 8016 (Code 1-1). For wiring to H 7015(A).

H 7020    Terminal Module for connection between I/O modules and the field level

The main reasons for choosing the HIMA system are as follows:

Technological leadership: HIMA was founded in 1908. Since it produced the world's first TUV-certified fault-safe control system Planar in 1970, it has always been at the forefront of the safety control field, guiding the development of four generations of global safety systems. Its Functional Safety center has several TUV-certified functional safety experts and a high-level R&D team. It invests 15% of its annual sales revenue in R&D, constantly exploring new fields of functional safety technology, and based on this, has established a series of new safety standards.

High reliability and safety: The safety control products of HIMA meet the highest level requirements for safety control such as IEC 61508 and DIN V 19250, and have obtained the certification of the highest level AK7/SIL4 from TUV. Adopting a dual 1oo2D structure (i.e., 2oo4D structure), it has a powerful fault-tolerant function. If any component in the system fails, it will not affect the normal operation of the system. At both the central equipment and I/O levels, single or redundant equipment configurations can be provided according to the requirements of security and availability.

Flexible system configuration: The HIMA system can be seamlessly integrated into various automated environments and can use preferred equipment of the same class. For instance, through Ethernet-based protocols such as PROFINET (controller) and PROFIsafe (host), it supports full-loop digitalization for functional safety and offers a variety of options for integration at the field level, including IO, HART, and other general-purpose bus systems and networks. All the equipment in the factory can also be configured from a central point, facilitating the re-designation of equipment and allowing for easy expansion and changes at each stage of the project.

Easy to maintain and manage: With predictive maintenance, detailed diagnostic information, and rapid equipment replacement, maintenance time can be shortened. A unified communication infrastructure helps save engineering time and simplify operations such as processes, procurement, and inventory handling. Xima professionals are also responsible for the engineering, programming and comprehensive integration of automation at all levels, helping users formulate appropriate factory maintenance plans. During operation, users can obtain all transparent information from the site to the enterprise.

Rich industry experience: HIMA's business areas cover process safety, plant machinery safety, public building safety and other fields. More than 40,000 sets of its safety control systems have been put into use, widely distributed in industries such as chemical engineering, petrochemicals, offshore oil platforms, long-distance pipelines, oil and gas stations, metallurgy, building materials, automotive manufacturing, transportation and pharmaceuticals. It has extensive application experience in various fields and can provide the most authoritative safety solutions for users in different industries.

Customized Services: HIMA has a professional team of engineers who can provide customized safety solutions based on the specific needs of customers, helping factories enhance functional safety, information security, and economic benefits.
