1. Product Overview

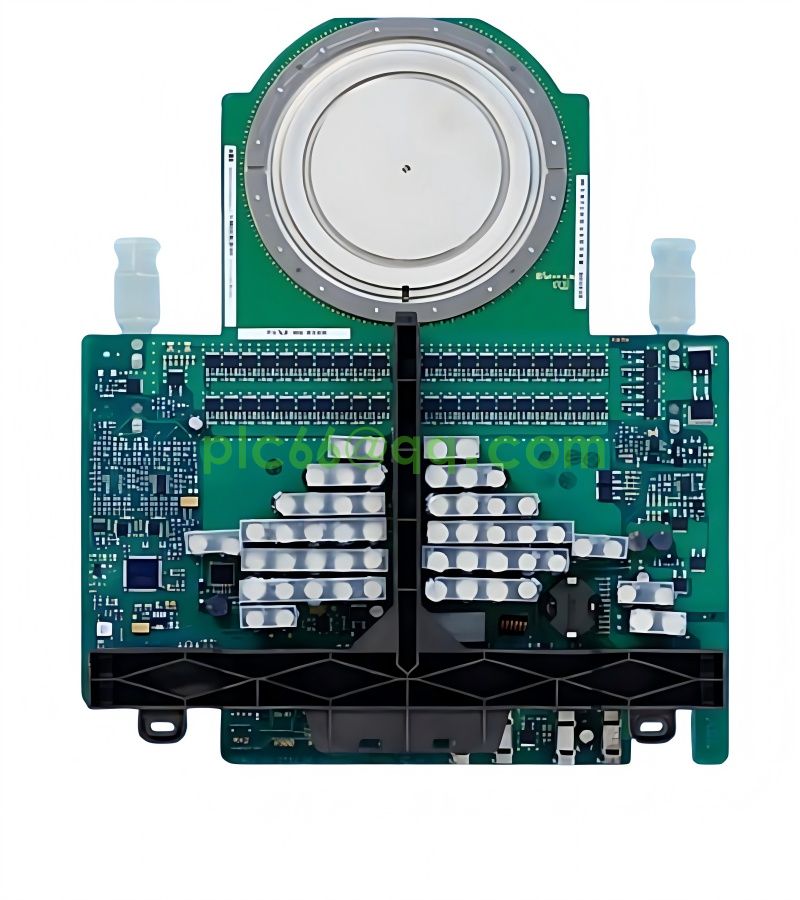

The ABB 5SHX1960L0006 (Ordering Code: 3BHB016120R0002) is an asymmetric Integrated Gate Commutated Thyristor (IGCT) power module belonging to the 5SHX series, specifically designed for ABB ACS 6000 medium-voltage drive platforms and generator excitation control systems. As a core component for medium-voltage power conversion and excitation regulation, it achieves efficient control of high voltage and large current with sub-microsecond switching speed, low on-state voltage drop (reduced by ~30% compared to traditional GTO), and high no-buffer turn-off rating, significantly improving system energy efficiency and dynamic response. Equipped with integrated gate drive circuit (GVC750BE101), 2500V AC isolation, and comprehensive protection functions (overcurrent, overvoltage, overtemperature, gate short circuit), it is an ideal choice for critical applications in power generation (hydropower, combined cycle, pumped storage power plants), oil & gas, metallurgy, and rail transit that require high power density, fast dynamic response, and reliable operation.
Product ID:3BHB016120R0002
ABB model name :5SHX 1960L0006, 91MM GVC736
Table of Contents Description
5SHX 1960L0006, 91MM GVC736; RC-IGCT
Detailed description :5SHX 1960L0006, 91MM GVC736
Change product ID (OLD) :3BHB016120R0003
Net weight of the product: 3.33 kilograms
Key Specifications
• Model: 5SHX1960L0006 | Ordering Code: 3BHB016120R0002 | Brand: ABB | Series: 5SHX
• Compatibility: ABB ACS 6000 Drives, Generator Excitation Systems, Medium-Voltage Inverters
• Type: Asymmetric Integrated Gate Commutated Thyristor (IGCT) Power Module
• Voltage Rating: 4.5kV | Current Rating: 2.0kA (Continuous), 20kA (Peak)
• Switching Speed: Sub-Microsecond | On-State Voltage Drop: 2.1V (Typical)
• Gate Drive Circuit: Integrated GVC750BE101 Gate Unit | Isolation: 2500V AC (1min, Power-Control Side)
• Protection Functions: Overcurrent, Overvoltage, Overtemperature, Gate Short-Circuit Protection
• Power Supply: 24V DC (18-32V DC) | Power Consumption: 12W (Typical)
• Operating Temperature: -20°C to +60°C | Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (Non-Condensing) | Protection Class: IP20 (Front Panel)
• MTBF: >120,000 Hours | Dimensions: 200mm(W) × 160mm(D) × 75mm(H)
• Mounting: Flange-Mount | Net Weight: 4.8 kg | Gross Weight: 6.2 kg
• Cooling Method: Forced Air/Water Cooling (Customizable)
2. Core Features
• Sub-Microsecond Switching: Ultra-fast switching for high dynamic response in excitation control and drive systems
• Low Power Loss: ~30% lower on-state voltage drop and ~40% lower switching loss than traditional GTO, improving energy efficiency
• High No-Buffer Turn-Off Rating: Optimized for medium-frequency (MF) applications with minimal external components
• Integrated Gate Drive: GVC750BE101 provides precise gate voltage/current control and real-time status monitoring
• 2500V AC Isolation: Eliminates ground loop interference and ensures safe operation in high-voltage environments
• Comprehensive Protection: Overcurrent, overvoltage, overtemperature, and gate short-circuit protection for system safety
• High Power Density: Compact design with forced air/water cooling for high-power applications in limited space
• Easy Integration: Standardized terminal layout and flange mounting compatible with ABB and third-party control platforms
