Product Description

GE IC670ALG310-JA | 8-Channel Isolated Analog Voltage Output Module for PACSystems RX7i/Genius

14-Bit Precision Voltage Output Module for Process Actuator Control (Valves, VFDs, Motors) in Industrial Automation

1. Product Overview

The GE IC670ALG310-JA is an 8-channel isolated analog voltage output module for GE Fanuc PACSystems RX7i and Genius I/O System, designed to convert digital control signals from the PAC controller into precise -10V to +10V analog voltage outputs for field actuators (control valves, VFDs, variable speed motors, and electro-pneumatic positioners). Each channel features 2500V AC galvanic isolation (two isolated groups of 4 channels each) to prevent cross-talk and surge damage, with 14-bit resolution (0.012% of full scale), ±0.1% FS accuracy, and automatic scaling for flexible process control. The module operates on 18-30VDC (24VDC nominal, 8W max power), offers -40°C to +70°C wide temperature range, and includes enhanced diagnostics for overrange/underrange detection, power loss, and uncalibrated status, ensuring reliable operation in harsh industrial environments (oil/gas, chemical, power, water/wastewater) with IEC 61010-1 and CE compliance for safety and EMC immunity.

GE IC670ALG310-JA (1).jpg

Key Specifications

• Model: IC670ALG310-JA (Revision JA)

• Type: 8-Channel Isolated Analog Voltage Output Module for PACSystems RX7i/Genius I/O

• Output Channels: 8 independent voltage outputs (-10V to +10V), 2 isolated groups (4 channels/group)

• Resolution/Accuracy: 14-bit (0.012% FS), ±0.1% FS (calibrated at 25°C)

• Isolation: 2500V AC channel-to-channel/group-to-ground (1 minute)

• Output Update Rate: 500ms max (all channels), 100ms per channel

• Power Supply: 18-30VDC (24VDC nominal), 8W max power consumption

• Operating Temperature: -40°C to +70°C; Storage: -40°C to +85°C

• Dimensions (W×H×D): 149.2mm × 44.45mm × 115.6mm (5.875×1.75×4.55 inches); Weight: ~0.2kg

• Diagnostics: Overrange/underrange detection, power loss, uncalibrated module, channel fault alarms

• Certifications: IEC 61010-1, CE, UL 61010-1 (industrial safety); IEC 61326-1 (EMC)

GE IC670ALG310-JA (6).jpg

2. Core Features

• 8 Isolated Channels: 2500V AC isolation prevents electrical interference in noisy industrial environments.

• High Precision: 14-bit resolution and ±0.1% FS accuracy for precise control of process variables.

• Automatic Scaling: Output range configurable (0-5V, 0-10V, ±5V, ±10V) via PAC Programming Software.

• Enhanced Diagnostics: Real-time detection of overrange/underrange, power loss, and uncalibrated status with alarm outputs.

• Hot-Swappable Design: Easy removal/replacement without disconnecting field wiring or power.

• LED Status Indicators: Module power, group isolation, and channel activity LEDs for quick troubleshooting.

• Field Calibration: Supports on-site calibration or factory reset for long-term accuracy.

• Wide Temperature Range: -40°C to +70°C for reliable operation in extreme industrial conditions.

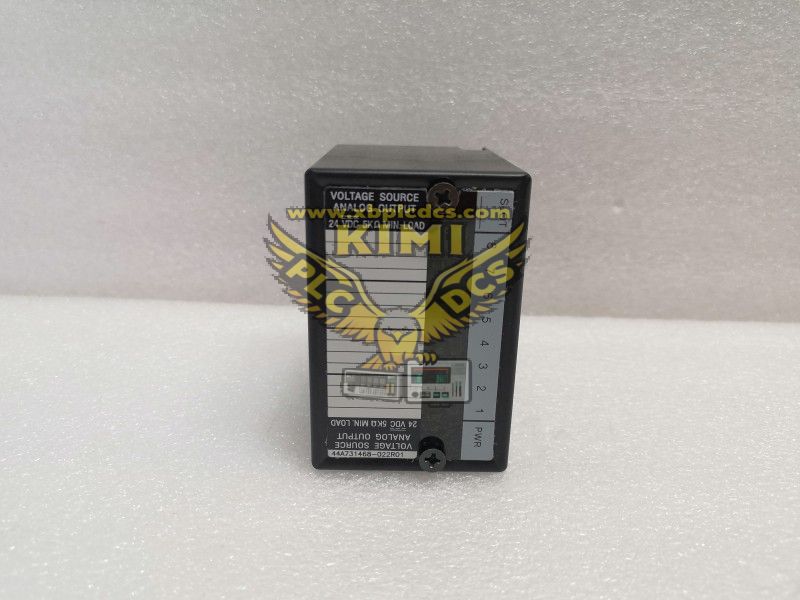

GE IC670ALG310-JA (5).jpg

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling
direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan,
South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia,
Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original.
Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts.
We also offer further price adjustments
if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders.

3. Typical Applications

• Oil & Gas: Wellhead choke valve control (±10V to electro-hydraulic actuators); pipeline pressure regulation (0-10V to pressure controllers).

• Chemical Processing: Reactor temperature control (4-20mA via voltage-to-current converter); batch process flow control (0-5V to metering pumps).

• Power Generation: Turbine speed control (±10V to governor actuators); boiler feedwater flow control (0-10V to VFDs).

• Water/Wastewater: Sewage treatment aerator speed control (0-10V to VFDs); chemical dosing pump modulation (±5V to proportional valves).

• Pulp & Paper: Paper machine speed synchronization (0-10V to drive controllers); steam pressure control (±10V to control valves).

GE IC670ALG310-JA (2).jpg

4. Installation & Maintenance

Installation: Mount on RX7i/Genius I/O rack; connect 24VDC power (reverse-polarity protected). Wire analog outputs to field devices (twisted-pair shielded cable, max 300m). Verify insulation resistance (>100MΩ) before power-up.

Configuration: Use PAC Programming Software to set output range (-10V to +10V default), scaling (0-100% to 0-10V), and alarm thresholds (overrange = +10.05V, underrange = -10.05V).

Maintenance: Monthly: Inspect analog connections; check power supply voltage (22-26VDC). Annual: Perform 2-point calibration (0V, +10V) with precision multimeter; replace module if fault codes (e.g., uncalibrated, overrange) persist.

Fault Diagnosis: Channel overrange = Check process variable limits; Isolation fault = Inspect wiring for short circuits; Power loss = Verify 24VDC supply and module connections.
