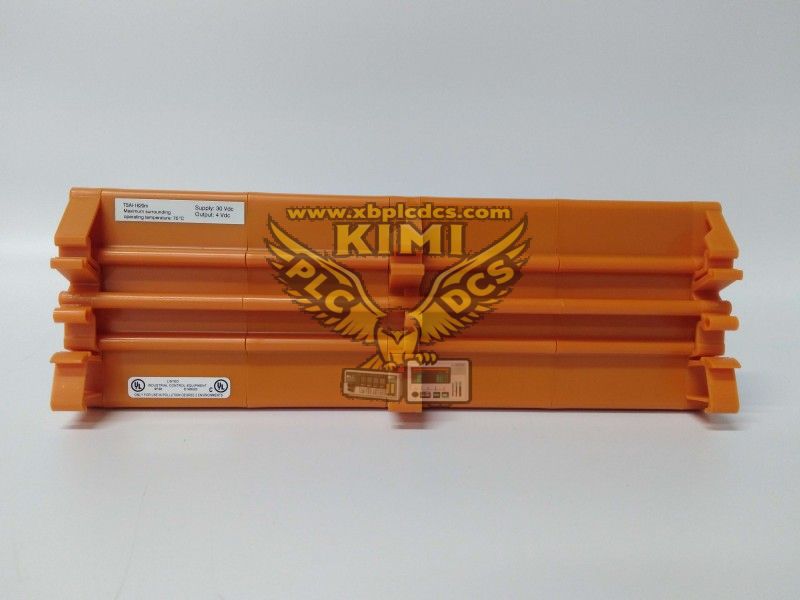

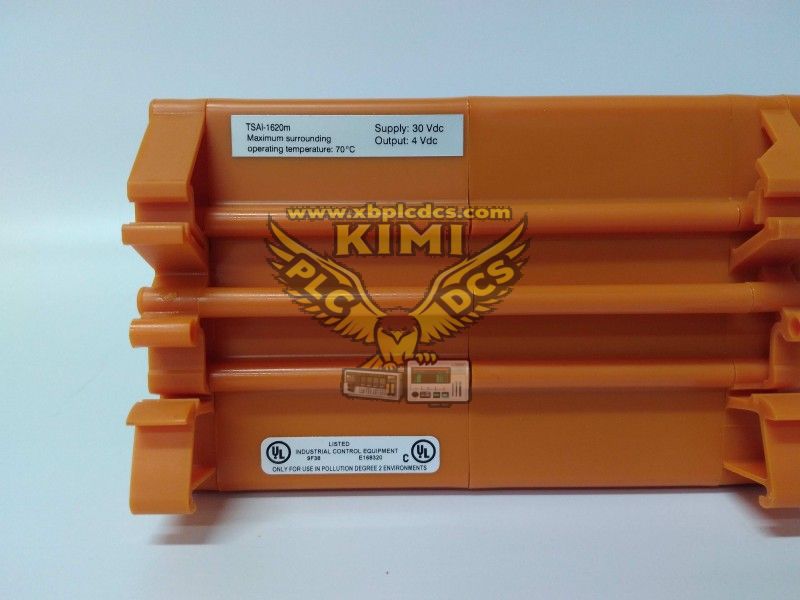

Brief Product Description

The FC‑TSAI‑1620M is a high‑density field termination analog input module developed for Honeywell Safety‑Manager and Experion PKS safety‑instrumented systems. It provides 16‑channel signal interface for 4‑20mA / 0‑20mA field transmitters, converts loop current signals into 0‑4VDC safe‑side signals for SAI‑1620M safety I/O cards. With built‑in channel‑by‑channel current limiting and fuse protection, FM, TUV, SIL‑related safety certifications, DIN‑rail installation, this termination assembly delivers stable signal transmission for safety‑critical industrial process monitoring.

Core Product Functions

• 16 analog input channels, grouped into two banks of 8‑channel with common 0‑volt reference
• Accept 0‑20mA, 4‑20mA loop‑powered transmitter signals from field sensors
• Precise signal conversion from loop current to 0‑4VDC safety‑level analog signals

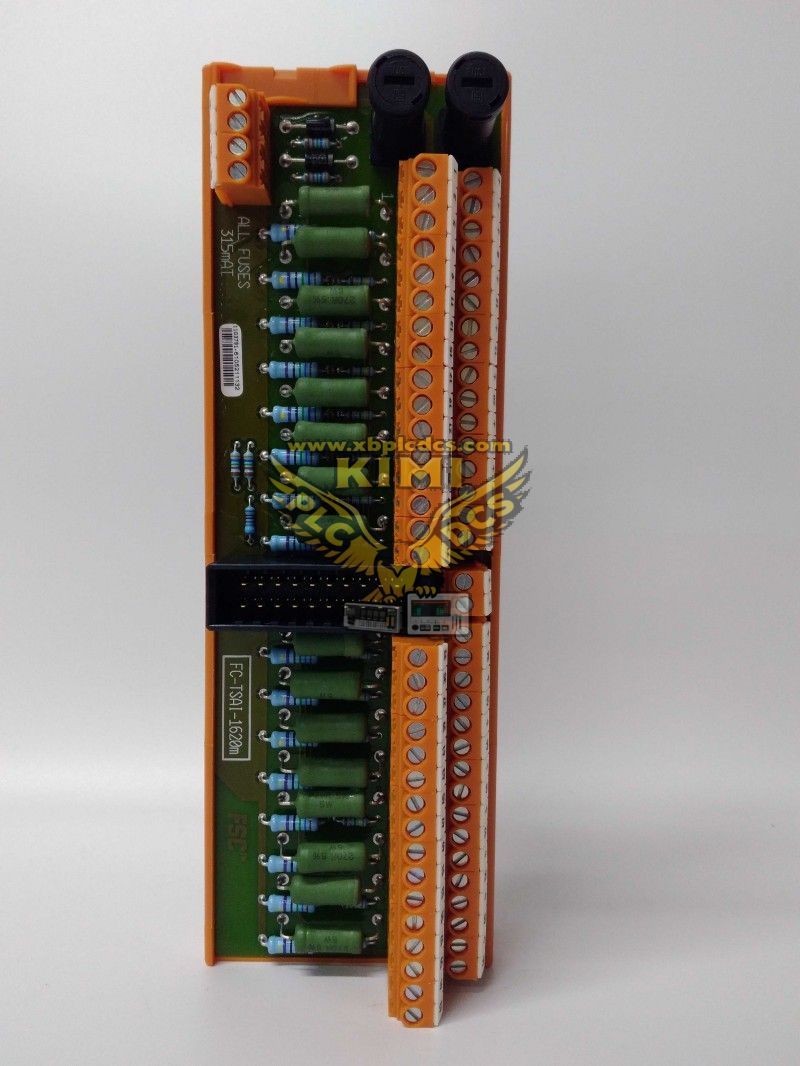

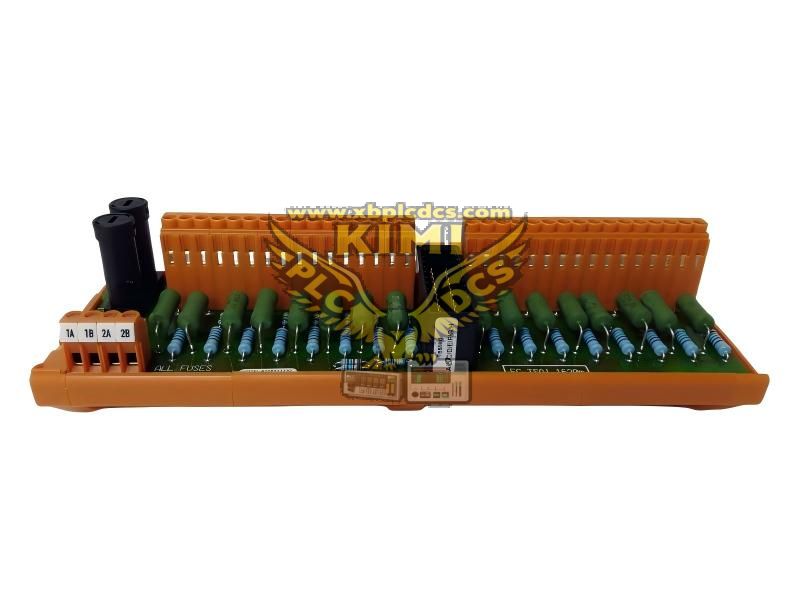

• Built‑in individual channel over‑current fuse protection to prevent fault propagation
• 270‑ohm loop resistance supply power for passive 4‑20 mA field transmitters
• Supports Class I, Division 2 hazardous‑location field circuit connection
• High‑accuracy signal transmission, maximum conversion error of 0.10% full scale
• Complete circuit diagnostics to detect open‑loop, short‑circuit and wiring faults

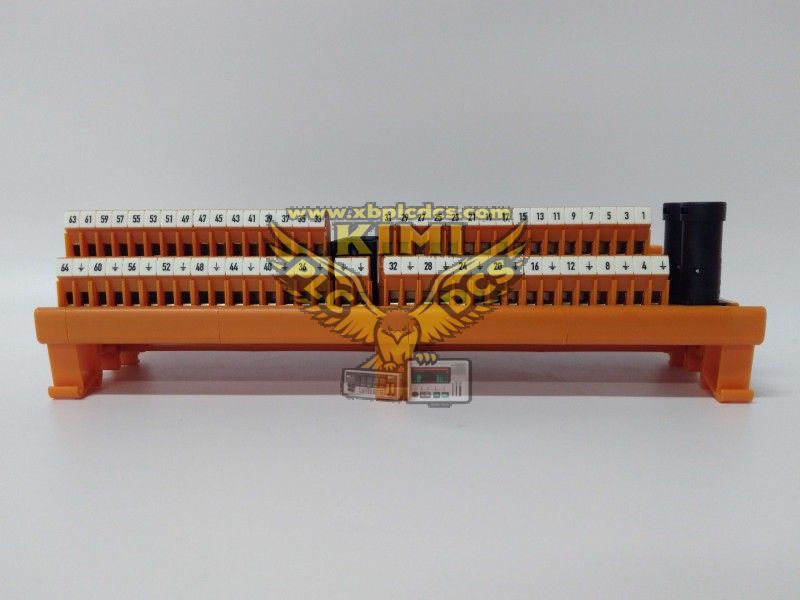

• Standard DIN‑rail mounting design, quick wiring via screw terminal connections

• Seamless hardware matching with Honeywell SAI‑1620M safety analog‑input modules

Application Scenarios

• Oil & gas on‑shore and offshore Emergency Shutdown (ESD) safety control systems
• Petrochemical refinery Fire & Gas(F&G) hazard monitoring safety‑instrumented cabinets
• Chemical plant Honeywell Safety‑Manager safety interlock and process protection racks
• Power‑generation gas‑steam turbine safety monitoring and safety interlock control
• High‑risk industrial sites pressure, flow, temperature safety‑loop signal acquisition
• Spare replacement termination assembly for existing Honeywell SIS safety‑system maintenance

FAQ (Frequently Asked Questions)

• Q: Safety I/O card reports channel open‑circuit fault, while the field transmitter is working?
  A: Check loose terminal wiring, damaged signal cables, blown channel fuse, reversed polarity or poor loop‑power connection.
• Q: Analog measurement readings fluctuate sharply during stable process operation?
  A: Enable signal filtering on safety‑system software; separate analog signal cables from high‑power cables to cut electromagnetic interference.
• Q: Can I hot‑swap the FC‑TSAI‑1620M while the safety rack is powered‑on?
  A: Hot‑swap is not recommended. Isolate related safety loops and cut off field loop power before module replacement, to avoid accidental safety trips.
• Q: Does this FTA module work with other brands of analog‑input safety cards?
  A: It is a dedicated termination assembly, designed exclusively for Honeywell SAI‑1620M safety analog‑input modules, cross‑brand compatibility is not supported.
• Q: Is FC‑TSAI‑1620M still available for new safety‑instrumented‑system construction?
  A: This legacy Honeywell Safety‑Manager series part is end‑of‑life; only surplus, refurbished spare‑part units are supplied for maintenance of existing installations.
