Brief Product Description

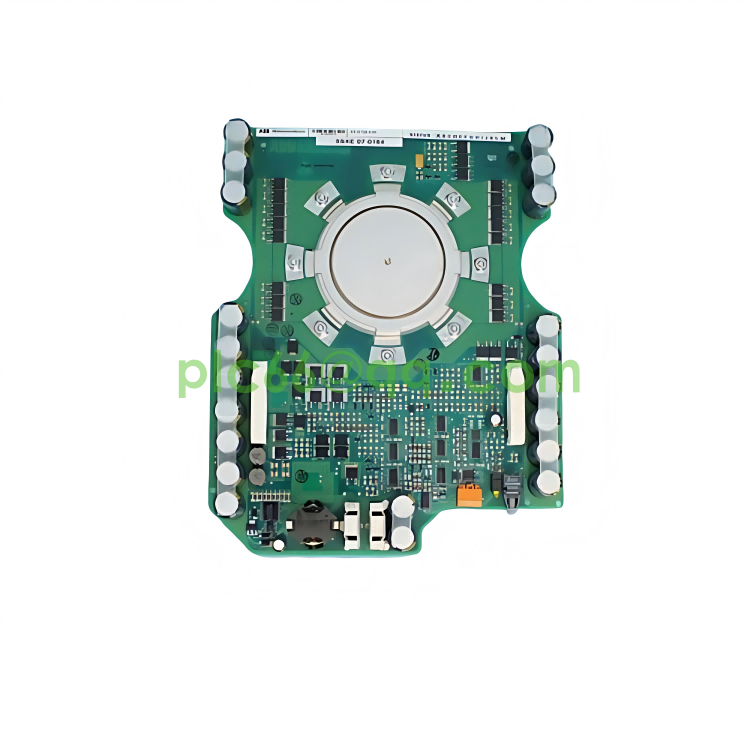

The ABB 5SHX1060H0003 (3BHB020538R0001) is a high-performance Reverse Conducting Integrated Gate Commutated Thyristor (RC-IGCT) designed for medium-voltage high-power converter systems. Featuring an integrated freewheeling diode and advanced StakPak press-pack packaging, this dual-sided water-cooled power semiconductor delivers ultra-low switching loss, high current endurance and reliable short-circuit failure mode. Controlled by fiber-optic gate signals for superior EMI immunity, it ensures stable and safe operation in harsh industrial power conversion environments. As a legacy core power component for ABB medium voltage drives and power quality equipment, fully tested surplus and refurbished units are available for system maintenance, replacement and retrofit projects.

3BHB020538R0001.pdf

Core Product Functions

• Integrated RC-IGCT design combines thyristor and freewheeling diode to simplify power unit topology and reduce component count
• StakPak press-pack structure with dual-sided water cooling enables high power density and efficient heat dissipation
• Advanced gate commutation technology achieves fast turn-off with minimal switching losses without complex snubber circuits
• Safe short-circuit failure mode protects stacked power modules and improves overall system operational safety
• Fiber-optic signal isolation eliminates electromagnetic interference and ensures stable gate control in high-voltage cabinets
• Supports high-power AC-DC and DC-AC power conversion for variable frequency drive and reactive power compensation
• Excellent power cycle endurance and thermal stability for long-term continuous industrial full-load operation
• Supports series stacking configuration to meet high voltage and high power converter system requirements
• Matches perfectly with ABB dedicated gate drive units, water cooling heat sinks and stacking clamping assemblies

Application Scenarios

• ABB medium voltage high-power variable frequency drives for mining, metallurgy and industrial large-scale compressors
• Static Var Generator (SVG) and active power filter (APF) power quality management systems in power plants and substations
• Heavy-duty medium voltage motor drive systems for oil, gas and petrochemical industrial equipment
• Renewable energy grid-connected converters and energy storage power conversion systems
• Industrial large-capacity power conversion equipment and high-power regenerative drive systems
• Legacy ABB IGCT converter cabinet maintenance, power module replacement and system retrofit upgrade projects

FAQ (Frequently Asked Questions)

• Q: Converter fails to operate normally after replacing 5SHX1060H0003?
  A: Check module stacking clamping pressure, water cooling circuit circulation, fiber optic gate signal connection, gate drive board status and semiconductor parameter consistency.
• Q: Does the ABB 5SHX1060H0003 support hot-swap replacement?
  A: No hot-swap support. Completely de-energize the converter, fully discharge the DC bus voltage and implement lockout-tagout procedures before replacement.
• Q: What are the advantages of RC-IGCT over conventional asymmetric IGCT?
  A: RC-IGCT integrates a freewheeling diode, optimizing topology for three-level inverters and regenerative drives, saving installation space and reducing equipment failure points.
• Q: What cooling method is required for this IGCT module?
  A: Dual-sided water cooling is mandatory for full-load operation; air cooling cannot satisfy the heat dissipation requirements of high-power working conditions.
• Q: Is ABB 5SHX1060H0003 (3BHB020538R0001) available for new projects?
  A: This legacy RC-IGCT power module has reached end-of-life. Only fully tested surplus and refurbished units are provided for existing system maintenance and retrofits.
