Brief Product Description

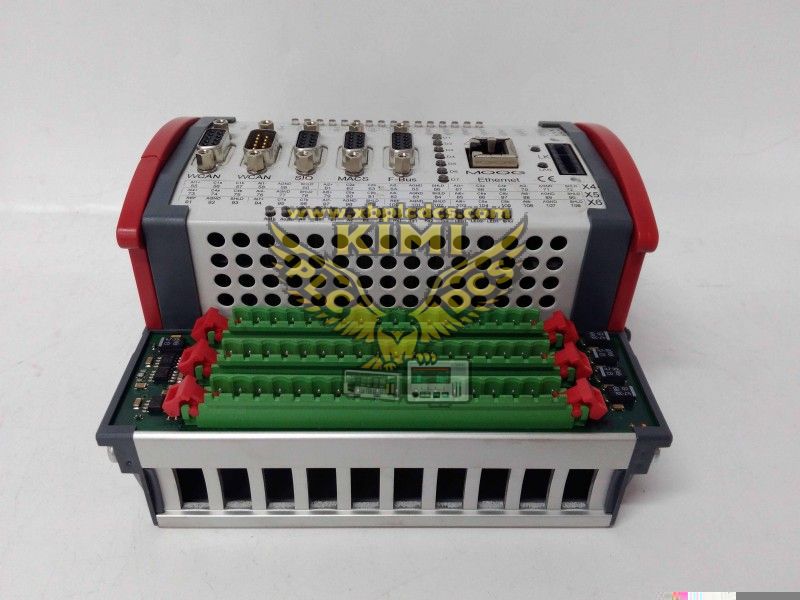

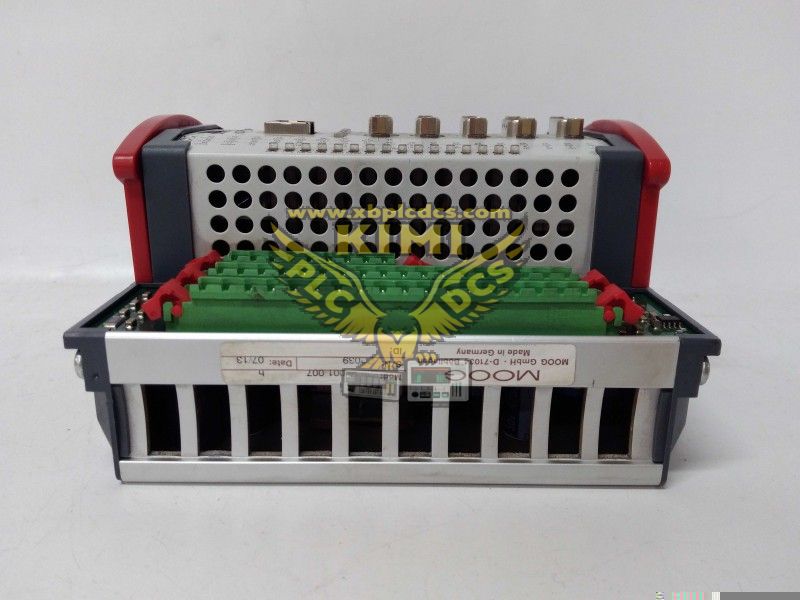

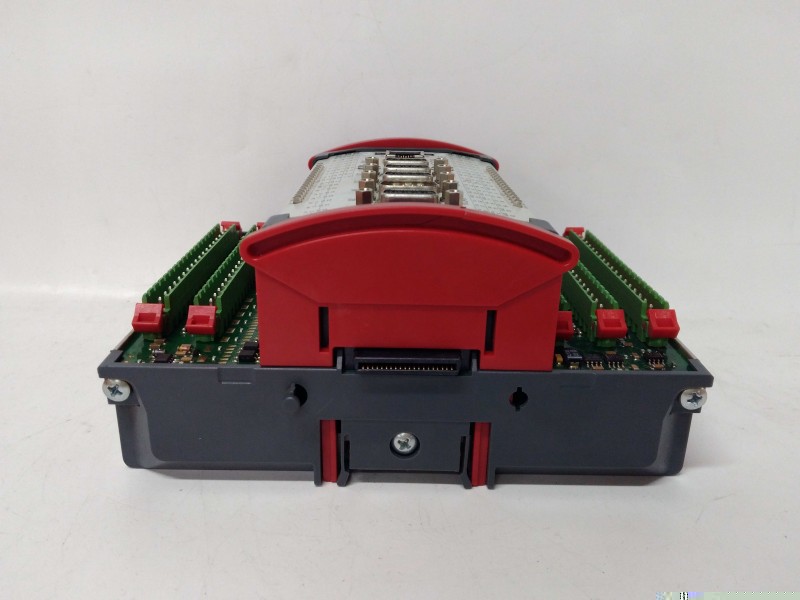

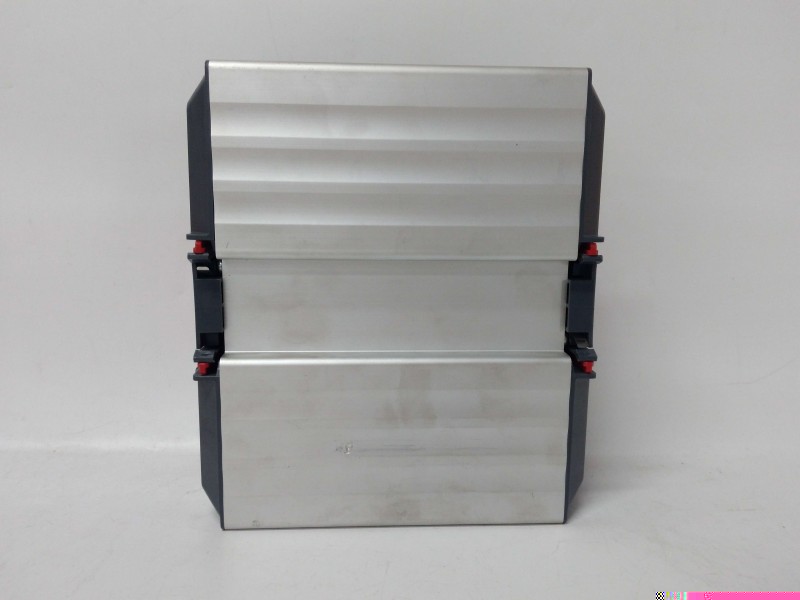

The MOOG D136-001-007 is a high-performance multi-axis servo motion controller designed for ultra-precise industrial motion control systems. Equipped with a 40 MHz high-speed CPU and 4 MB flash memory, it delivers fast response cycle time down to 400 microseconds, supporting closed-loop control of position, speed, and force. Featuring 16-bit high-resolution analog I/O and dual configurable encoder interfaces, this compact controller ensures stable and high-dynamic motion regulation. Fully programmable via Moog MACS software compliant with IEC 61131 standards, it integrates PLC logic and advanced servo algorithm functions. Built for long-term continuous operation in high-precision automation environments, tested surplus and refurbished MOOG D136-001-007 units are available for equipment maintenance and system retrofit upgrades.

Core Product Functions

• High-speed motion control with 400μs minimum task cycle for ultra-fast servo system response
• Precise closed-loop control of position, velocity, acceleration and force for multi-axis servo systems
• 8-channel 16-bit resolution analog inputs and 2-channel analog outputs for high-precision signal acquisition and output
• Dual configurable encoder interfaces supporting SSI and incremental encoder signal feedback
• Integrated digital I/O ports for interlock logic, limit detection and equipment status monitoring
• Full programmability via Moog MACS software with standard IEC 61131 programming environment
• Built-in PLC function realizes independent logic control and motion synchronous linkage
• Supports complex trajectory planning, multi-axis synchronous operation and customized motion algorithm tuning

• Real-time system diagnosis, fault recording and parameter storage for equipment condition analysis

Application Scenarios

• High-precision CNC machine tools and industrial robot multi-axis motion control systems
• Aerospace test equipment, flight simulation and precision attitude control platforms
• Automotive intelligent manufacturing, welding, assembly and automated production lines
• Semiconductor processing equipment, precision electronic component manufacturing machinery
• Medical precision equipment, packaging machinery and high-end automated processing systems

• Legacy Moog servo control system maintenance, controller replacement and precision motion system retrofits

FAQ (Frequently Asked Questions)

• Q: Servo motion jitters after replacing MOOG D136-001-007?
  A: Check encoder signal connection, analog signal shielding, controller parameter matching, motion algorithm tuning and I/O signal interference.
• Q: Does D136-001-007 support hot-swap replacement?
  A: Hot swap is not allowed. Cut off system power, release residual voltage and execute lockout-tagout procedures before replacement to avoid system crash.
• Q: What programming software is compatible with this controller?
  A: It adopts Moog MACS programming software, supporting standard IEC 61131 programming languages for motion logic development and parameter configuration.
• Q: What encoder types does D136-001-007 support?
  A: It supports both SSI absolute encoder and incremental encoder signals with flexible master/slave mode configuration.
• Q: Is MOOG D136-001-007 available for new projects?
  A: This legacy high-precision servo motion controller has reached end-of-life. Only fully tested surplus and refurbished units are supplied for existing system maintenance and retrofits.
