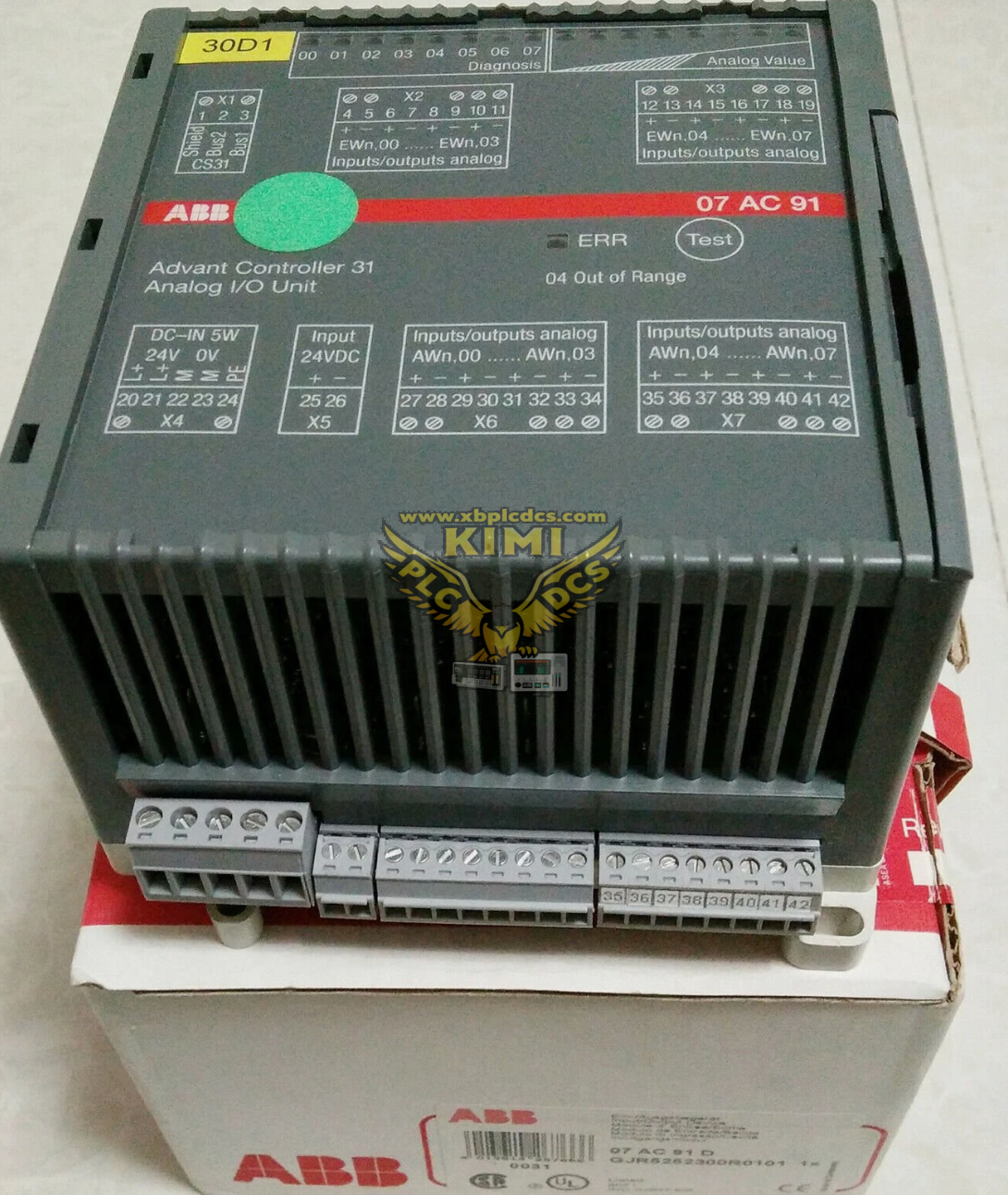

ABB 07AC91 (GJR5252300R0101) CS31 Remote Analog I/O Module

Product Description

07AC91 is a remote distributed analog input‑output module for ABB Advant Controller AC31‑90 PLC system, communicating via CS31 RS‑485 fieldbus. The module supports two hardware‑switch‑selectable operating modes: 8AI+8AO with 12‑bit resolution or 16 configurable I/O channels at 8‑bit resolution. It accepts voltage (±10 V) and current (0‑20 mA / 4‑20 mA) analog signals from field transmitters, pressure sensors, temperature transducers, and drives analog actuators such as proportional valves and power set‑point interfaces. DIN‑rail mount, 24 VDC powered, IP20 protection; widely used as distributed I/O node for factory auxiliary equipment, semiconductor fab utility skids and legacy process automation systems.

Key Functions

• Mode‑1 (12‑bit): 8 analog inputs + 8 analog outputs, range ±10 V / 0‑20 mA, resolution 12‑bit plus sign bit
• Mode‑2 (8‑bit): total 16 channels, channel‑pair configurable as input or output, 8‑bit resolution
• CS31 field‑bus slave interface; exchanges analog process data with AC31 PLC master controller over RS‑485 bus
• Input impedance high for voltage mode (~100 kΩ); built‑in shunt resistor for current loop signals 0‑20 mA /4‑20 mA
• Over‑range / under‑range detection for each analog channel, front‑panel LED diagnostic indicators (ERR, Test, Out‑of‑Range)
• Channel‑to‑bus galvanic isolation to suppress ground‑loop noise and transient surge interference from field sensors
• Screw‑type plug‑in terminal blocks for field wiring; DIP switches for operating‑mode and station‑address configuration
• Operating temperature range: 0 °C ~ +55 °C; power consumption max 5 W, supply 24 VDC (20‑28 VDC)

Application Scenarios

• ABB AC31‑90 PLC CS31 distributed I/O automation systems
• Utility skids inside semiconductor fabs: gas mixing cabinets, wastewater treatment, exhaust abatement local control
• Pressure, flow, temperature analog signal acquisition; proportional analog valve / actuator set‑point drive
• Legacy factory automation, machine‑building, water‑treatment and process‑auxiliary control cabinets
• DIN‑rail cabinet installation, IP20 indoor non‑hazardous industrial environment

Common Issues & FAQ

• CS31 bus fault / module offline: Check bus‑station DIP‑switch address (no address conflict); verify 120 Ω bus termination resistor at bus physical endpoints; inspect RS‑485 cable shielding, grounding and cable length limits; check 24 VDC module supply voltage.
• Analog reading drifting or offset error: Confirm wiring for current‑loop signal; check field sensor loop power; verify module operating‑mode DIP‑switch setting matches software configuration; perform channel offset calibration in PLC program.
• Analog output cannot reach target set‑point: Check output load impedance is within module specification (max 500 Ω for voltage output); inspect terminal screw torque and connector oxidation; verify PLC output word value sent over CS31 bus.
• Out‑of‑range LED lit: Measure field‑side signal amplitude; confirm sensor signal range matches module hardware configuration; check for open‑loop in 4‑20 mA transmitter wiring.
• Refurbished / replacement‑unit note: After replacement, configure DIP‑switch station address and operation mode; execute CS31 bus scan, full‑channel analog loop‑back test, signal‑range validation and complete process‑sequence test before commissioning. Confirm compatibility with existing AC31 master firmware version.
