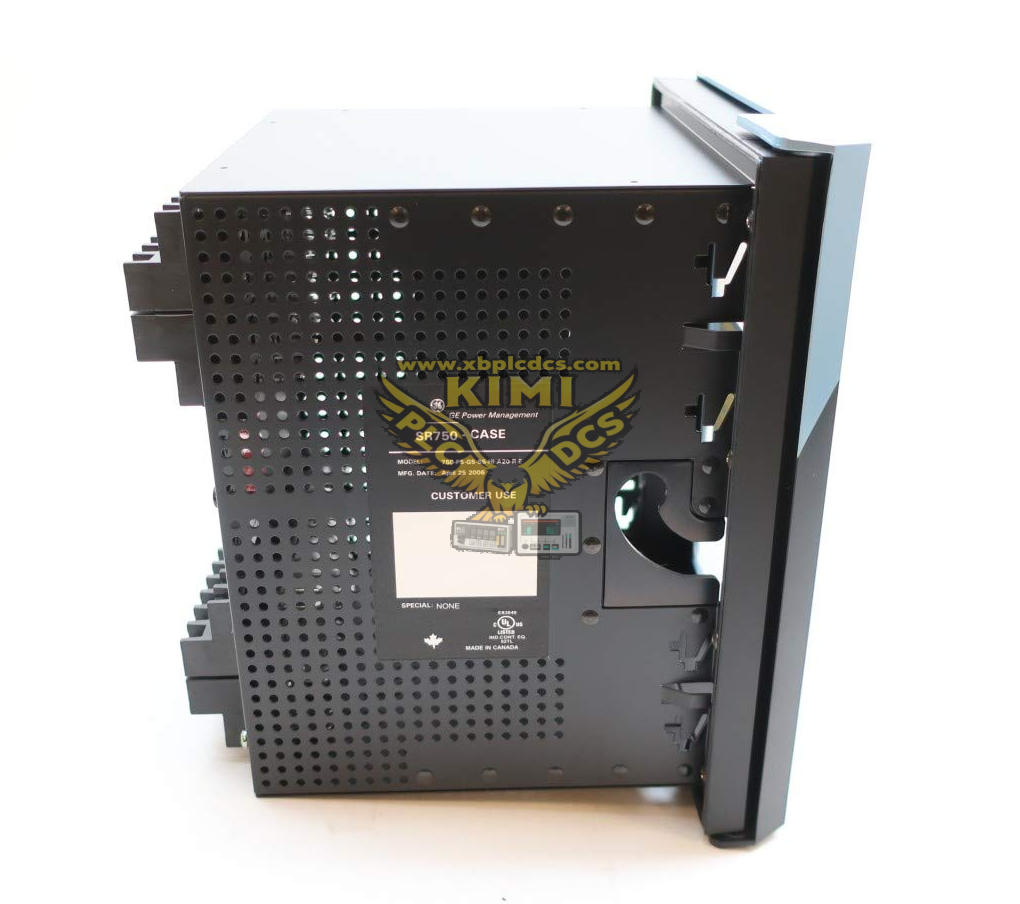

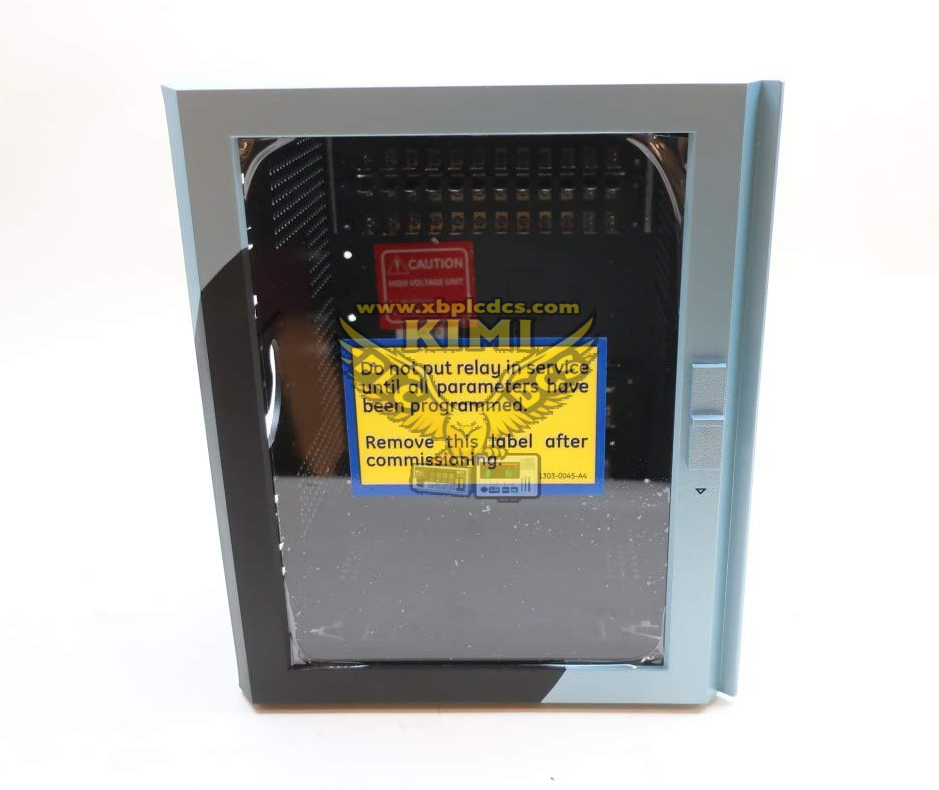

GE SRCASE-750-H-E-S-H Relay Case Assembly Overview
The GE SRCASE-750-H-E-S-H is a heavy-duty relay case assembly designed for GE’s industrial control and protection systems, engineered to house and protect critical relay components in high-demand industrial environments. As a key hardware accessory, it combines robust mechanical construction with functional design, ensuring reliable operation of relays in power generation, distribution, and industrial automation applications.
Tailored for harsh operating conditions, the assembly features enhanced environmental resistance, secure mounting options, and compatibility with GE’s SR series relays. Its modular design facilitates easy installation, maintenance, and replacement of internal components, while complying with international industrial standards for safety and durability.
Core Features & Technical Advantages
- Heavy-Duty Construction: Manufactured with high-grade steel housing (painted finish) for exceptional mechanical strength, impact resistance, and protection against physical damage in industrial settings.
- Enhanced Environmental Protection: IP65-rated enclosure provides dustproof and waterproof protection, suitable for indoor and outdoor installations in humid, dusty, or corrosive environments.
- Precision Compatibility: Custom-engineered to fit GE SR series relays (750A rating), with precise internal mounting points and terminal access to ensure seamless integration and reliable electrical connections.
- Heat Dissipation Design: Integrated ventilation slots and thermal management structure prevent overheating of internal relay components, extending operational lifespan in high-temperature environments.
- Secure Mounting Options: Supports both wall-mounted and panel-mounted installation (with included mounting brackets and hardware), enabling flexible deployment in control cabinets or field locations.
- Easy Access & Maintenance: Removable front cover with secure latching mechanism allows quick access to internal relays for inspection, testing, and replacement without disassembling the entire assembly.
- Electromagnetic Shielding: Steel housing provides natural EMI/RFI shielding, reducing electromagnetic interference and ensuring stable performance of sensitive relay electronics.
Compliance with Standards: Meets UL, CE, and IEC industrial safety standards, ensuring compatibility with global electrical codes and regulatory requirements.
Key Technical Specifications
| Specification Category | Details | Remarks |
|---|---|---|
| Model Information | GE SRCASE-750-H-E-S-H | Relay case assembly for GE SR series (750A) |
| Construction & Material | Housing Material: Galvanized steel (painted) Cover Material: Steel with transparent inspection window (optional) | Corrosion-resistant and durable |
| Protection Rating | IP65 (dustproof, waterproof) | Suitable for harsh indoor/outdoor environments |
| Compatible Relays | GE SR series relays (750A current rating) | Precision-fit for seamless integration |
| Environmental Ratings | Operating Temp: -40°C to 85°C Humidity: 5-95% (non-condensing) Corrosion Resistance: IEC 60068-2-11 | Adapts to extreme industrial conditions |
| Physical Dimensions | 350mm × 250mm × 180mm (W×H×D) Weight: Approx. 8.5kg (empty) | Compact design for space-constrained installations |
| Mounting Type | Wall-mounted / Panel-mounted (with included brackets) | Flexible deployment options |
| Certifications | UL, CE, IEC 60529 (IP65), RoHS | Compliant with global safety and industrial standards |
Application Scenarios & YMGK Purchase Support
Target Industries & Use Cases
The GE SRCASE-750-H-E-S-H is widely used in industries requiring robust relay protection and control, including:
Power Generation & Distribution
Substation control, generator protection, power grid relay systems, transformer monitoring
Industrial Automation
Factory control cabinets, motor control centers, conveyor system protection, heavy machinery relays
Oil & Gas
Offshore platform control systems, pipeline relay protection, refinery electrical systems
Infrastructure & Utilities
Water treatment plants, wastewater facilities, renewable energy (solar/wind) relay enclosures
YMGK Procurement Services
- Global 121 shared inventories, direct procurement from overseas warehouses for fast delivery
- 100% brand new and original GE SRCASE-750-H-E-S-H assemblies with one-year warranty
- Volume discounts available for bulk orders; price matching with other suppliers
- Professional technical support for installation guidance and compatibility verification
- 24/7 customer service to address procurement and after-sales inquiries
