The part number HMD01.1N-W0012-A-07-NNNN corresponds to a Bosch Rexroth HMD01 Double-Axis Inverter. This is a sophisticated component within industrial automation, specifically designed for controlling two motors.

Product Description

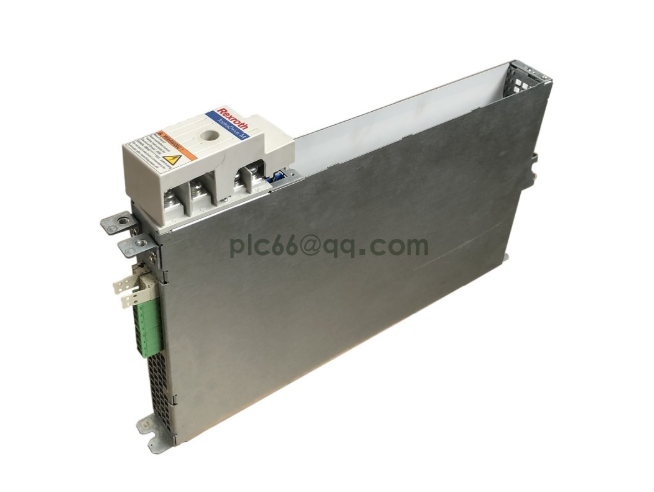

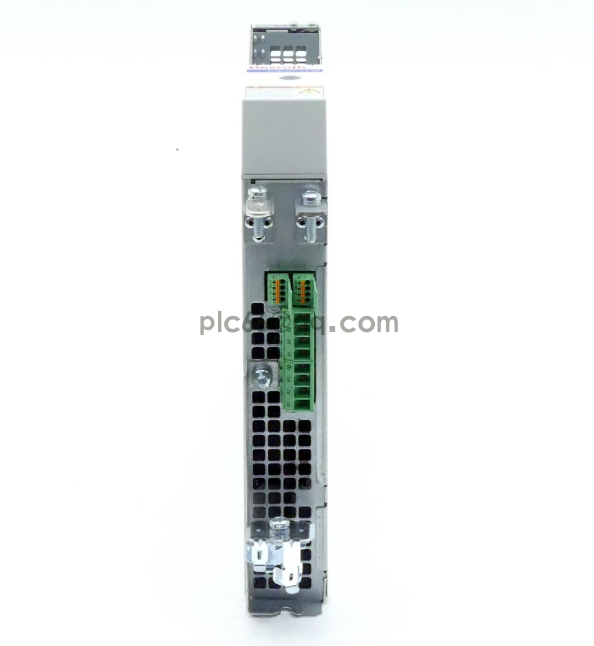

The Bosch Rexroth HMD01.1N-W0012-A-07-NNNN is a double-axis inverter that belongs to the ctrlX DRIVE series (and is also associated with the IndraDrive M system). Its primary function is to convert DC voltage from a power supply unit into two independently controlled AC output voltages with variable amplitude and frequency, thereby facilitating the precise operation of two motors.

This inverter is notable for its space-saving compact design (typically 50 mm wide) and its ability to connect directly to the DC bus of various Bosch Rexroth supply units (like XVE, XVR, XCS, or XCD converters). It features internal air cooling with an integrated blower to ensure optimal thermal management during operation.

A key advantage is its support for single-cable technology with compatible MS2N synchronous servo motors, which significantly reduces wiring complexity for cable lengths up to 75 meters without requiring additional components. The inverter also offers versatility in motor encoder selection, supporting various types such as Resolver, AcuroLink, Hiperface, EnDat 2.1, and SSI through an optional multi-encoder interface. Its integrated safety technology ensures compliance up to SIL3 standards, making it suitable for safety-critical industrial environments.

Product Specifications

• Manufacturer: Bosch Rexroth (Indramat)
• Model: HMD01.1N-W0012-A-07-NNNN
• Bosch Rexroth Part Number: R911306439
• Product Type: Double-Axis Inverter / Drive Controller
• Number of Axes: 2
• Compatible System: ctrlX DRIVE series, IndraDrive M
• Nominal DC Bus Voltage: 700 VDC
• DC Bus Voltage Range: 254V to 750V
• Effective Peak Current: 12 A (for total power)
• Continuous Current: Typically 6.9 A
• Current-Carrying Capacity per Axis: Often specified around 1.5 A (check specific datasheet for exact per-axis continuous current).
• Output Voltage: 0-530 V
• Switching Frequency / Max. Output Frequency:
• @4 kHz: 0-400 Hz
• @8 kHz: 0-800 Hz
• Motor Rating (Typical): 3 kW
• Cooling Method: Internal air cooling with integrated blower
• International Protection Code: IP20 (suitable for cabinet mounting)
• Dimensions (H x D x W): Approximately 440 mm x 309 mm x 50 mm
• Weight: Approximately 5.5 - 5.8 kg (12.1 - 12.8 lbs)
• Safety Integrated: Integrated safety technology up to SIL3 standards.
• Motor Encoder Support: Optional multi-encoder interface compatible with Resolver, AcuroLink, Hiperface, EnDat 2.1, SSI.
• EMC Environment: EN 61800-3 compliant.
• Discharge Time: 30 minutes after power-off.

Product Application Cases

The Bosch Rexroth HMD01.1N-W0012-A-07-NNNN is a versatile double-axis inverter, making it ideal for motion control applications in various industrial sectors where compact, efficient, and precise control of multiple motors is required.

• Packaging Machinery: Used in automated packaging lines to control the synchronized movements of multiple motors for filling, sealing, labeling, and conveying tasks, ensuring high throughput and accuracy.
• Printing and Paper Processing: Applied in printing presses, cutting machines, and winding/unwinding systems to precisely control web tension and material feeding for two independent axes, crucial for print quality and material handling.
• Machine Tools: Employed in CNC machines and other precision machine tools for controlling axes that require coordinated movement, such as feeding mechanisms or tool changers.
• Material Handling and Logistics: Integrated into automated storage and retrieval systems (AS/RS), conveyor systems, and robotic cells to control the synchronized motion of motors for picking, placing, and transporting goods.
• Food and Beverage Industry: Used in various processing and packaging machines where hygienic design and precise control are essential for handling products.
• Textile Machinery: Controls multiple motors in weaving, knitting, and finishing machines, ensuring precise fabric movement and tension.
