The MSK060C-0600-NN-M1-UG0-NNNN is a high-performance synchronous servo motor from the Bosch Rexroth IndraDyn S MSK series. These motors are renowned for their precision, dynamics, and power density, making them a cornerstone in advanced motion control applications.

Product Description

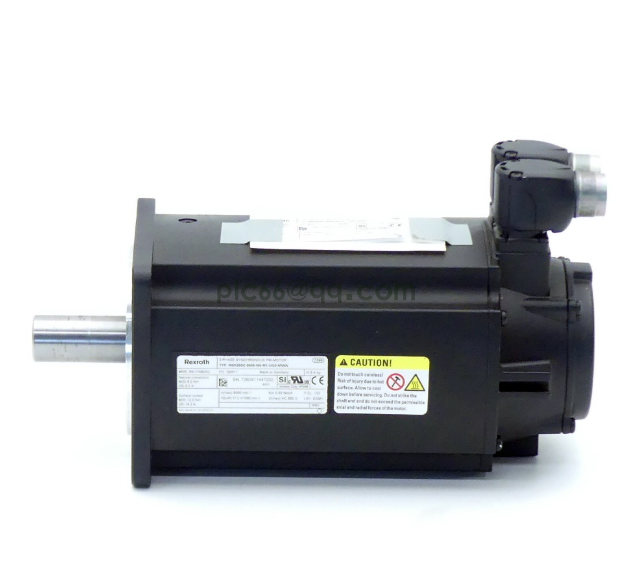

The Bosch Rexroth MSK060C-0600-NN-M1-UG0-NNNN is a three-phase permanent magnet synchronous servo motor. It's part of the IndraDyn S series, which is designed for applications requiring highly dynamic motion and precise positioning. The "MSK" designation indicates a compact and powerful motor, optimized for applications where space is at a premium but high torque and acceleration are needed.

The motor features a robust design with a high protection class (typically IP65), making it suitable for demanding industrial environments with exposure to dust and water. It often comes with a rotatable plug for flexible electrical connection. Key features include high continuous torque and current at standstill, good thermal characteristics, and a wide speed range. The "M1" in the part number signifies a multi-turn absolute encoder with a Hiperface interface, which provides high-resolution position feedback without needing a homing cycle after power loss.

Product Specifications

• Manufacturer: Bosch Rexroth (Indramat)
• Series: IndraDyn S MSK Synchronous Motors
• Model Code Breakdown:
• MSK: IndraDyn S Synchronous Motor
• 060: Flange size (e.g., 60 mm frame size)
• C: Length code of the motor
• 0600: Winding code
• NN: (Often indicates "No holding brake" and "Standard shaft extension")
• M1: Multi-turn absolute encoder, Hiperface, with motor feedback.
• UG0: Electrical connection, typically a 240-degree rotatable plug.
• NNNN: (Additional options, typically "No specific options")
• Typical Performance Data (for MSK060C-0600):
• Continuous Torque at Standstill (60 K): 8.0 Nm
• Continuous Current at Standstill (60 K): 4.8 A (RMS)
• Continuous Torque at Standstill (100 K): 8.8 Nm
• Continuous Current at Standstill (100 K): 5.3 A (RMS)
• Maximum Torque: Up to 24.0 Nm
• Maximum Current: Up to 38.0 A (RMS)
• Maximum Speed: Up to 6,000 min⁻¹ (RPM)
• Moment of Inertia of the Rotor: 0.00080 kg·m²
• Thermal Time Constant: 14.0 min
• Electrical Connection: Rotatable plug (240 degrees).
• Encoder: Absolute multi-turn encoder with Hiperface interface for precise position feedback.
• Protection Class: Typically IP65 (dust-tight and protected against water jets).
• Insulation Class: Typically 155 (F) according to DIN EN 60034-1.
• Weight: Approximately 8.4 kg (varies slightly with options like brake).
• Ambient Temperature (Operation): 0 to 40 °C.

Product Application Cases

The Bosch Rexroth MSK060C-0600-NN-M1-UG0-NNNN servo motor is highly versatile and used in a wide array of demanding industrial automation applications that require precise, dynamic, and reliable motion control.

• Machine Tools: Essential for axes control in CNC machines, milling machines, lathes, and grinding machines, where precise positioning, high acceleration, and smooth operation are critical for machining accuracy and surface finish.
• Packaging Machinery: Used in high-speed, highly automated packaging lines for tasks like filling, sealing, cutting, and robotic pick-and-place, ensuring rapid and accurate product handling.
• Robotics: Provides the precise and dynamic motion for various types of industrial robots, including articulated robots, SCARA robots, and linear robots, enabling complex movements and high-speed operation.
• Printing and Paper Processing: Employed in printing presses, paper converting machines, and web handling systems for precise web tension control, registration, and material feeding.
• Material Handling and Logistics: Integrated into automated storage and retrieval systems (AS/RS), conveyor systems, and gantry robots for fast and accurate positioning of goods.
• Textile Machinery: Used in advanced textile machines for precise control of fabric movement, weaving, knitting, and winding processes.
• Food and Beverage Industry: Applied in processing and packaging machines where hygiene, precision, and reliable operation are paramount.
