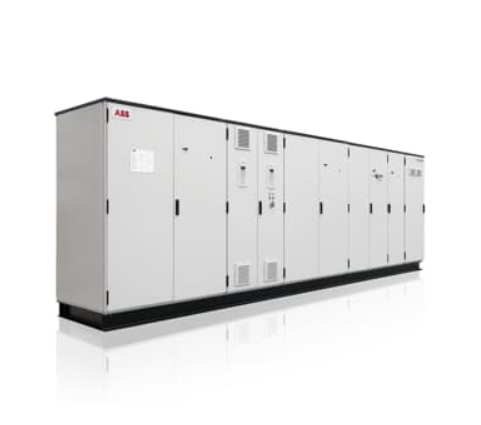

The entire ACS6000 system

The ACS6000 is an advanced medium-voltage AC drive device launched by ABB. The following is its related introduction:

Technical characteristics

Direct Torque Control (DTC) : It achieves high-precision torque and speed control in medium-voltage transmission fields. The torque response time is 10 times faster than traditional control methods, featuring minimal torque ripple and precise static speed and torque control.

Integrated Gate Converter Thyristor (IGCT) : Specifically developed for medium-voltage frequency converters, based on the mature GTO technology, it integrates the high-speed switching characteristics of IGBT and the high blocking voltage and low conduction loss characteristics of GTO, thereby enhancing the efficiency and reliability of the frequency converter.

Active Rectifier Unit (ARU) : Allows for four-quadrant operation, making regenerative braking possible in both forward and reverse directions throughout the entire power range. Controlling the power factor to 1 throughout the entire operating range can compensate for the reactive power generated by other loads connected to the same power grid at any time, and reduce and eliminate harmonics on the main power grid through predefined, pulse-optimized modes.

Common DC busbar: By connecting multiple rectifiers and inverters to the same DC busbar, it allows multiple drive loads to be connected to a single frequency converter. The energy generated by the braking of a certain motor can be transferred to other inverters through the DC busbar, thereby improving energy utilization efficiency.

Hardware structure

Phase module: Each phase module is composed of IGCT, diodes and clamping capacitors.

Gate Power Supply Unit (GUSP) : Provides energy for IGCT.

EMC filter: Prevents sudden voltage changes on the secondary side of the transformer.

Fast Short Circuit Detection (FSCD) board: Detects whether a short circuit has occurred in the main power circuit.

Anti-saturation equipment (ASE) : Prevents the transformer from entering a saturated state.

Voltage and current detection boards: including high-voltage distribution boards (HVD), current and voltage measurement interface boards (CVMI), etc., are used to measure DC voltage and AC current, and convert the signals into digital signals for transmission to the interface boards.

Inverter Unit (INU) : Self-converging, 6-pulse and 3-level voltage-type inverters, allowing for four-quadrant operation, and also including charging circuits and grounding switches, etc.

Control Unit (COU) : It has the function of monitoring the entire transmission system and cooling system. Its main components include AMC3 controller, S800 I/O module, CDP312 control panel, etc.

Water-cooled Unit (WCU) : It provides internal circulation cooling water to the power components in the main circuit, exchanges the heat generated by the power components with the external circulation cooling water, and continuously purifies the internal circulation cooling water.

Voltage Limiting Unit (VLU) : Under overvoltage conditions, it discharges the capacitor in the DC circuit in real time to reduce it to the rated voltage level.

Application fields: The power range of variable speed transmission is from 3MVA to 33MVA, and the output frequency is from 0 to 75Hz. It is suitable for the shipbuilding industry, oil and gas industry, metallurgy and mining industry, as well as general industrial fields, etc. It can provide various transmission modes such as single-motor drive, multi-motor drive, redundant drive, and twin drive to meet different application requirements

For more product information, please click to visit the official website  or consult the relevant sales staff

Sales Manager: Li Ming

WeChat: 18059884790

WHATSAPP:+86 18059884790

Email:plc66@qq.com

ACS6000    1SAM340000R1010    CIRCUIT BREAKER FOR TRANSFORMER PROTECTI    MANUAL MOTOR STARTER

ACS6000    1SAM340000R1013    CIRCUIT BREAKER FOR TRANSFORMER PROTECTI    MS132-20T / 16 - 20 A

ACS6000    1SAM340000R1014    CIRCUIT BREAKER FOR TRANSFORMER PROTECTI    MS132-25T / 20 - 25 A

ACS6000    1SAM401901R1001    Aux.cont.    Aux.cont.

ACS6000    1SAM450000R1005    Motor protection switch    Motor protection switch

ACS6000    1SAX701902R1011    Accessory set    Accessory set

ACS6000    1SAX711001R1101    EL OVERLOAD RELAY E500 DU 500 150-500A    EL OVERLOAD RELAY E500 DU 500 150-500A

ACS6000    1SAX801902R0001    MOUNTING KIT      DT800/AF750S FOR O/L    MOUNTING KIT      DT800/AF750S FOR O/L

ACS6000    1SAX821001R1101    ELECTRONIC OVERLOAD RELAY    EF750-800

ACS6000    1SAZ421301R1003    THERMAL OVERLOAD RELAY    TA 200 DU 135 V1000

ACS6000    1SAZ421301R1006    THERMAL OVERLOAD RELAY    TA 200 DU 200 V1000

ACS6000    1SAZ511301R1002    THERMAL OVERLOAD RELAY    TA 450 DU 235 V1000

ACS6000    1SAZ511301R1003    THERMAL OVERLOAD RELAY    TA450 DU 310 V1000

ACS6000    1SBL137501R1100    CONTACTOR    AF09-22-00-11 24-60VDC

ACS6000    1SCA022042R6110    SHAFT F. FUSE DISC.SWITCH    OESA250DV12PL1

ACS6000    1SCA022439R4050    GRIFF             OHB4 F OS32-160    GRIFF             OHB4 F OS32-160

ACS6000    1SCA022753R5920    Shaft    Shaft

ACS6000    1SFA739001R1000    Thermal relay     E 1250 DU, 375-1250A    Thermal relay     E 1250 DU, 375-1250A

ACS6000    1SFL497001R7022    CONTACTOR         AF185-30-22    CONTACTOR         AF185-30-22

ACS6000    1SFL537001R7022    CONTACTOR         AF260-30-22    CONTACTOR         AF260-30-22

ACS6000    1SFL597001R7022    CONTACTOR         AF460-30-22    CONTACTOR         AF460-30-22

ACS6000    1SVR430750R0400    Window voltage monitor CM-EFS, 2c/o    Window voltage monitor CM-EFS, 2c/o

ACS6000    1SVR450075R0000    Mon. relay CM-IWN-AC, earth-leakage    Mon. relay CM-IWN-AC, earth-leakage

ACS6000    1SVR550107R1100    Time relay  ON energised    CT-ERE 1c/o

ACS6000    1SVR630660R0100    Insulation monitor CM-IWS.1    Insulation monitor CM-IWS.1

ACS6000    1SVR630794R3300    MON.RELAY    MON.RELAY

ACS6000    1SVR650488R8300    CM-MPN.62,Mon.relay,3x450-720VAC    CM-MPN.62,Mon.relay,3x450-720VAC

ACS6000    1SVR730180R3300    Time relay ON de-energised    CT-APS.22S. ruuviliitäntä

ACS6000    1SVR730794R3300    Control relay    CM-PVS.41S. ruuvi.2c/o.300-500VAC

ACS6000    26140056    SPRING WASHER    FAJD 4.1Y DIN127 NOT GALVAN.

ACS6000    2CSM210000R0721    SCHUKO SOCKET    M1175

ACS6000    3106000021    12MM/10MM CONNECT 12MM/10MM CONNECTOR    12MM/10MM CONNECT 12MM/10MM CONNECTOR

ACS6000    3ADC340099P0001    THYRISTOR MODULES MT3-595-16-A    MT3-595-16-A

ACS6000    3ADC770010P0009    FUSE 170M6166 125 FUSE 170M6166 1250A/66    FUSE 170M6166 125 FUSE 170M6166 1250A/66

ACS6000    3ADT218425R0002    SPECIAL DCS800 DCS800-S03-0900+L508 (CH)    SPECIAL DCS800 DCS800-S03-0900+L508 (CH)

ACS6000    3ADT218435R0001    SPECIAL DCS800 DCS800-S01-0900+L508 (CH)    SPECIAL DCS800 DCS800-S01-0900+L508 (CH)

ACS6000    3ADT220134R0001    DDCS COMM., COM-81, 10MB, SET    SDCS-COM-81

ACS6000    3ADT315100R1012    POWER SUPPLY    SDCS-POW-4-SD

ACS6000    3ADT621023P0001    DISASSEBLY TOOL    THYRISTOR TOOL (A5.A6.D5.D6)

ACS6000    3ADT754018P0002    VENTILATOR  A5-CONV. D2E 160-AH02-15    D2E 160-AH02-15

ACS6000    3BHB000500R0001    SOLID STATE RELAY GF    3-32VDC 1-200VDC.10A

ACS6000    3BHB000600P0110    CIRCUIT BREAKER    PKZM 0-10/SE00-11

ACS6000    3BHB000601P0107    CIRCUIT BREAKER    PKZM 0-2.5/S00-11

ACS6000    3BHB000602P0007    MOT.CIRC. BREAKER    PKZ2/ZM10

ACS6000    3BHB000602P0010    MOTOR CIRCUIT BREAKER    PKZ2/ZM-32(24..32)

ACS6000    3BHB000602P0011    MOTOR CIRCUITBREA    PKZ2/ZM-40(32...40)

ACS6000    3BHB000605P0106    KOMPACTSTARTER    PKZ2/ZM6/S

ACS6000    3BHB000605P0107    CIRCUIT BREAKER    PKZ2/ZM-10/S

ACS6000    3BHB000605P0108    KP-STARTER    PKZ2/ZM-16/S(230V50/60Hz)

ACS6000    3BHB000605P0109    CIRCUIT BREAKER    PKZ2/ZM-25/S

ACS6000    3BHB000605P0110    COMPACT-STARTER    PKZ2/ZM-32/S. IR=25-32

ACS6000    3BHB000605P0111    KOMPACTSTARTER    PKZ2/ZM40/S

ACS6000    3BHB000606P0002    SURGE SUPPRESSOR    VG SPKZ 250

ACS6000    3BHB000607P0002    SURGE SUPPRESSOR    VG DIL E 250

ACS6000    3BHB000623P0002    MINIATUR CIRCUIT    FAZ-C1

ACS6000    3BHB000623P0003    MINI CIRC.BREAKER    (IN=2A.415V) FAZ C2

ACS6000    3BHB000623P0006    MINIATURE CIRCUIT    FAZ C6. IN=6A. 415V

ACS6000    3BHB000623P0007    MINI CIRC.BREAKER    (IN=10A.415V FAZ-C10

ACS6000    3BHB000623P0009    MINIATURE CIRCUIT    FAZ-C16 (In=16A.415V)

ACS6000    3BHB000623P1004    MINIATURE CIRCUIT BREAKER    FAZ-C3/1

ACS6000    3BHB000623P1005    MINIATURE CIRCUIT BREAKER    FAZ-C4/1

ACS6000    3BHB000623P1006    CIRCUIT BREAKER    FAZ-C6/1 MINIATURE

ACS6000    3BHB000623P1008    MINICIRCUITBREAKE    FAZ-C13/1

ACS6000    3BHB000631P0001    FIM-PROTECTION SW    FAZ-2-C10-FIM0.03

ACS6000    3BHB001170P0001    CAPACITOR    0.47UF/1000V 10%

ACS6000    3BHB001306R0002    DOOR POSIT.SWITCH    SZ2586

ACS6000    3BHB001575P0001    TIM.RELAY/FINDER    87.61 0 240 0000. 1CO.

ACS6000    3BHB001869R0200    SWITCH EMERGENCY STOP    3NC+1NO

ACS6000    3BHB002295P0010    ANTI SAT. RESIST.    105W. 540K. 10%

ACS6000    3BHB002295P0011    ANTI SAT. RESIST.    54W. 270K. 10%

ACS6000    3BHB002947R0001    ISOLATOR    3.6 KV M10/M10 H=60

ACS6000    3BHB003188P0010    ASE FILTER CAPACITOR    KMKP 3500-0.10SA/100NF

ACS6000    3BHB004719R0001    PULSE TRANSFORMER    T60407-B4803-X010 10kV

ACS6000    3BHB005243R0103    GUSPUNIT COMPLETE GUSP    KU C755 AE03

ACS6000    3BHB005243R0105    GATE UNIT POWER    S KU C755 AE105:GUSP

ACS6000    3BHB005243R0106    GATE UNIT POWER    S KU C755 AE106:GUSP

ACS6000    3BHB005243R0107    GATE UNIT POWER    S KU C755 AE107

ACS6000    3BHB005243R0117    GATE UNIT POWER    S KU C755 AE117

ACS6000    3BHB005245R0101    Subboard PCB assembled varn.    KU C755 AE

ACS6000    3BHB005464R0001    ISOLATOR    3.6 KV M10/M10 H=55

ACS6000    3BHB005858R0003    MV-LINT (NS) UNIT DD    C330 BE03

ACS6000    3BHB006457R0001    DIODE    D1031SH45TS02

ACS6000    3BHB006516R0003    CAPACITOR    5.75 UF (-2% / 5%). 4.5KVMAX. 70A

ACS6000    3BHB006541P0002    SUPPRESSOR    VG - A / 24

ACS6000    3BHB006621R0104    BOARD, ANTI-SATUR    UA C375 AE104

ACS6000    3BHB006624R0001    CABLE RADOX    CABLE RADOX

ACS6000    3BHB006872P0001    SAFETY LOCK.    AZM 170 -02ZRK 24VDC

ACS6000    3BHB006872P0002    SAFETY LOCK.    AZM 170 -02ZRK 230VAC

ACS6000    3BHB006873P0001    SAFETY LOCK    AZ 17-02 ZRK

ACS6000    3BHB007209R0001    SVA-BOARD    XV C767 AE01

ACS6000    3BHB007209R0102    VOLTAGE MEAS.SCAL    XV C767 AE102:SVA

ACS6000    3BHB007211R0101    CURRENT MEAS.SCAL    XV C768 AE101:SCA

ACS6000    3BHB007211R0102    CURRENT MEAS.SCAL    XV C768 AE102:SCA.7MVA

ACS6000    3BHB007211R0103    XV C768 AE103:SCA-BOARD (SUBPRINT)    XV C768 AE103

ACS6000    3BHB007211R0105    CURRENT MEAS.SCAL    XV C768 AE105:SCA

ACS6000    3BHB007211R0106    CURRENT MEAS.SCAL    XV C768 AE106:SCA.3MVA

ACS6000    3BHB007211R0117    SUBPRINTCURR.ADJ.    XV C768  AE117SCA

ACS6000    3BHB007211R0119    SUBPRINT ADJUSTIN    XV C768 AE119

ACS6000    3BHB007211R0122    XV C768 AE122: SUBPRINT SCA 4500A/4040A    XV C768 AE122

ACS6000    3BHB007211R0123    XV C768 AE123 SUBPRINT SCA    XV C768 AE123. 5100A/4580A

ACS6000    3BHB007433P0001    TRANSIENT ABSORB.    MVR 1

ACS6000    3BHB007437P0002    SYNCHR. TRANSFORM    M3V10-7/0-0 YYN0

ACS6000    3BHB007438R0001    THYRISTOR BRIDGE    WE-73-10 VEXU

ACS6000    3BHB007440P0001    INSULATION SUPERV    MR627

ACS6000    3BHB007444P0001    SHUNT RESISTOR    SH-750A/150mV-DIN

ACS6000    3BHB007459P0001    RC-UNIT    RC-EH 800/600

ACS6000    3BHB007700P0101    UNIVERSAL ISOLATION AMPLIFIER P27066 H1    UNIVERSAL ISOLATION AMPLIFIER P27066 H1

ACS6000    3BHB007705P0003    FUSE / 1KN/ 110    170M4260 315A 690V

ACS6000    3BHB007706P0001    SCREWFUSE    3BK80  170M6538

ACS6000    3BHB007706P0003    SCREWFUSE    3BK80  170M6540. 400A

ACS6000    3BHB007713P0001    Insulation supervision adapter    MZ 611

ACS6000    3BHB007732P0025    PIPE FIXING D25 ZIP 025 INTERAPPIA    D25 ZIP 025

ACS6000    3BHB008184P0001    Water pipe    EXU

ACS6000    3BHB008185P0001    Tree plug pipe    EXU

ACS6000    3BHB008186P0001    COVER PIPE    EXU

ACS6000    3BHB008188P0001    CONNECTING PIECE    CONNECTING PIECE

ACS6000    3BHB008308P0410    HOSE CLAMP    O41.0 WIDTH 7

ACS6000    3BHB008465R0001    Aux. Contactor    DIL-ER-40G / 24VDC

ACS6000    3BHB008956R0001    SWITCH, BYPASS    C18 CA20B SF2762

ACS6000    3BHB009162P0001    CHARGING TRANSFO.    PU180/63/E. 5kVA

ACS6000    3BHB009181P0001    CHOKE, CLAMP    5uH. 2200A. AIR COOLED

ACS6000    3BHB009181P0002    DIDT LIMITING IND    5uH. 3724Arms. air.wat

ACS6000    3BHB009182P0001    CHOKE, FILTER    12uH. 1800A

ACS6000    3BHB009183P0001    CAPACITOR, FILTER    250NF / 7400 VDC

ACS6000    3BHB009226R0002    CONTACT 2000 A WITH SUPPORT    PHASE MODULE FAST CONNECTORS 2000 A

ACS6000    3BHB009255R0001    WATER DISTR. PIPE DIODE L. COMPL.    WATER DISTR. PIPE DIODE L. COMPL.

ACS6000    3BHB009257R0001    WATER DISTRIBUTION PIPE DIODE R. COMPL    WATER DISTRIBUTION PIPE DIODE R. COMPL

ACS6000    3BHB009259R0001    WATER DISTRIBUTION PIPE IGCT LEFT COMPL.    WATER DISTRIBUTION PIPE IGCT LEFT COMPL.

ACS6000    3BHB009261R0001    WATER DISTRIBUTION PIPE IGCT R. COMPL.    WATER DISTRIBUTION PIPE IGCT R. COMPL.

ACS6000    3BHB009375P0001    HOLDER FOR RES.    HB010662R0120

ACS6000    3BHB009884R0002    PHASE MOD(S-073H) FOR 7 MV, HIGH IMPULSE    PHASE MODULE (S-073H)

ACS6000    3BHB009884R0004    PHASE MODULE    (S-073H)FOR 7 MV

ACS6000    3BHB009884R0013    PH. MOD.(S-073M)  FOR 7 MV,STAND.IMPULSE    PHASE MODULE (S-073M)

ACS6000    3BHB009884R0014    PHASE MODULE    (S-073M)FOR 7 MV

ACS6000    3BHB009884R0021    PHASE MODULE    PHASE S-073N

ACS6000    3BHB009884R0022    PHASE MODULE    PHASE- S-073N

ACS6000    3BHB009884R0204    PHASE  MODULE    PHASE  S-073H

ACS6000    3BHB009885R0002    PHASE MOD(S-093H) FOR 9 MV, HIGH IMPULSE    PHASE MODULE (S-093H)

ACS6000    3BHB009885R0004    PHASE MOD(S-093H) FOR 9 MVA    PHASE MODULE (S-093H)

ACS6000    3BHB009885R0013    PH. MOD.(S-093M)  FOR 9 MV,STAND.IMPULSE    PHASE MODULE (S-093M)

ACS6000    3BHB009885R0014    PHASE MOD(S-093M) FOR 9 MV    PHASE MODULE (S-093M)

ACS6000    3BHB009885R0021    PHASE MODULE    PHASE S-093N

ACS6000    3BHB009885R0031    PHASE MODULE    PHASE S-093S

ACS6000    3BHB009885R0104    PHASE MODULE    PHASE S-093H

ACS6000    3BHB009946R0001    CAPACITOR,SNUBBER    10uF. 3200V. Film

ACS6000    3BHB010055R0001    THYRISTOR BRIDGE    WE-49-07B-450

ACS6000    3BHB010055R0002    WE-49-07BX    THYRISTOR AC CONTROLLER

ACS6000    3BHB010568R0001    RELAY    RM302024. 24VDC

ACS6000    3BHB010569R0001    RELAY    RM602024. 24VDC

ACS6000    3BHB010570R0001    RELAY SOCKET    RM 78 705

ACS6000    3BHB010662R0010    RESISTOR    2x5 Ohm. 5%

ACS6000    3BHB010662R0120    RESISTOR WTRCOOL    1000W. 12KOHM. 10%

ACS6000    3BHB010662R0250    RESIS.WATERCOOLED    1000W. 25KOHM. 10%

ACS6000    3BHB010662R0500    RESIS.WATERCOOLED    1000W. 50KOHM. 10%

ACS6000    3BHB010729R0001    CHOKE, IRON CORE    0.35mH. 1590A. 3300V

ACS6000    3BHB010740R0001    CAPACITOR    NOTCHI BATCM300A 3*70UF 3200V

ACS6000    3BHB010743R0001    CHOKE, AIR CORE,    0.090mH. 185A. 3300V

ACS6000    3BHB010848R0001    RELAY    6013.9.024.5240

ACS6000    3BHB010852R0001    RELAY    6013.8.120.0040

ACS6000    3BHB010889R0001    RESISTOR    RBU RESISTOR

ACS6000    3BHB010940P0001    MINIATURE CIRCUIT BREAKER    FAZ-C2-DC

ACS6000    3BHB010940P0004    MINIATURE CIRCUIT BREAKER    FAZ-C6-DC

ACS6000    3BHB010940P0005    MINIATURE CIRCUIT BREAKER    FAZ-C10-DC

ACS6000    3BHB010943R7601    ACS6000 PIPE KIT    HP INU/ARU PLASTIC PIPES

ACS6000    3BHB010943R7801    FOR ARU / INU    SET OF WATER HOSES

ACS6000    3BHB010944R0001    AUXILIARY SUPPLY    DT2500VA

ACS6000    3BHB010945R0001    CAPACIT.ELECTROL.    12500uF. 400V

ACS6000    3BHB010946R0001    AUXILIARY SUPPLY    DT1100VA

ACS6000    3BHB011243R0001    SECURITY RELAY    BN5930.48 24VDC

ACS6000    3BHB011243R0048    SECURITY RELAY    BN5930.48/204 48V DC

ACS6000    3BHB011254R0002    TRANSFORMER    1300VA 1 PHASE 230V

ACS6000    3BHB011317R0001    EMC FILTER 3 PHAS    FN258-16/29

ACS6000    3BHB011317R0030    FILTER EMC    3 PHASE

ACS6000    3BHB011317R0042    FILTER EMC    3 PHASE

ACS6000    3BHB011320R0001    EMC FILTER 3 PHAS    FN258HV-16/29

ACS6000    3BHB011454R0002    AUXILIARY SUPPLY    ETUI3900VA

ACS6000    3BHB011555R0001    EMC FILTER 1 PHAS    FN2010-60/24

ACS6000    3BHB011770R0006    PROTECTION DEVICE    FAZ-C6-DC + FAZ-XNT +F

ACS6000    3BHB011770R0010    FAZ-C10-DC + FAZ-XNT + +FAZ-XHI00    FAZ-C10-DC + FAZ-XNT + +FAZ-XHI00

ACS6000    3BHB011947R0121    NBIO-21CU    FAST BASIC I/O UNIT 2

ACS6000    3BHB012106R0001    EXT.VLSCD RES.VFW    VFW30/330 375W.80k.10%

ACS6000    3BHB012154R0001    "3P DISCONNECTOR   HAS 1000A;3.6KV"    MOTOR 380-415V 50/60HZ

ACS6000    3BHB012154R0002    3p Disconnector    Type HAS 1000 A; 3.6

ACS6000    3BHB012154R0003    "3P DISCONNECTOR   HAS 1000A;3.6KV"    Motor 660-690V 50/60Hz

ACS6000    3BHB012330R0001    NTC-RESISTOR    30A 1R SG405

ACS6000    3BHB012331R0001    DIODE BRIDGE    VUO 60-12N03

ACS6000    3BHB012454R0001    PUMP CRN    CRN 45-3-2.380.415V.50

ACS6000    3BHB012454R0002    PUMP CRN    CRN 45-3

ACS6000    3BHB012481R0001    CARTRIDGE FILTER    T11R10S

ACS6000    3BHB012515R0001    MINIATUR CIRCUIT    FAZ-2-C2-DC

ACS6000    3BHB012515R0004    MINIATURE CIRCUIT BREAKER    FAZ-2-C6-DC

ACS6000    3BHB012515R0006    MINIATUR CIRCUIT    FAZ 2-C13-DC

ACS6000    3BHB012515R0007    MINIATUR CIRCUIT    FAZ 2-C16-DC

ACS6000    3BHB012515R0009    MINIATUR CIRCUIT    FAZ 2-C25-DC

ACS6000    3BHB012515R1004    MINICIRCUITBREAKE    FAZ-C6/2-DC

ACS6000    3BHB012515R1005    MINICIRCUITBREAKE    FAZ-C10/2-DC

ACS6000    3BHB012515R1006    MINICIRCUITBREAKE    FAZ-C13/2-DC

ACS6000    3BHB012515R1007    MINICIRCUITBREAKE    FAZ-C16/2-DC

ACS6000    3BHB012515R1008    MINICIRCUITBREAKE    FAZ-C20/2-DC

ACS6000    3BHB012515R1009    MINICIRCUITBREAKE    FAZ-C25/2-DC

ACS6000    3BHB012515R1010    MINICIRCUITBREAKE    FAZ-C32/2-DC

ACS6000    3BHB012515R1011    MINICIRCUITBREAKE    FAZ-C40/2-DC

ACS6000    3BHB012515R1012    MINICIRCUITBREAKE    FAZ-C50/2-DC

ACS6000    3BHB012733R0001    EMC FILT.CHOKE LP    12µH. 1000Arms. air. w

ACS6000    3BHB012734R0002    CURRENT TRANSD.    LP ABB CTRL CS 1000a-9821

ACS6000    3BHB012864R0002    INDICATION LAMP R    M22-L-R

ACS6000    3BHB012864R2KIT    PILOT LAMP, RED,  COMPLETE KIT    M22-L-R+M22-A+M22-LED-W

ACS6000    3BHB012870R0001    CONTACT ELEMENT C M22-K10    CONTACT ELEMENT C M22-K10

ACS6000    3BHB012871R0001    LEDELEMENT, WHITE    M22-LED-W

ACS6000    3BHB012871R0002    LED-ELEMENT,RED    M22-LED-R

ACS6000    3BHB012871R0005    LED-ELEMENT, BLUE    M22-LED-B

ACS6000    3BHB012873R0001    ILLUMINATION PUSHBUTTON WHITE    M22-DL-W

ACS6000    3BHB012873R0004    ILLUMINATION PUSHBUTTON YELLOW    M22-DL-Y

ACS6000    3BHB012873R0005    ILLUM. P.BUTTON    M22-DL-B

ACS6000    3BHB012873R1KIT    ILLUM. P.BUTTON    M22-DL-W+M22-A+ ...

ACS6000    3BHB012961R0002    IGCT RC MODULE 91    5SHX2645L0006

ACS6000    3BHB013146R0001    TRANSFORMER    ETUI 1500VA 1 PHASE 230V

ACS6000    3BHB013352R0001    RESISTANCE TEMPER RDT    PT100.B5631.4-20MA

ACS6000    3BHB013568R0056    ISOLATION SPACER    H=56. D=17 MM

ACS6000    3BHB013574R0500    SURGE ARRESTER    POLIM-D 04-01

ACS6000    3BHB013574R0750    SURGE ARRESTER    POLIM-D 06-01

ACS6000    3BHB013574R1000    SURGE ARRESTER    POLIM-D 8 N

ACS6000    3BHB013777R0002    INPUT REACTOR    IRU 7MVA. 0.444MH. 1484A

ACS6000    3BHB013933R0001    3P DISCONNECTOR   HAS 2000A, 4.15kV    Motor 380-415V 50/60Hz

ACS6000    3BHB013933R0002    3P DISCONNECTOR   HAS 2000A, 4.15kV    Motor 440-500V 50/60Hz

ACS6000    3BHB013933R0003    3P DISCONNECTOR   HAS 2000A, 4.15kV    Motor 660-690V 50/60Hz

ACS6000    3BHB013933R0010    3P. BREAKER    HAS 2000A 4.16KV

ACS6000    3BHB014025R0010    FAN ASSEMBLY    ACS6000 FAN ASSEMBLY

ACS6000    3BHB014038R0001    AIR TO AIR HEAT E    SK 3248.000

ACS6000    3BHB014116R0001    CAPACITOR    FPX86Z0205J 4500V2UF

ACS6000    3BHB014126R0100    3P DISCONNECTOR   HAS1000A,3.6kV(low pow    Motor 380-415V 50/60Hz

ACS6000    3BHB014126R0200    3P DISCONNECTOR   HAS1000A,3.6kV(low pow    Motor 440-500V 50/60Hz

ACS6000    3BHB014126R0300    3P DISCONNECTOR   HAS1000A,3.6kV(low pow    Motor 660-690V 50/60Hz

ACS6000    3BHB014158R0001    TIME RELAY        DILET11-M-A    .

ACS6000    3BHB014351R0001    TRANSFORMER    ETUI 2000VA 1 PHASE 23

ACS6000    3BHB014403R0001    ASE FERRITE FOR S    Diameter 4.5-6 mm

ACS6000    3BHB014403R0002    ASE FERRITE FOR S    Diameter 10.5-12.5 mm

ACS6000    3BHB014427R0001    SINGLE PHASE    TRAF EJ 96A/35.7-5-880-5-1

ACS6000    3BHB014803R0001    SPANNER SW23 4MM    SPANNER SW23 4MM

ACS6000    3BHB014827R0001    CURRENT TRANDUCER    (LEM) LT 2005-S/SP19

ACS6000    3BHB014992R...KIT    FEMALE&MALE CONN    1"BSP

ACS6000    3BHB014992R0101    WATER COUPLING FEMALE    1" (STAINLESS STEEL)

ACS6000    3BHB014992R0102    WATER COUPLING MALE    1" (STAINLESS STEEL)

ACS6000    3BHB015222R0001    PUMP ETACHROM     BC25-160/552 C11

ACS6000    3BHB015222R0002    PUMP ETACHROM     BC32-160/752 C11

ACS6000    3BHB015222R0003    PUMP ETACHROM     BC25-200/552 C11

ACS6000    3BHB015222R0004    PUMP ETACHROM     BC32-200/752 C11

ACS6000    3BHB015222R0005    PUMP ETACHROM     BC40-160/752 C11

ACS6000    3BHB015222R0006    PUMP ETACHROM     BC40-200/752 C11

ACS6000    3BHB015231R0001    PUMP CRN    CRN 64-2-1.

ACS6000    3BHB015231R0003    PUMP CRN    64-2-2. 380 - 480V. 60 HZ

ACS6000    3BHB015231R1001    PUMP CRN          CRN 64-3-1    PUMP CRN          CRN 64-3-1

ACS6000    3BHB015231R1002    PUMP CRN    CRN 64-3-2

ACS6000    3BHB015373P0001    ANGLED CABLE PLUG    CA 3 W LS

ACS6000    3BHB015373P0002    PANEL-MOUNTED SOCKET WITH FLANGE    CA 3 GD

ACS6000    3BHB015373P0003    PROTECTION CAP    CA 00 SD 4

ACS6000    3BHB015442R0001    38/55X218 WE25.1    Shaft for Etachrom BC

ACS6000    3BHB015647R0002    TRANSF.UJ168B/92    1PH 660-690/230V2.8kVA

ACS6000    3BHB015648R0001    TRANSF.    UJ180B/78  1PH 110-500/230V3.5kVA

ACS6000    3BHB015648R0002    TRANSF.UJ168B/92    1PH 660-690/230V3.5kVA

ACS6000    3BHB015651P0001    CAPACITOR    2*1600uF. 2866V.FILM D

ACS6000    3BHB016240R0001    ELEC.REV.LOADREL    ELR W3 / 9-400

ACS6000    3BHB016396R0002    CAM SWITCH    T0-2-8221/EZ

ACS6000    3BHB016453R0001    Motor for CRN    18.5 kW 3x400V / 50Hz

ACS6000    3BHB016453R0002    Motor for CRN    15 kW 3x400V / 50Hz

ACS6000    3BHB016453R0003    Motor for CRN    11 kW 3x400V / 50Hz

ACS6000    3BHB016832R0001    shield earth.    cla SK8_14_20

ACS6000    3BHB016860R0001    CAPACITOR    2*40UF. 3200V. FILM DK

ACS6000    3BHB016893R0001    DOOR HANDLE WITH    EMKA-1125-SU381

ACS6000    3BHB016900R0001    PIPE ANGLE PHASE INCL. O-RING    PIPE ANGLE PHASE INCL. O-RING

ACS6000    3BHB017016R0001    Pump ETACHROM    BC 25-160  C11

ACS6000    3BHB017016R0002    Pump ETACHROM    BC 32-160 C11

ACS6000    3BHB017016R0003    Pump ETACHROM    BC 25-200  C11

ACS6000    3BHB017016R0004    Pump ETACHROM    BC 32-200  C11

ACS6000    3BHB017016R0005    Pump ETACHROM    BC 40-160  C11

ACS6000    3BHB017017R0001    ETACHROM  BC /552  5,5 KW    Motor for Etachrom pump

ACS6000    3BHB017017R0002    ETACHROM  BC /752  7,5 KW    Motor for Etachrom pump

ACS6000    3BHB017662R0001    3PH O. L. ISOLATOR    1000A .3.6KV/50. 60HZ

ACS6000    3BHB017662R0012    3P Y-DISCONNECTOR    1000A. 3.6 KV. 50/60 HZ

ACS6000    3BHB017664R0001    3PH O.L.ISOLATOR    3PH O.L.ISOLATOR 2000A

ACS6000    3BHB017820R1000    HEAT SINK    WITH TERMINAL 2 X D=13

ACS6000    3BHB017820R3000    HEAT SINK    WITH TERMINAL 4XD=13 W/O PIN

ACS6000    3BHB017846R0001    TRANSFORMER    EJ 174C/72-5-383-0-7

ACS6000    3BHB018008R0003    PHASE S-113H (11MVA  PEAK) EUPEC    PHASE S-113H (11MVA  PEAK) EUPEC

ACS6000    3BHB018008R0005    PHASE MODULE    S-113H PHPT

ACS6000    3BHB018008R0101    PHASE MODULE    PHASE S-113N (11MVA PEAK)

ACS6000    3BHB018008R0103    PHASE MODULE    PHASE S-113H (11MVA  PEAK) EUPEC

ACS6000    3BHB018155R0001    IGCT CHANGING TOOL    IGCT CHANGING TOOL

ACS6000    3BHB018252R0001    ADAPTER    M22-AK11

ACS6000    3BHB018302R0010    FUSE    JCD-1E

ACS6000    3BHB018386R0001    Auxiliary contact    40 DILE

ACS6000    3BHB018773R0001    350µH, 1900A,    Choke. decoupling IFU 9MVA

ACS6000    3BHB018784R0001    CAPACITOR, IFU    3X70UF / 3200V VISHAY

ACS6000    3BHB018785R0001    90mH, 272A    Choke. notching filter IFU 9MVA

ACS6000    3BHB019265R0410    FU_LINK    32V 1A TYPE FKS

ACS6000    3BHB019318R0001    CLAMP CHOKE 11    CONTINUOUS POWER

ACS6000    3BHB019717R0001    CONTACTOR    DILM25-10

ACS6000    3BHB019786R0190    Special DCS800 incl. redund. Fan,TypV    Special DCS800 incl. redund. Fan.TypV

ACS6000    3BHB019787R0190    SPECIAL DCS800 INCL. REDUND. FAN,R/S    SPECIAL DCS800 INCL. REDUND. FAN.R/S

ACS6000    3BHB019788R0120    SPECIAL DCS800 INCL. REDUND. FAN,TYPY    SPECIAL DCS800 INCL. REDUND. FAN.TYPY

ACS6000    3BHB019988R0001    TRAFO 2KVA, 2KVA / 3*440---690V / 3*400V    AUXILIARY TRANSFORMER

ACS6000    3BHB020068R0001    CAM switch    T0-1-15401/E  1-phase

ACS6000    3BHB020068R0003    CAM switch    T0-2-15679/E+SVC-T3

ACS6000    3BHB020521R0001    AUX CONTACT (2NO+2NC)    22DILE

ACS6000    3BHB020720R0002    IGCT MODULE    5SHY 3545L0016. 4500V. 91MM

ACS6000    3BHB020790R0001    PROGRAMMING CABLE    INT EPLD

ACS6000    3BHB021277R0001    AUX. CONTACT    TYPE C2 (1NO+1NC)

ACS6000    3BHB021400R0002    4500V, 91MM, 5SHY 4045L0004GVC736    IGCT.

ACS6000    3BHB021455R0001    DIODE    DILM12-XSPD SUPPRESSOR

ACS6000    3BHB021516R0001    EARTHING ISOLATOR    6KV9

ACS6000    3BHB021523R0002    LIMIT SWITCH ACTUATOR    FOR 6KV9 EARTH ISOLATOR

ACS6000    3BHB021906R0001    UNDERVOLT. MONITO 813S-E2CA50    UNDERVOLTAGE MONITOR DEVICE

ACS6000    3BHB022145R0001    CAPACITOR    2*40uF.  2800V. FILM

ACS6000    3BHB022304R0001    ADAPTER KIT    HVD & CVMI BOARD

ACS6000    3BHB022368R0013    SAFTEY SWITCH    TP3-2131A230M KIT

ACS6000    3BHB022684R0101    HEAT EXCHANGER AIR/AIR    LT-5165-UL

ACS6000    3BHB022793R0001    ASE2 WITH HOUSING    ASE2 (UD C920 AE101)

ACS6000    3BHB022956R0001    FERRITE    FOR CABLE DIAMETER 7 - 8.5MM

ACS6000    3BHB023928R0001    CONTACTOR    DILM25-10 (24V50/60HZ)

ACS6000    3BHB024245R0001    RECTIFIER DIODE    D273-2500-50

ACS6000    3BHB024429R0001    EARTHFILTER KIT    2 ADDITIONAL CAPACITORS

ACS6000    3BHB024537R0101    CONTROL BOARD FOR LT-5165    TYPE SC1000

ACS6000    3BHB024538R0101    FAN FOR HE LT-5165    EBM R2E225-RA92-15

ACS6000    3BHB024907R0001    CHAIN KIT    SPARES EME OUTPUT SWIT

ACS6000    3BHB024907R0002    CHAIN KIT SPARES EME:    CHAIN/MOTOR/LIMIT SWITCH

ACS6000    3BHB024907R0003    LIMIT SWITCH    SPARES EME OUTPUT SWIT

ACS6000    3BHB025308R0002    Stud elbow    12mm - 1/2 thread

ACS6000    3BHB025308R0003    Stud elbow    12mm - 1/2 thread

ACS6000    3BHB025308R0004    Stud fitting    12mm - 1/4 thread

ACS6000    3BHB025308R0005    Stud run tee    12mm - 1/2 thread

ACS6000    3BHB025308R0006    Stud fitting    12mm - 1/2 thread

ACS6000    3BHB025308R0007    Stud fitting    12mm - 1/4 thread

ACS6000    3BHB025308R0008    Stud fitting    8mm - 1/4 thread

ACS6000    3BHB025552R0002    UPGRADE KIT TO ASE2B BOARD    UPGRADE KIT TO ASE2B BOARD

ACS6000    3BHB025698R0001    GR DIODE    AR771LTS45

ACS6000    3BHB025699R0001    THYRISTOR    DCR2720V52

ACS6000    3BHB025700R0001    THYRISTOR    DCR1950C52

ACS6000    3BHB026016R0001    ACS6000 upgrade kit    Finder relay master COU

ACS6000    3BHB026046R0001    ACS6000 upgrade kit    Phase module connectors

ACS6000    3BHB026772R0012    OVERL. REL.    E1250DU / MODIF. E16 DU0.32

ACS6000    3BHB026772R1004    OVERLOAD RELAY KIT    EF750-800 / modified DU0.63

ACS6000    3BHB026772R1005    OVERLOAD RELAY KIT    EF750-800 / modified DU1.0

ACS6000    3BHB026772R1011    OVERLOAD RELAY KIT    EF750-800 / modified E16 DU0.32

ACS6000    3BHB027140R0002    DC/DC CONVERTER    T5080-01A 110VDC/300VDC

ACS6000    3BHB027140R0003    DC/DC CONVERTER    T5081-01A 220VDC/300VDC

ACS6000    3BHB027232R0001    CHARGING TRANSFORMER    400/460V. 4200V

ACS6000    3BHB028120R0001    3-PHASE AC-FAN    R4D355-AH11-05

ACS6000    3BHB028273R0002    DC AXIAL FAN    3414 N

ACS6000    3BHB029151R0001    CHARGING UNIT BOX CBU    CHARGING UNIT BOX CBU

ACS6000    3BHB029282R0012    HEX SK 3248.000    FAN KIT FOR

ACS6000    3BHB029335R0001    DISMOUNTING TOOL    FOR LEGRIS ON HEAT SINK

ACS6000    3BHB029838R0001    DIODE PRESSPACK    6500V 2850A

ACS6000    3BHB030002R0001    FUSE    10A 3/7.2 KV

ACS6000    3BHB030004R0001    MICROSWITCH FOR FUSE    MICROSWITCH FOR FUSE

ACS6000    3BHB030310R0001    IGCT MODULE    4500V. 91mm. 5SHY 4045L0006

ACS6000    3BHB030475R0309    PHASE MODULE    S-093H

ACS6000    3BHB030477R0207    PHASE MODULE    S-073H

ACS6000    3BHB030478R0209    PHASE MODULE    PHASE S-093H

ACS6000    3BHB030478R0309    PHASE MODULE    S-093H

ACS6000    3BHB030479R0112    PHASE MODULE    PHASE S-123H

ACS6000    3BHB030516R0001    DCS800-S01-2000-07+L508 (TYPE CODE)    DCS800-S01-2000-07+L508 (TYPE CODE)

ACS6000    3BHB030692R0001    CHOKE    12UH / 2700A HIGH POWER (ALU)

ACS6000    3BHB030735R0001    CONTACT 2150ARMS 4-SCREW (NON MAGNETIC)    CONTACT 2150ARMS 4-SCREW (NON MAGNETIC)

ACS6000    3BHB030833R0001    QUINT-PS / 1AC / 24DC / 3.5    QUINT-PS / 1AC / 24DC / 3.5

ACS6000    3BHB030845R0001    UG KIT PIPE (TOP) WITH CONN.    MALE 1"BSP

ACS6000    3BHB030845R0002    UG KIT PIPE (BOTTOM)    WITH CONN MALE 1"BSP  BOTTOM

ACS6000    3BHB030845R0003    UG KIT PIPE WITH ALU CONN. FEMALE TOP    TOP

ACS6000    3BHB030845R0004    UG KIT PIPE WITH ALU CONN. FEMALE BOTTOM    BOTTOM

ACS6000    3BHB030845R0101    UG KIT PIPE W INOX CONN MALE PHASE TOP    TOP

ACS6000    3BHB030845R0102    UG KIT PIPE W INOX CONN MALE PHAS BOTTOM    BOTTOM

ACS6000    3BHB030845R0103    UG KIT PIPE WITH INOX CONN. FEMALE TOP    TOP

ACS6000    3BHB030845R0104    UG KIT PIPE WITH INOX CONN FEMALE BOTTOM    BOTTOM

ACS6000    3BHB032292R0001    EAF_BOARD_INCL.    BOX COMPLET

ACS6000    3BHB033342R0002    FILTER CHOKE    IFU 7 MVA (TRASFOR)

ACS6000    3BHB035825R0001    UG KIT   INU_LP KPL. 3 PH. TO INOX    UG KIT   INU_LP KPL. 3 PH. TO INOX

ACS6000    3BHB036533R0001    ACS1/5/6 WATER CONNECTOR KIT    ACS1/5/6 WATER CONNECTOR KIT

ACS6000    3BHB038381R0001    SEIFERT UPGRADE KIT    RELAY KIT FOR SEIFERT PCB UPGRADE

ACS6000    3BHB038658R0001    UPGRADE S800 AO810 WCU SIZE 029-063    UPGRADE S800 AO810 WCU SIZE 029-063

ACS6000    3BHB038658R0010    UPGRADE S800 AO810 WCU SIZE 080-120    UPGRADE S800 AO810 WCU SIZE 080-120

ACS6000    3BHB038687R0001    UPGRADE 3-GUSP IN INU-LP    FOR POWER ONE POWER SUPPLIES

ACS6000    3BHB038687R0002    UPGRADE 3-GUSP IN INU-LP    FOR PHOENIX POWER SUPPLIES

ACS6000    3BHB038881R0021    Relay kit for Seifert Upgrade    UG 21 WCU Cont. 230VAC EATON /24VDC ABB

ACS6000    3BHB038881R0022    Relay kit for Seifert Upgrade    UG 22 WCU Cont. 230VAC EATON /24VDC ABB

ACS6000    3BHB038881R0023    Relay kit for Seifert Upgrade    UG 23 WCU Cont. 230VAC EATON /24VDC ABB

ACS6000    3BHB038881R0101    Relay kit for Seifert Upgrade    UG 101WCU.AF30Z/230VAC AF30/24VDC

ACS6000    3BHB040342R0001    SPAREPARTS-KIT    LED FOR HEX LT-5165-UL

ACS6000    3BHB041330R0001    Fan W2E200 incl. plug for RK-4835    SP-RK4835020-C-1

ACS6000    3BHB041331R0001    Fan R3G incl. plug for FU-4835    SP-FU4835011-C-1

ACS6000    3BHB041332R0001    Fan-board kit for FU-4835    SP-4835011-D-1

ACS6000    3BHE000977R0001    SHIELD CONN.    TERMI SK8

ACS6000    3BHE000978R0001    SHIELD CONN.    TERMI SK14

ACS6000    3BHE000979R0001    SHIELD CONN.    TERMI SK20

ACS6000    3BHE001989R0003    OPTICAL MODBUS    IN PSI-MOS-RS485W2/FO660E

ACS6000    3BHE003604R0102    EAF-BOARD COATED    UF C765 AE102:EAF

ACS6000    3BHE004573R0141    INTERFACE BOARD,    UF C760 BE141 ARU

ACS6000    3BHE004573R0142    INTERFACE BOARD    UF C760 BE142:INU

ACS6000    3BHE004573R0143    INTERFACE BOARD    UF C760 BE143:PUB/PFF

ACS6000    3BHE004742R0001    PE TERMINAL    USLKG 5 PE

ACS6000    3BHE005555R0101    SYNCH.    VOLTAGE ME LD SYN-01

ACS6000    3BHE006373R0101    XV C769 AE101    OEI-BOARD. COATED

ACS6000    3BHE006412R0101    CVMI-BOARD,COATED    UF C762 AE101: CVMI

ACS6000    3BHE009017R0102    VLSCD-BOARD,COAT. XV    C724 BE102

ACS6000    3BHE010751R0101    APPLIC.& MOTOR    CT PP C902 AE101 AMC-33

ACS6000    3BHE010837R0000    UK 6-FSI/C    FLAT TYPE FUSE TERMINAL

ACS6000    3BHE010915R4034    CURRENT TRANSDUCE    LT 4000-S/SP34

ACS6000    3BHE014023R0101    FSCD-BOARD,COATED    UFC789AE101

ACS6000    3BHE014070R0101    CCB-2 COMPLETE    V PP C905 AE101

ACS6000    3BHE016034R0001    IRDH275B-435    EARTHFAULT DETECTOR

ACS6000    3BHE020725R0001    DIODE PRESSP.    D1961SH.EUPEC

ACS6000    3BHE021083R0101    HVD Board Coated    XV C770 BE101

ACS6000    3BHE021126R0001    IGCT    4500V. 91MM. 5SHY 3545L0014

ACS6000    3BHE022172P0001    Standpipe    8mm - M10x1

ACS6000    3BHE023413R0025    COOLING HOSE    NF F16-101

ACS6000    3BHE023784R0001    IGCT MODULE    5SHY 3545L0014. 4500V. 91MM

ACS6000    3BHE023786R0001    Equal tee    D = 12 mm

ACS6000    3BHE024328R0101    ASE2 (ANTI SATURATION)    UD C920 AE

ACS6000    3BHE024553R0001    PHOENIX 1757022 MSTB 2,5/3-ST-5.08 CONNE    PHOENIX 1757022 MSTB 2.5/3-ST-5.08 CONNE

ACS6000    3BHE024577R0101    APPLIC&MOTORCTRL    PP C907 BE: AMC34

ACS6000    3BHE026577P0001    Nut EPDM-PVDF    M10x1

ACS6000    3BHE027859R0102    RETRO- PINT (ACS)    DD C779 CE102

ACS6000    3BHE032285R0101    HVD- BOARD VARNISHED    XV C772 A101:

ACS6000    3BHE032472R0001    Equal tee    D=8 mm

ACS6000    3BHE034863R0001    ASE2B WITH HOUSIN    UD C920 BE101

ACS6000    3BHE035425R0001    REACTOR    0.005mH. 3725A. air

ACS6000    3BHE036012R0001    UC C922 A: BOX BUILD NBIO-3    UC C922 A: BOX BUILD NBIO-3

ACS6000    3BHE037864R0106    UF C911 B106: CVMI2B    UF C911 B106: CVMI2B

ACS6000    3BHE039426R0101    UF C912 A101: EOI    UF C912 A101: EOI

ACS6000    3BHF000327R0006    Auxiliary contact    DIL ER22-E (230VAC)

ACS6000    3BHL000479P0002    CIRC. BREAKER    0-4 PKZM0-2.5-T

ACS6000    3BHL000479P0004    CIRCUIT BREAKER    PKZM 0-4-T.IR=2.5-4A.6

ACS6000    3BHL000479P0005    CIRCUIT BREAKER    PKZM 0-6.3-T

ACS6000    3BHL000479P0006    CIRCUIT BREAKER    PKZM 0-10-T

ACS6000    3BHL000479P0007    CIRCUIT BREAKER    PKZM0-16-T

ACS6000    3BHL000479P0008    MINI CIRCUIT BREAKER    PKZM 0-0.4-T

ACS6000    3BHL000479P0009    MINICIRCUIT BREAKER    PKZM 0-20-T

ACS6000    3BHL000479P0010    PKZM 0-0.16-T    MINI CIRCUIT BREAKER

ACS6000    3BHL000479P0011    MINI CIRCUIT BREAKER    PKZM 0-0.25-T

ACS6000    3BHL000479P0012    MINI CIRC.BREAKER    PKZM 0-0.63-T

ACS6000    3BHL000479P0013    MINI CIRCUIT BREAKER    PKZM 0-25-T

ACS6000    3BHL000485P0011    CONNECTION TERMINAL    BK50/3-PKZ2

ACS6000    3BHL000491P0002    SINGLE-CHIP-LED-WHITE    SINGLE-CHIP-LED-WHITE

ACS6000    3BHL000495P0001    MINICIRCUITBREAKE    PKZM 0-1 (0.63..1A)

ACS6000    3BHL000495P0006    MINICIRCUITBREAKE    PKZM 0-2.5(1.6-2.5)

ACS6000    3BHL000495P0010    CIRUIT BREAKER    PKZM 0-0.16

ACS6000    3BHL000495P0011    PROTECTION SWITCH    PKZM 0-0.25

ACS6000    3BHL000495P0013    MOT.CIRC. BREAKER    PKZM 0-0.63

ACS6000    3BHL000499P0002    AUX. CONTACT    NHI11-PKZ0

ACS6000    3BHL000499P0003    AUX. CONTACT    (1NO & 1NC) NHI11-PKZ2

ACS6000    3BHL000499P0004    AUX. CONTACT    NHI11S-PKZ2

ACS6000    3BHL000548P0001    HEAT SINK    HEAT SINK

ACS6000    3BHL000552P0001    CLUTCH    6MM

ACS6000    3BHL000621P0101    AUX. CONTACTOR    DIL ER-22 230V 50/60Hz

ACS6000    3BHL000622P0009    MINIATURE CIRCUIT    FAZ-2-C16(In=16A.415V)

ACS6000    3BHL000622P1005    MINICIRCUITBREAKE    FAZ-C4/2

ACS6000    3BHL000622P1006    MINICIRCUITBREAKE    FAZ-C6/2

ACS6000    3BHL000622P1007    MINICIRCUITBREAKE    FAZ-C10/2

ACS6000    3BHL000622P1008    MINICIRCUITBREAKE    FAZ-C13/2

ACS6000    3BHL000622P1009    MINICIRCUITBREAKE    FAZ-C16/2

ACS6000    3BHL000720P0162    INSULATOR GM162 F-MS    H50 D40 M10 2KV

ACS6000    3BHL000734P0003    REACTOR    0.0046mH. 806A. AIR

ACS6000    3BHL000838P5010    CONTACT BLOCK    10X_TOTAL_1250A_5MM BUSBAR

ACS6000    3BHL000866P1008    PIPE 10 MM    TUBE FEP 140 10X8

ACS6000    3BHL000868P0001    WARNING STICKER F FOR PANEL CONNECTOR    WARNING STICKER F FOR PANEL CONNECTOR

ACS6000    3BHL000907P1032    ISOLATOR_SC1032_F-MS (META)    ISOLATOR_SC1032_F-MS (META)

ACS6000    3BHL000951P0003    right-angled connector    1xthread 1/4" d8

ACS6000    3BHL000951P0004    RIGHT-ANGLED CONN    1/4" / D6

ACS6000    3BHL000951P0011    STRAIGHT CONNECTOR 1XTHREAD    M10X1 D6

ACS6000    3BHL000951P0012    CONNECTOR PLUG IN    M10X1_DM8_LEGRIS

ACS6000    3BHL000951P0013    RIGHT-ANGLED CONN 1XTHREAD    M10X1 D8

ACS6000    3BHL000951P0014    RIGHT-ANGLED CONN 1XTHREAD    M10X1 D6

ACS6000    3BHL000951P0015    L-CONNECTOR    1XTHREAD M10X1 D8

ACS6000    3BHL000955P0001    INSULATING ANGLE    INSULATING ANGLE

ACS6000    3BHL000986P0006    CAPACITOR    4UF. 2800VDC. 4500VMAX

ACS6000    3BHL000986P0008    CAP, EMC-FILTER    98ECX589(B)

ACS6000    3BHL000986P0011    CAP    DC WTR COOL  2*1.3MF

ACS6000    3BHL000986P0012    CAP, COMMON MODE    0.5UF. 2800VDC.2000VAC

ACS6000    3BHL000986P1000    RESISTOR, SYMM.    200K. 54W. 10%

ACS6000    3BHL000986P1002    VLU RESISTOR    0.00225k. 5%

ACS6000    3BHL000986P1004    RESISTOR    VLU     1.125 OHM/2800V/2400A/

ACS6000    3BHL000986P1005    VLU RESISTOR    0.0013125k. 5%

ACS6000    3BHL000986P1006    VLU RESISTOR    0.001k. 5%

ACS6000    3BHL000986P2102    CHRAGING TRANSFO.    PU180/63/E. 3.3kVA

ACS6000    3BHL000986P3001    DIODE, CHU    UGE 0221 AY4

ACS6000    3BHL000986P3002    DIODE    5SDF1045H0002

ACS6000    3BHL000986P3003    DIODE    5SDF1645L0006

ACS6000    3BHL000986P3011    DIODE    5SDD 1945H0001

ACS6000    3BHL000986P3012    DIODE    5SDD2545L0001

ACS6000    3BHL000986P3016    CROWBAR THYRISTOR    5STP 1752H0002

ACS6000    3BHL000986P3017    THYRISTOR    5STP 2552L0014

ACS6000    3BHL000986P4000    RELAY,HIGHVOLTAGE    K81A B47. 10KV.10A

ACS6000    3BHL000986P5000    CURRENT TRANDUCER    LT2000-T/SP4

ACS6000    3BHL000986P7000    POWER SUPPLY    LXN 1604-6. 27V 500W

ACS6000    3BHL000986P7001    POWER SUPPLY    LWN1902-6E

ACS6000    3BHL000986P7002    POWER SUPPLY    LWN2660-6E

ACS6000    3BHL000986P8000    THERMOSTAT    KTO1140

ACS6000    3BHL000986P9000    COUPLING DEVICE    AGH520S

ACS6000    3BHL000986P9012    A-ISOMETER    IRDH275-435W

ACS6000    3BHL000995P0001    STRAIGHTCONNECTOR    D8

ACS6000    3BHL000995P0002    REDUCTION CONNECT    D8/ D6

ACS6000    3BHL000995P0003    RIGHT-ANGLED CONNECTOR    D8

ACS6000    3BHL000995P0004    REDUCTION CONNECT D8 / D6    REDUCTION CONNECT D8 / D6

ACS6000    3BHL000995P0005    Y-CONNECTOR    D6 / D8

ACS6000    3BHL000995P0008    PLUG-IN COMPACT    D1=8/D2=8

ACS6000    3BHL000995P0009    Bulkhead connecto    6mm

ACS6000    3BHL000995P0010    Bulkhead connecto    8mm

ACS6000    3BHL000995P0014    RIGHT-ANGLED CONNECTOR    D8/D10

ACS6000    3BHL001048P0005    AUXILIARY TRANSF.    PU150/52 12519

ACS6000    3BHL001048P0010    AUXILIARY TRANSF.    PU150/77 12515

ACS6000    3BHL001049P0001    SYNCHRON. TRANSF.    3PU. Yyn0. 100/9V. 5VA

ACS6000    3BHL001049P0002    SYNCHRON. TRANSF.    3PU 110V/9V. 5VA. Yyn0

ACS6000    3BHL001275R0001    PHASE MODULE      FOR 9 MV INU/AR    PHASE MODULE

ACS6000    3BHL001275R0002    PHASE MODULE      FOR 6 MV INU/AR    PHASE MODULE

ACS6000    3BHL001373P0048    RELAY    55.34 9048 0040

ACS6000    3BHL001373P0230    RELAY    55.34 9230 0040

ACS6000    3BHL001374P0002    RELAY    48VDC 10A  60.13.9048.0040

ACS6000    3BHL001374P0230    RELAY/FIND. SERIE    SERIE 60.13 8230 0040

ACS6000    3BHL001375P0001    RELAY BASE    94.74

ACS6000    3BHL001376P0001    SCREW TERMINAL    SOCKET TYPE 90.21

ACS6000    3BHL001889P0001    PLUG    6MM GREEN

ACS6000    3BHL001889P0002    PLUG 8MM    PLUG 8MM

ACS6000    3BSE013235R0001    EXTENTED MTU 2*8    TU831V1

ACS6000    3BSE020520R0001    FIELDBUS COMMUNIC    CI810B (AF100)

ACS6000    42000756    MECHANICAL SEALING    FOR DURACROM

ACS6000    42000942    LAMP TEST CBU KIT    LAMP TEST CBU KIT

ACS6000    42003842    SWITCH FUSE AND MOUNTING PLATE    OS63GD12P AND ADAPTER

ACS6000    42003921    CIRCUIT BREAKER + AUX.CONTACT    MS132-25T + HKF1-11

ACS6000    42003922    CIRCUIT BREAKER + AUX.CONTACT    MS132-20T + HKF1-11

ACS6000    FE64106279    POWER RESISTOR    GRF 30/156 S 12KOHM

ACS6000    FE64122061    POWER RESISTOR    GRF 30/156 S 6.8KOHM

ACS6000    GJZ6021001R0002    Thermal relay     T900 DU-500    Thermal relay     T900 DU-500

ACS6000    GJZ6021001R0003    Thermal relay     T900 DU-650    Thermal relay     T900 DU-650

ACS6000    GJZ6021001R0004    Thermal relay     T900 DU-850    Thermal relay     T900 DU-850

ACS6000    GMN961705P0016    SHUNT-RESISTOR    60MV. 1000A

ACS6000    GMN961705P0017    SHUNT-RESISTOR    60MV. 1500A

ACS6000    GMN961705P0116    SHUNT RESISTOR    SH-1000A/150mV-DIN

ACS6000    GV452536P3012    DIODE-BRIDGE    VUO30-12NO3

ACS6000    GZN640007P0006    FUSE CARTRIDGE 20 NH000 20A/500    20 NH000 20A/500

ACS6000    GZN640007P0011    FUSE CARTRIDGE    NH000 50A /500V GL

ACS6000    GZN640007P0012    FUSE CARTRIDGE    63 NH000 63A/500 GL

ACS6000    GZN640008P0005    FUSE CARTRIDGE    NH000 16A/690 GL

ACS6000    GZN640008P0006    FUSE CARTRIDGE    NH000 20A/690 GL

ACS6000    GZN640008P0007    FUSE CARTRIDGE    NH000 25A/690 GL

ACS6000    GZN640008P0008    FUSE CARTRIDGE    NH000 32A/690 GL

ACS6000    GZN640008P0009    FUSE CARTRIDGE    NH000 35A/690 GL

ACS6000    GZN640008P0011    FUSE CARTRIDGE    NH000 50A/690 GL

ACS6000    HASV403979R0001    CONTACT GREASE    VP980    CONTACT GREASE    VP980

ACS6000    HIEB410820P0001    MAINS OUTLET    SOCK CEE 7 SOCKET (SCHUKO)

ACS6000    HIEB412295P0001    MICROSWITCH    170H3027

ACS6000    HIEE300888R0002    PULSE AMPLIFIER    I UA C389 AE02

ACS6000    HIEE300890R0001    MEAS. UNIT BOARD    LD MUB-01

ACS6000    HIEE401782R0001    LOW VOLTAGE GATE    LT C391 AE01

ACS6000    HIEE401807R0001    Flash Memory Subboard    CM C910 A: AMC3x

ACS6000    HIER466591P0230    TRIMLUX COMPLETE    TB-213821B

ACS6000    HIER467227P0951    INSULATOR    12KV  H=95 D=62 M16 / M10

ACS6000    HIES208441R0002    5 OHM, WATER COOLED    RESISTOR. SLOW SNUBBER BCU

ACS6000    HIES208441R0003    LOCAL DCLINK    RES. 0.6 OHM. WATER COOLED

ACS6000    HIES308461R0004    RESISTOR    34 OHM. WATER COOLED

ACS6000    HIES308461R0007    DISCHARGING RES.    39 OHM. WATER COOLED

ACS6000    HIES308461R0011    RESISTOR WATER COOLED    4 OHM 2100W

ACS6000    HIES308461R0013    RESISTOR WATERCOOLED    1 OHM

ACS6000    HIES308461R0014    RESISTOR WATERCOOLED    1.25 OHM

ACS6000    HIES311598R0001    SPECIAL OPEN-ENDED SPANNER    SPECIAL OPEN-ENDED SPANNER

ACS6000    HIES312728P0001    LEVEL  LIMIT SWITCH    720.0020 SE

ACS6000    HUAD300874P0002    FUSE    170E5208; 1400V / 50A

ACS6000    HUAD401004R0017    GND TERM BLOCK CO    8 X USLKG 5

ACS6000    LEGRIS3102000012    RIGHT-ANGLED CONNECTOR D12    RIGHT-ANGLED CONNECTOR D12

ACS6000    LEGRIS3104000023    CONNECTOR    EQUAL TEE CONNECTOR

ACS6000    LEGRIS31041200    CONNECTOR    D12 EQUAL TEE CONNECTO

ACS6000    SW-1200030    PUMP ETACHROM    BC25-160/552 C11

ACS6000    SW-1200034    PUMP ETACHROM    BC32-160/752 C11

ACS6000    SW-1200038    PUMP ETACHROM    BC25-200/552 C11

ACS6000    SW-1200041    PUMP ETACHROM    BC32-200/752 C11

ACS6000    SW-1200047    PUMP CRN    CRN45-2-1 A-F-G-E-HQQE

ACS6000    SW-1200053    PUMP ETACHROM    BC40-200/752 C11

ACS6000    SW-1200060    NDC PUMP    50.32.200/7.5  60Hz

ACS6000    SW-1200061    NDC PUMP    65.40.200/7.5  60Hz

ACS6000    SW-1200062    NDC PUMP    50.32.200/7.5  50Hz

ACS6000    SW-1200063    DURACROM PUMP    40-200K 65/40/7.5/2

ACS6000    SW-1200069    HILGE PUMP    32-200K 50/32/7.5/2

ACS6000    SW-1200201    PUMP ETACHROME    BC40-160/752C11

ACS6000    SW-180101    ACS6000 PRESSURE RELIEF VALVE    UPGRADE KIT

ACS6000    SW-180107    CHECK VALVE    VM6542 RP2 AISI 304

ACS6000    SW-180108    LEVEL INDICATOR    4-9556-636

ACS6000    SW-180112    COUPLING KIT    FOR ACS6000 029SG & 052SG. and ACS1000

ACS6000    SW-180113    COUPLING KIT    FOR  080SO. 106SO AND 120SO

ACS6000    SW-180138    LEVEL INDICATOR    DWG 4-9556-637

ACS6000    SW-180180    STAINLESS STEEL PIPE KIT FOR WCUS    (029/052/063 LINEUP POSITION=RIGHT&LEFT

ACS6000    SW-180181    STAINLESS STEEL PIPE KIT FOR WCUS    (029 / 052 / 063 LINEUP POSITION = LEFT)

ACS6000    SW-190001    NIPPLE/ ION EXCH. 3/4 INCH -ISO-R1/2PP    NIPPLE/ ION EXCH. 3/4 INCH -ISO-R1/2PP

ACS6000    SW-190004    NIPPLE ION EXCH. 3/4 INCH -ISO-R1/2PP    NIPPLE ION EXCH. 3/4 INCH -ISO-R1/2PP

ACS6000    SW-190148    DEIONIZER    Q-0621-A

ACS6000    SW-190216    SEAL KIT    BC25-160.32-160.40-160

ACS6000    SW-190217    SEAL KIT    BC25-200.32-200.40-200

ACS6000    SW-190253    NIPPLE ORIFICE PP (WCU GEN.2)    NIPPLE ORIFICE PP (WCU GEN.2)

ACS6000    SW-2310003    EXPANSION VESSEL    PWD AT8380-35

ACS6000    SW-2500008    Q-730-A/DEIONIZER FILLER PLUG FOR    Q-730-A/DEIONIZER FILLER PLUG FOR

ACS6000    SW-2500015    MICRO FILTER    IFAB 10 SLIM / 3BHB011

ACS6000    SW-2560010    STRAINER    VM6303 DN 65

ACS6000    SW-2560019    STRAINER    BIG SIZE

ACS6000    SW-2560069    STRAINER    SMALL SIZE

ACS6000    SW-2560087    FILTER HOUSE    NR 10 SLIMLINE

ACS6000    SW-3020037    3-WAY REGULATION VALVE    VF3  DN50

ACS6000    SW-3020039    ADAPTER FOR    DN 50 3-WAY VALVE

ACS6000    SW-3020040    ADAPTER FOR    DN 65 3-WAY VALVE

ACS6000    SW-3020042    VALVE VF3 DN50 INCL. ADAPTER    VF3 DN50

ACS6000    SW-3020043    3-WAY REGULATION VALVE INCL. ADAPTER    VF3  DN65

ACS6000    SW-3080002    ACTUATOR    230 VAC. 3S/MM

ACS6000    SW-3110022    BY-PASS VALVE    BY-PASS VALVE

ACS6000    SW-3120111    MANOMETER NIPPLE  G38    MANOMETER NIPPLE  G38

ACS6000    SW-3120140    AUTOM. DEAERATION VALVE    TYPE 1.12

ACS6000    SW-3130015    PRESSURE RELIEF    V SS-4CPA2-RT

ACS6000    SW-3430301    "DOUBLE NIPPLE PP 1/2"" (WCU GEN2)"    DOUBLE NIPPLE PP 1/2" (WCU GEN2)

ACS6000    SW-3630012    HOSEPA-10/8TRANSP Y10 MM    R=70MM. 18 BAR

ACS6000    SW-3630059    COUPLING JG TEE    PM0212E.  12MM

ACS6000    SW-3630111    ELBOW COUPLING    R1/2 INCH. 12MM

ACS6000    SW-3630114    T-HOSE COUPLING 12 MM    T-HOSE COUPLING 12 MM

ACS6000    SW-3630115    "T-CONNECTION  12MM 1/2"""    T-CONNECTION  12MM 1/2"

ACS6000    SW-3630122    ELBOW CONNECTOR    12mm

ACS6000    SW-6210060    INDUCTIVE SENSOR    DW-AS-503-M30-120-PNP

ACS6000    SW-6210061    CONTACT    6-08MM  711-9 M12. FEMALE

ACS6000    SW-6210076    PRESSURE SENSOR    I A-AL-1STD

ACS6000    SW-6210078    TRANSITION NIPPLE ÖVERGÅNGSNIPPEL    TRANSITION NIPPLE ÖVERGÅNGSNIPPEL

ACS6000    SW-6210084    LEVEL SENSOR    003S2 1 INCH BSPT 18-3

ACS6000    SW-6210110    CAPACITIVE TRANSM, LIQUID LEVEL SWITCH    SW5051-PO-DI-AF18

ACS6000    SW-6220010    TEMPERATURE SENSOR    PT100 L=60MM

ACS6000    SW-6220011    TEMP.SENSOR    PT100 L=80. G½. 4-TR.KLASS A

ACS6000    SW-6240016    PRES TRANSMITTER    PMC131-A11F1A1S

ACS6000    SW-6240026    PRES SENS&ADAP    0-10 bar.4-20 mA.G3/8"

ACS6000    SW-8810010    MECHANICALSEALING SEALING    FOR KSB PUMP

ACS6000    SW-8810026    MECHANICALSEALING HQQE    MECHANICALSEALING HQQE

ACS6000    SW-8810027    O-RING FOR ETACHROM    25-160/32-160/40

ACS6000    SW-8810028    O-RING FOR ETACHROM    25-200/32-200/40

ACS6000    SW-9000009    HOSE KLENET    DIM.PA 25.4X35MM
