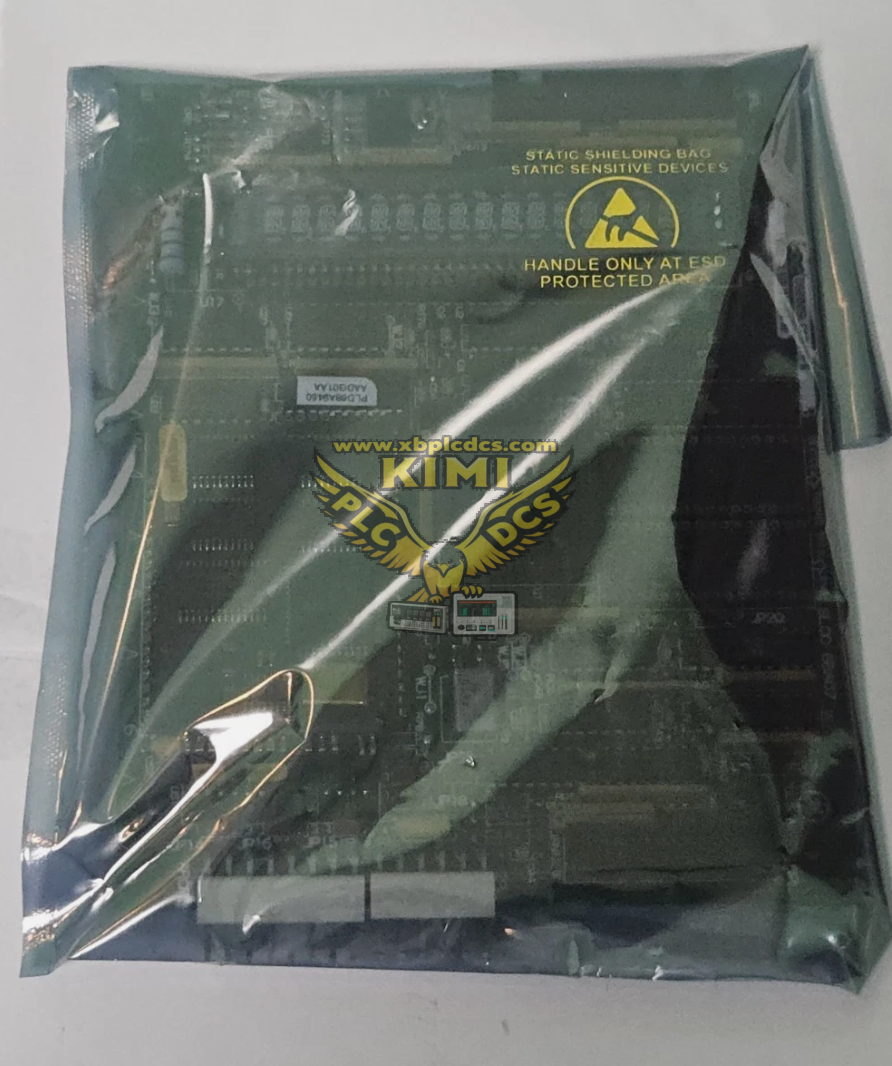

GE DS200DTBCG1AAA Mark V Gas Turbine Control Output Termination Module

Product Brief Description

The DS200DTBCG1AAA is a dedicated control output termination module developed by General Electric (GE) for the classic Speedtronic Mark V gas turbine control system, manufactured at GE Fanuc's US industrial production base. As a core signal transfer and output expansion component in the Mark V system's RST control architecture, it undertakes the physical wiring connection between the digital relay output channels of the system main control board and on-site actuators, ensuring stable and reliable transmission of all gas turbine safety control output signals throughout long-term operation. It is one of the widely deployed legacy industrial components in global in-service Mark V gas turbine systems.

Core Technical Specifications

• Manufacturer: GE (General Electric) Fanuc, original US industrial-grade standard production
• Product Category: Mark V DS200 series gas turbine control output relay terminal board, belonging to the RST system matching component
• Physical Parameters: Net weight about 0.45kg, industrial PCB with anti-corrosion and anti-aging coating, reinforced mechanical structure for industrial cabinet deployment
• Wiring Capacity: Equipped with high-density screw-type terminal blocks, supporting multi-channel relay signal output access, configurable via on-board hardware jumpers
• Signal Compatibility: Native support for 24-125 VDC digital contact output signals, matching the driving requirements of on-site safety relays, solenoid valves and indicator light loads
• Interface Definition: Seamlessly compatible with the system bus of the core R1/R2/R3 slots in the Mark V control rack, realizing stable interconnection with main control boards such as TCTG trip board and TCRAG relay output board
• Operating Environment: -20°C to +65°C working temperature, 0-95% non-condensing relative humidity, fully meeting power plant level EMC anti-electromagnetic interference standards

Key Core Functions

• Digital Output Signal Expansion: It centrally transfers relay drive signals output from the system main control board through standardized terminal blocks, avoiding the wiring complexity of directly connecting a large number of control signal lines to the core main control board, greatly simplifying on-site engineering wiring and later maintenance operations
• Signal Protection and Filtering: Built-in transient voltage suppression circuits and independent channel fuses on the board can effectively absorb surge interference from on-site long-distance control cables, preventing abnormal voltage spikes from damaging the precision chips on the main control board, effectively reducing the fault rate of core control boards
• Flexible Function Configuration: On-board configurable hardware jumpers can quickly adjust signal output attributes without modifying system hardware, supporting flexible switching of output current ranges between 20mA and 200mA to adapt to different on-site load driving requirements
• Fault Isolation and Visual Indication: Each output channel is equipped with independent status indicator lights, which can directly display the output action state on site, helping maintenance personnel quickly locate abnormal faulty channels during troubleshooting, greatly shortening equipment downtime

Typical Application Scenarios

• GE 9E/9F series heavy-duty gas turbine Mark V control systems for combined cycle power plants and simple cycle power stations
• Spare parts replacement and system renovation projects of in-service Mark V systems at large-scale petrochemical refinery captive power plants
• Control output signal wiring supporting for large centrifugal compressor anti-surge control systems of natural gas long-distance transmission trunk lines
• Auxiliary gas turbine control system transformation for large metallurgical steel plants and industrial central heating boiler islands

Installation and Maintenance Guidelines

• Strictly implement anti-static protection before installation: operators must wear reliably grounded anti-static wrist straps to avoid static electricity damaging the precision signal processing components on the board
• Verify that the jumper configuration matches the on-site load type and current range requirements before powering on, confirm that the signal output wires are routed separately from high-power power cables, and the shielding layer is reliably single-end grounded at the control cabinet side
• Perform point-by-point output action verification through the Mark V system diagnostic function after installation, confirm that the indicator status on the board is consistent with the actual on-site actuator action state
• Regularly check the tightness of wiring terminals during daily operation, clean the dust accumulated on the board every 2 years, which can effectively extend the service life of this legacy terminal board to more than 20 years

Supply and Market Status

Although GE has officially stopped mass production of Mark V series control components, multiple professional industrial DCS spare parts suppliers in Xiamen, Fujian still have spot stocks of original unused and fully refurbished DS200DTBCG1AAA modules. The current market reference price ranges from about RMB 26,900 to 40,900 for new units, and refurbished units with 1-year warranty can be delivered within 1-3 working days, fully meeting the spare parts replacement and maintenance demands of global in-service Mark V gas turbine control systems.
