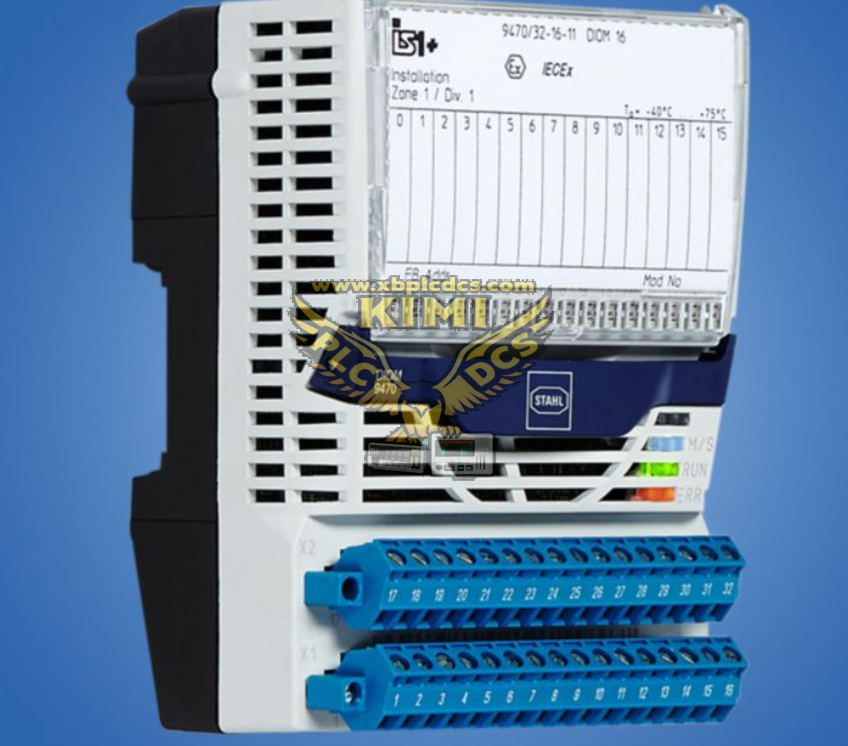

R. STAHL 9470/32-16-11 IS1+ 16-Channel Intrinsically Safe Digital I/O Module

Product Description

The 9470/32-16-11 is a 16-channel intrinsically safe digital input/output module for the R. STAHL IS1+ remote I/O system, certified for Zone 1 / Div.1 hazardous locations. Its channels are configured in pairs, each pair can be set as digital input or digital output. It supports NAMUR proximity sensors, dry contact signals, low-power solenoid valves and indicator lights. It communicates with IS1+ CPM controller via internal BusRail backplane bus, with built-in line fault monitoring and short-circuit protection for each channel.

Features

• 16 Ex ia IIC intrinsically safe channels, configurable in pairs as DI or DO
• Input support: NAMUR sensors, dry contact switches; Output support: low-power Ex i solenoid valves and indicators
• 8 channels support frequency input up to 20 kHz, 4 channels for rotation direction detection
• Independent wire break and short-circuit diagnosis, per-channel LED status indication
• Hot-swap replacement in Zone 1 hazardous area without power cut
• Galvanic isolation between field circuit and backplane system bus
• Explosion-proof certification: Ex ia [ia Ga] IIC T4 Gb, IECEx / ATEX / FM approved
• DIN rail mounting for IS1+ BusRail rack, compact modular design

Application Scenarios

• Oil & gas, refinery and chemical Zone 1 hazardous area discrete signal control
• NAMUR proximity switch, valve limit feedback, flow switch signal acquisition
• Intrinsically safe low-power solenoid valve and indicator light control
• Speed, frequency and rotation direction monitoring for rotating field equipment
• Offshore platform explosion-proof remote I/O cabinet construction and spare parts replacement

FAQ

Q: Can each channel be set independently?
A: No, configuration is done in pairs, one pair is either DI or DO mode.

Q: What is the difference between 9470/32-16-10 and 9470/32-16-11?
A: They are two hardware variants of the same 16-channel digital I/O module with different internal component revisions.

Q: Does it support frequency measurement?
A: Yes, 8 channels can measure frequency up to 20 kHz, 4 channels support rotation direction detection.

Q: Which system does it belong to?
A: It is part of the R. STAHL IS1+ intrinsically safe remote I/O system.
