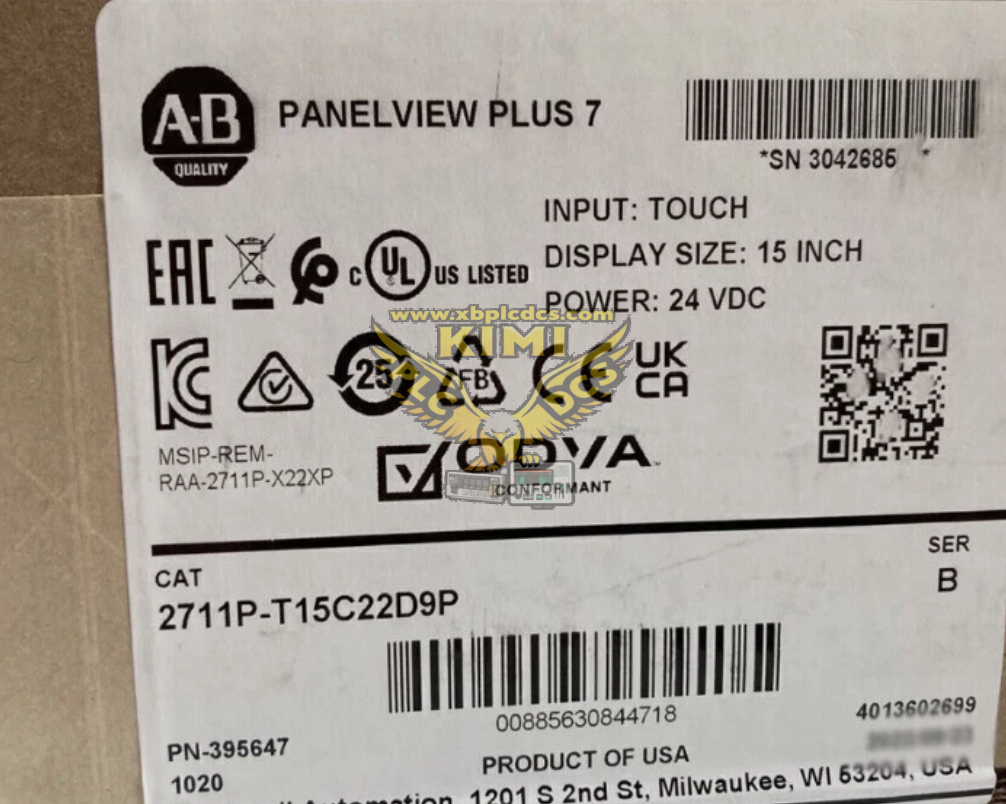

Allen‑Bradley 2711P-T15C22D9P PanelView Plus 7 Performance HMI Terminal

Product Description

The 2711P-T15C22D9P is a high-performance graphic HMI terminal from Rockwell Automation Allen‑Bradley PanelView Plus 7 Performance series. It features a 15-inch XGA TFT color touch screen, equipped with DLR Ethernet port, powered by 24V DC, running Windows 10 IoT Core operating system. It is designed for seamless cooperation with Rockwell PLCs and built for high-demand industrial visualization and machine operation control.

Features

• 15" XGA color TFT touch display, high brightness for industrial cabinet installation
• DLR Ethernet support, suitable for Device Level Ring redundant network topology
• Windows 10 IoT Core system, Performance version with stronger computing capacity
• Programmed by FactoryTalk View Machine Edition software
• Support VNC server and FactoryTalk ViewPoint for remote monitoring
• USB and SD card interface for quick program backup and restoration
• 24V DC power supply, reliable performance in dusty and vibration industrial environments
• Email and text alarm notification function

Application Scenarios

• Automated production lines, packaging machinery and material handling equipment
• Petrochemical, water treatment and energy industry control panels
• Metallurgy, mining and heavy machinery local operation stations
• Rockwell Logix PLC integrated architecture control systems
• Projects requiring DLR redundant Ethernet communication

FAQ

Q: What software is used to develop the HMI program?
A: FactoryTalk View Machine Edition (FTView ME).

Q: What is DLR?
A: Device Level Ring, a ring network protocol for redundant Ethernet, fast fault recovery.

Q: What is the difference between Performance and Standard version?
A: Performance version adopts Windows 10 IoT Core with higher performance, standard version uses Windows CE.

Q: Can it realize remote access?
A: Yes, it supports VNC server and FactoryTalk ViewPoint remote monitoring.
