Brief Product Description

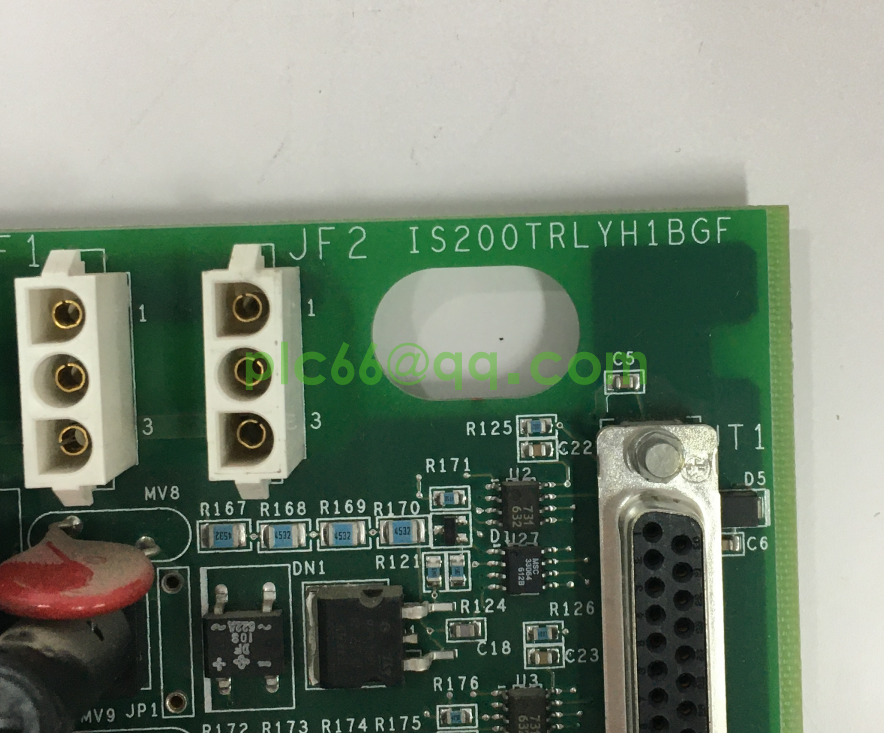

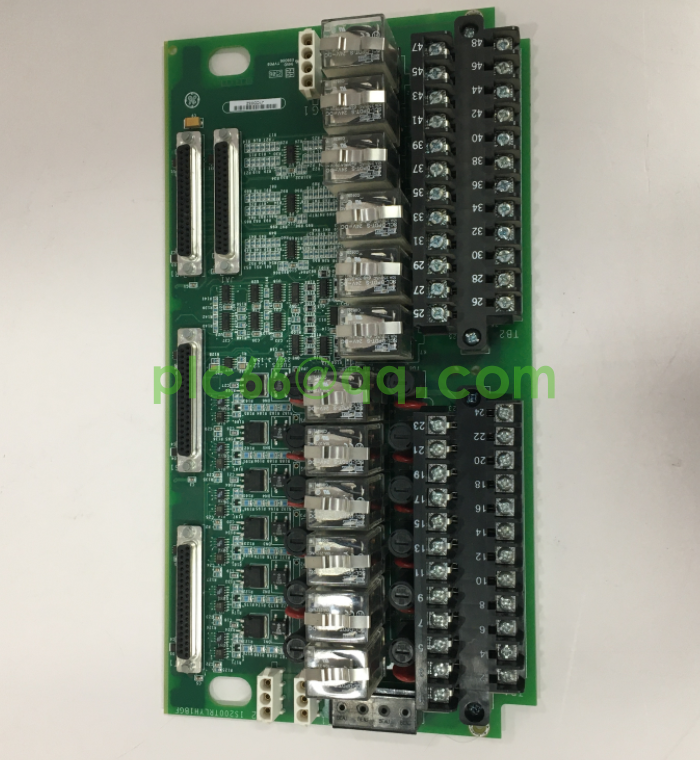

IS200TRLYH1BGF is a conformal‑coated tripled relay output terminal board built for GE Speedtronic Mark VI and Mark VIe turbine control systems. Adopting TMR triple‑modular redundant 2‑out‑of‑3 hardware voting architecture, this PCB features 12 independent SPDT Form‑C relay channels for safety‑critical trip and alarm signal switching. It converts low‑voltage controller logic commands into dry‑contact switch signals for field solenoids, trip circuits and annunciator panels. With coil feedback diagnostics and channel‑to‑channel isolation, it maintains reliable performance under vibration, temperature swing and electromagnetic noise in power‑plant cabinets. As an obsolete critical spare part, it is widely used for maintenance and retrofit of legacy GE turbine control installations.

Core Product Functions

• TMR hardware 2oo3 voting mechanism for safety‑grade relay output to avoid single‑point failure risk
• Twelve SPDT Form‑C relay channels to drive turbine trip solenoids, alarm horns and field auxiliary actuators
• Convert low‑logic control signals from Mark VI/VIe controller into isolated dry‑contact switching outputs
• Built‑in coil drive feedback diagnosis to monitor relay working status and detect contact failure
• Channel‑to‑channel galvanic isolation prevents fault propagation among different field circuits
• Conformal coating offers protection against humidity, dust and corrosive gas for cabinet‑mount operation
• MOV surge suppression circuit absorbs transient voltage spikes to protect onboard relay components
• High‑speed signal interaction with main controller via dedicated multi‑pin connectors for safety interlock execution

• Support both simplex and TMR system configuration to satisfy different turbine protection requirements

Application Scenarios

• GE Mark VI / Mark VIe gas and steam turbine control and protection cabinets in thermal power plants
• Turbine emergency trip circuit, safety interlock system and site alarm annunciator control units
• Oil & gas turbo‑compressor and heavy rotating machinery control panels based on GE Speedtronic platform
• Power plant balance‑of‑plant BOP auxiliary equipment safety relay switching system
• Industrial sites requiring TMR‑voted relay outputs for high‑availability machinery protection

• Spare replacement terminal board for maintenance, troubleshooting and upgrade of existing Mark VI/VIe racks

FAQ (Frequently Asked Questions)

• Q: Controller sends command but relay fails to actuate field devices?
  A: Inspect relay burnout, field loop power supply failure, connector loose contact, coil feedback circuit anomaly or TMR voting mismatch.
• Q: System reports relay channel feedback fault during runtime?
  A: Check conformal coating damage, relay aging, wiring short‑circuit, surge damage or terminal block poor connection.
• Q: Can IS200TRLYH1BGF be replaced while Mark VI/VIe rack remains powered‑on?
  A: Hot‑swap is not supported. Execute lock‑out tag‑out procedure and power off related rack before replacement to prevent unintended turbine trip.
• Q: Can this terminal board work for other GE control series or third‑party controllers?
  A: It is exclusively designed for Mark VI and Mark VIe systems; dedicated connector definition and TMR voting logic cannot adapt to other platforms.
• Q: Is GE IS200TRLYH1BGF available for brand‑new turbine projects?
  A: This legacy relay terminal board has reached end‑of‑life. Only surplus and fully‑tested refurbished units are provided for existing‑site maintenance work.
