Allen-Bradley 81001-450-52-R SGCT Power Board for PowerFlex 7000

Product Description

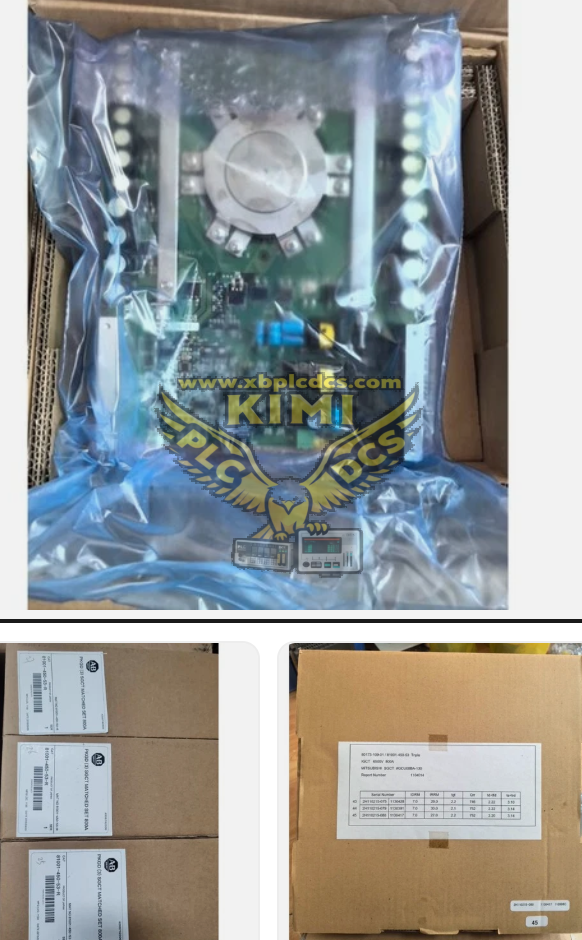

The Allen-Bradley 81001-450-52-R is a matched SGCT power switching board, a core spare component for Rockwell PowerFlex 7000 medium voltage AC drive systems. It integrates SGCT power semiconductor chips and gate drive trigger circuits, designed for high-voltage, high-power inverter conversion. It works together with 81001-450-53-R variants inside the MV drive cabinet, providing reliable power switching for medium-voltage motor control. It is widely used for maintenance, replacement and retrofitting of legacy PowerFlex 7000 drives.

Product Functions

• High-power DC to AC inversion for medium voltage drive output
• Precise SGCT gate triggering to adjust motor speed, torque and rotation direction
• Built-in snubber and protection circuits to suppress voltage spikes and avoid device breakdown
• Real-time fault status feedback to the main drive controller for overcurrent and short-circuit protection
• High surge tolerance for heavy start-up and cyclic industrial loads
• Standard plug-in structure, direct replacement for the original rack layout

Application Scenarios

• Mining, oil & gas medium-voltage pump and compressor control systems
• Power plant large fans, blowers and circulating water pump drives
• Metallurgy, cement and chemical heavy-duty production line equipment
• Large industrial energy-saving medium voltage variable frequency systems
• Spare replacement and repair of existing PowerFlex 7000 MV drive cabinets
