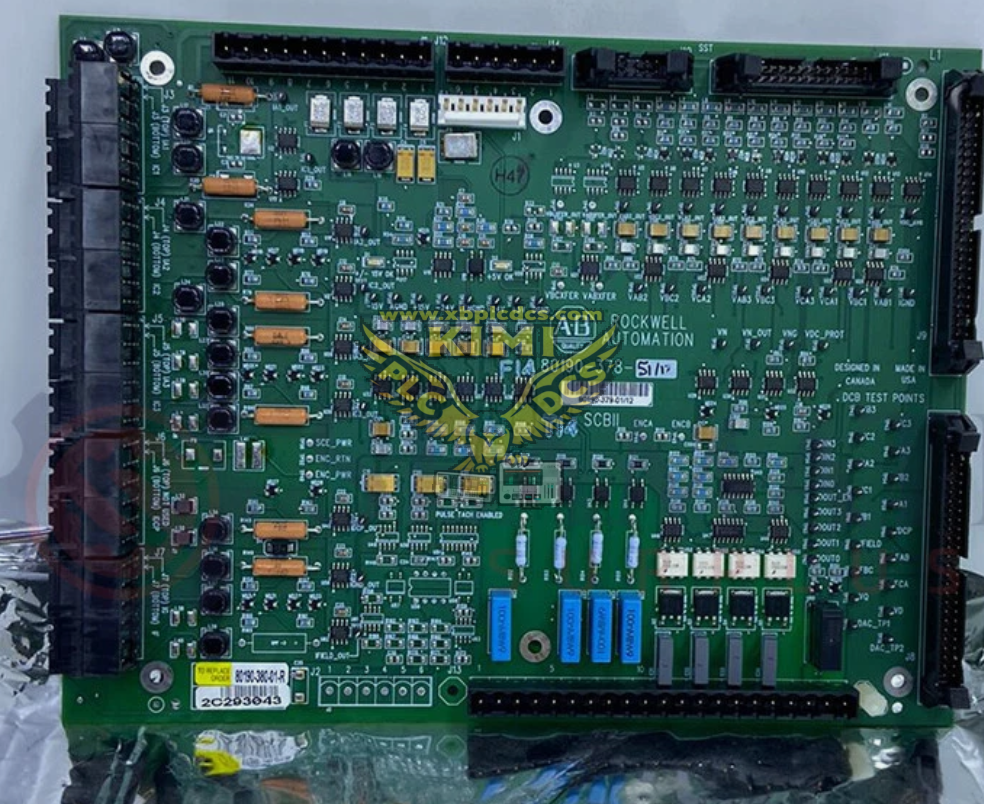

Allen-Bradley 80190-380-01-R Control Interface Board for PowerFlex 7000

Product Description

The Allen-Bradley 80190-380-01-R is a dedicated control interface board for Rockwell PowerFlex 7000 medium voltage drives. It acts as the communication and signal bridge between the main controller and power stage, handling analog feedback, digital interlock signals and gate drive command transmission. Built with robust EMC protection for high-voltage cabinet environments, it is a critical spare part for troubleshooting and refurbishment of legacy PowerFlex 7000 MV variable frequency systems.

Product Functions

• Transmit trigger commands from main controller to SGCT/IGCT power boards
• Collect voltage, current and temperature feedback signals from the power unit
• Process hardware interlock, fault alarm and safety trip signals
• Signal isolation and conditioning to reduce interference in high-voltage cabinets
• Real-time status feedback to the main drive control CPU for protection logic
• Plug-in rack design for direct replacement inside the PowerFlex 7000 cabinet

Application Scenarios

• Power plant large fans, blowers and circulating pump medium voltage drive systems
• Mining, oil & gas compressors and heavy pump control equipment
• Cement, metallurgy and chemical industry medium voltage variable frequency drives
• Large industrial energy-saving and utility MV motor control systems
• Spare replacement and maintenance of existing PowerFlex 7000 drive cabinets
