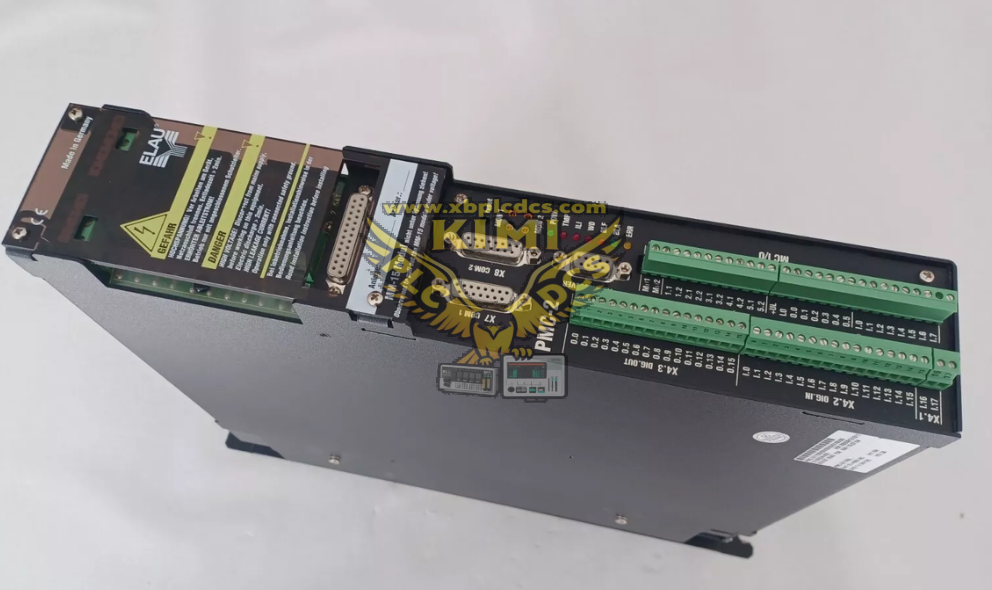

ELAU (Schneider) PMC-2/11/05/000/00/00/01/00/00 Motion Controller

Product Description

PMC-2/11/05/000/00/00/01/00/00 belongs to ELAU PMC-2 series, now under Schneider Electric. It is a high-performance modular multi-axis motion controller dedicated to packaging machinery, printing and converting equipment. This model is a fully programmable motion control CPU unit, supporting electronic cam, flying shear, register control and synchronous gearing. The segmented suffix string defines axis capacity, I/O configuration, communication interface, firmware variant and hardware revision. This series is end-of-life, widely used as spare part for legacy packaging production lines.

Product Functions

• Multi-axis synchronous motion control, electronic gearing and electronic cam profiling
• Flying cut, mark registration, web tension and position synchronisation functions
• High-speed position loop calculation for ELAU PacDrive servo drives
• Integrated digital I/O management and fieldbus communication interface
• Programmable motion sequences via ELAU PacDrive programming environment
• Real-time fault logging, axis status monitoring and safe stop control

Applications

• Vertical & horizontal form-fill-seal packaging machines
• Labeling, printing, slitting and web converting machinery
• Food, pharmaceutical and cosmetic automated packaging lines
• Carton erecting, case packing and handling automation
• Legacy PacDrive system retrofit and spare replacement
