GE IS200BPVCG1BR1 Backplane ASM Interface Board for Mark VI Speedtronic Turbine Control System

Product Brief Description

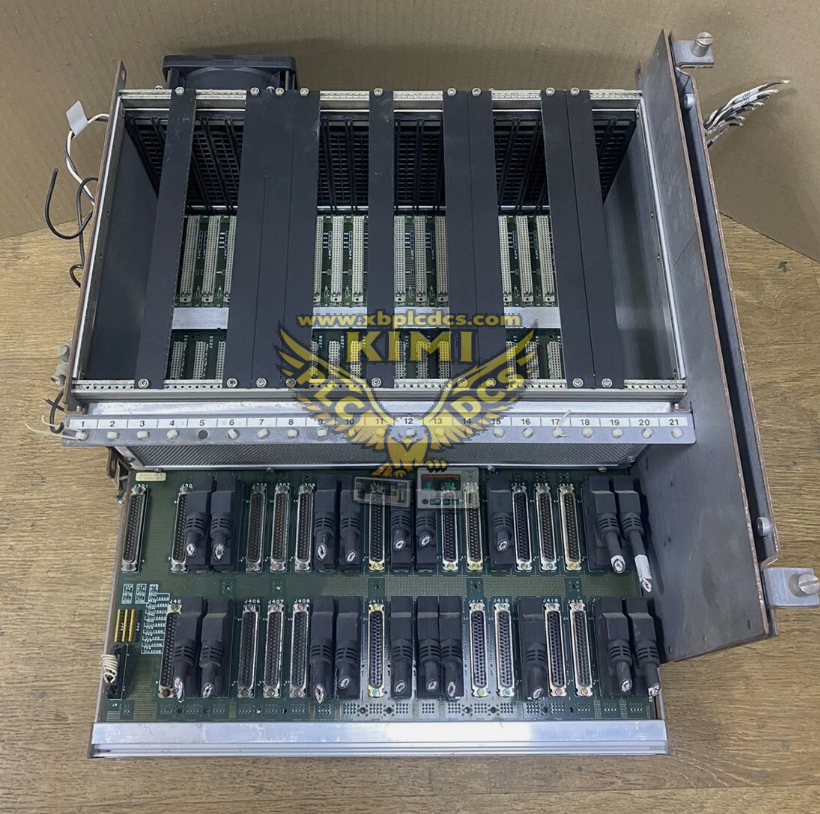

The GE IS200BPVCG1BR1 is a rack backplane ASM interface board designed for GE Speedtronic Mark VI turbine control system. It acts as the electrical and mechanical backbone inside the control rack, providing physical mounting support, power distribution and high-speed bus interconnection for CPU, communication and I/O cards. Built with gold-plated connectors and industrial PCB technology, it maintains stable signal integrity under high electromagnetic interference environments and supports simplex and TMR triple modular redundant turbine control racks.

Product Functions

• Provide mechanical mounting position and locking structure for all plug-in modules inside Mark VI control rack
• Distribute regulated DC power to all rack boards through internal power traces and dedicated connectors
• Route VME bus signals to realize high-speed data communication and handshake between controller and I/O modules
• Transmit sensor feedback, interlock and protection signals between different functional cards in the chassis
• Integrated reinforced grounding plane to reduce noise interference and improve system EMC performance
• Support TMR triple redundant rack architecture for gas and steam turbine safety control requirements

Application Scenarios

• Combined cycle power plant Mark VI gas turbine and steam turbine control cabinets
• Thermal power station generator set protection and turbine speed control racks
• Oil & gas industry turbine-driven compressor and pump control skids
• Captive power plant and industrial cogeneration turbine automation systems
• Offshore power generation platform turbo machinery safety control cabinets
