FOXBORO FBM201D FBM201E Product Brief Description

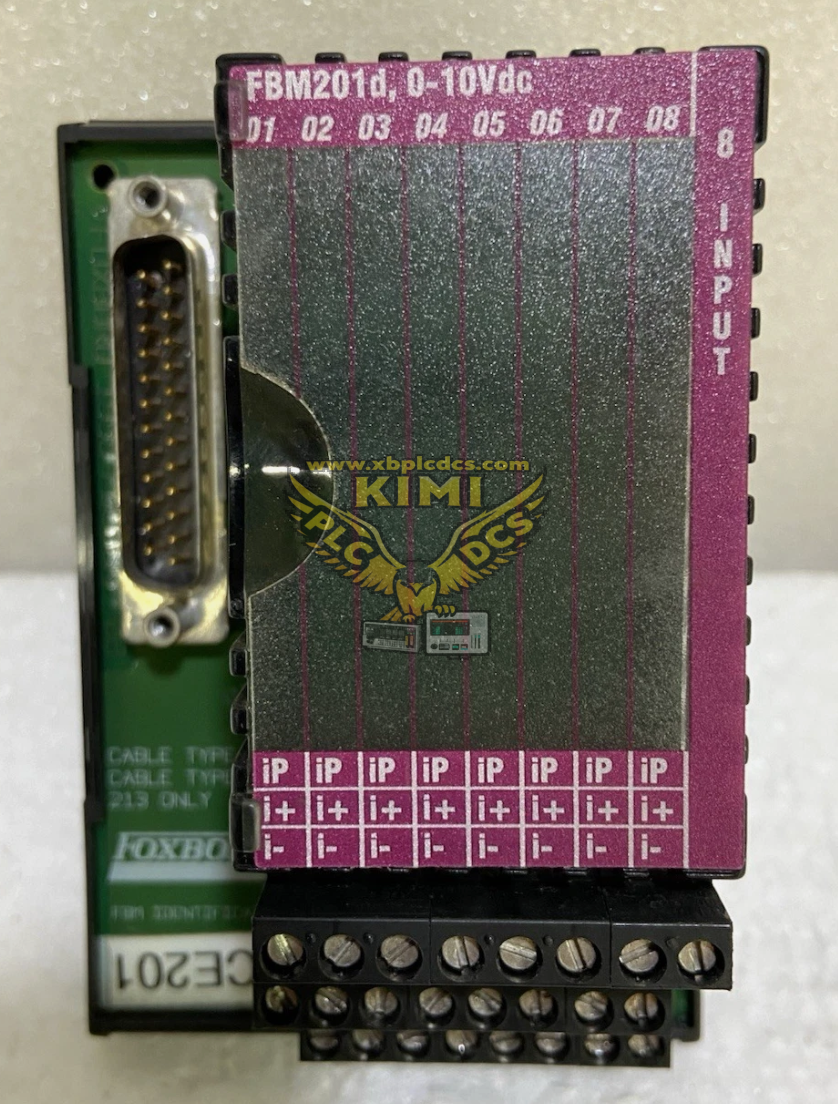

The FOXBORO FBM201D is a 200-series 8-channel galvanically isolated DC voltage analog input fieldbus module for Foxboro I/A Series DCS. It is the 0~10VDC variant of the FBM201 family, designed to acquire self-powered voltage transmitter and potentiometer signals. It uses sigma-delta A/D conversion, supports HART signal compatibility, and communicates with FCP/FCM controllers via redundant 2Mbps fieldbus for high reliable analog voltage measurement.

Product Features

• 8 fully galvanically isolated analog input channels, fixed input range 0~10VDC
• High measurement accuracy ±0.03% of span, input impedance 10MΩ
• Independent Sigma-Delta ADC per channel, configurable integration time for 50/60Hz noise filtering
• Supports HART superimposed digital signals, compatible with HART voltage transmitters
• Per-channel diagnostics for open circuit, short circuit and out-of-range voltage detection
• Redundant 2Mbps fieldbus interface, plug-in rack design with front LED status indicators

Application Scenarios

• Petrochemical and chemical plant 0-10V voltage type transducer signal acquisition
• Oil & gas processing potentiometer displacement and position feedback monitoring
• Power plant auxiliary equipment voltage signal and divider measurement loops
• Pulp & paper, pharmaceutical manufacturing process analog voltage monitoring
• Legacy Foxboro I/A Series DCS spare 0~10V analog input module replacement and retrofit
