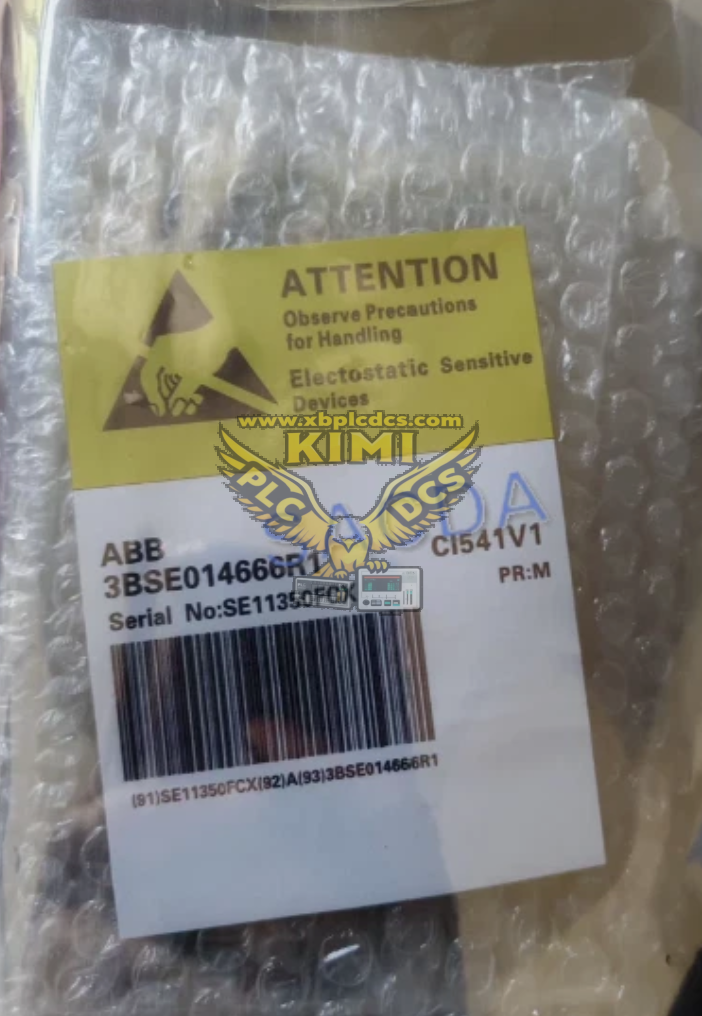

ABB CI541V1 3BSE014666R1 Advant Controller 400 Series Profibus DP Communication Interface Module

Product Description

The CI541V1 (long ordering part number 3BSE014666R1) is a high-reliability industrial communication interface module independently developed by ABB, belonging to the classic Advant Controller 400 series industrial automation product line. As the core dedicated communication component specially designed for large-scale industrial DCS/PLC system scenarios that have extremely strict requirements for industrial field bus communication stability and continuous operation reliability, it is widely deployed in heavy-duty industrial scenarios such as petrochemical plants, large thermal power plants, automobile manufacturing production lines and other safety-critical industrial fields. It is responsible for realizing high-speed and stable data interaction between the ABB main controller and on-site Profibus DP field devices, ensuring that the industrial control system can continuously and stably complete the real-time transmission of control instructions and process data during long-cycle uninterrupted production, providing the most fundamental high-reliability communication transmission guarantee for the stable operation of large industrial automation systems.

Core Technical Specifications

• Manufacturer: ABB, original industrial DCS system communication grade production standard
• Product Category: Advant Controller 400 series dedicated Profibus DP communication interface module, official part number CI541V1, long ordering code 3BSE014666R1
• Physical Parameters: Standard DIN rail modular design, dimensions 255mm × 125mm × 20mm, net weight about 0.2kg, IP20 protection grade, fully compliant with industrial anti-vibration and strong electromagnetic interference standards in industrial sites
• Electrical Parameters: 24V DC ±20% industrial power supply, maximum power consumption 3W, with built-in power supply reverse connection protection and 1500VDC signal isolation protection circuit
• Performance Parameters: Adopting dedicated industrial communication processor, maximum Profibus DP transmission rate up to 1.5Mbps, supporting up to 31 Profibus DP slave devices on the bus at the same time
• Communication Compatibility: Natively supports Profibus DP V0/V1 protocols, and can seamlessly adapt to mainstream industrial communication protocols such as EtherNet/IP, Profinet and Modbus TCP through configuration
• Physical Interface: Standard D-SUB 9-pin Profibus DP communication interface, with built-in LED status indicators to display real-time communication state and fault information
• Operating Environment: -20°C to +60°C industrial wide temperature working range, 0%-95% non-condensing relative humidity, fully meeting IEC 60068-2-27 industrial vibration resistance standard, mean time between failures (MTBF) as high as 300,000 hours

Key Product Functions

• Multi-Mode Profibus DP Communication Processing: The module simultaneously supports Profibus DP master station and slave station dual working modes, which can be configured as the master station to connect 31 on-site slave devices such as frequency converters, remote I/O stations and on-site sensors, or as the slave station to realize data interconnection with third-party upper control systems, providing extremely high flexibility for different industrial communication networking scenarios.
• Efficient and Stable High-Speed Data Transmission: With dedicated industrial communication processing chip and optimized bus anti-interference design, it can maintain stable and reliable high-speed data transmission in the industrial site strong electromagnetic interference environment, no signal packet loss and communication interruption, effectively ensuring that the control instructions sent by the upper control system can be accurately transmitted to the on-site execution equipment in real time.
• Hot-Swap Maintenance Function: The module supports non-stop hot-swap operation, maintenance personnel can directly replace the faulty module under the condition that the industrial control system is running normally, no need to shut down the system and interrupt the production process, effectively reducing the maintenance downtime of the industrial control system.
• Perfect ABB System Compatibility: The module fully matches the ABB Advant Controller 400/410 series control system architecture, no additional protocol conversion equipment is required, no complex parameter adaptation work is needed after installation, and it can be directly used as spare parts for maintenance replacement of old ABB industrial control systems that have been running for many years, effectively extending the service life of the old industrial automation system.
• Full Self-Diagnosis and Fault Locating: The module continuously performs real-time all-round health monitoring on the power supply state, communication link state and bus data transmission state, automatically identifies abnormal states such as signal line open circuit, bus communication interruption, module hardware fault, and intuitively feeds back the fault information through the built-in LED indicators, helping maintenance personnel quickly locate system hidden dangers and effectively shorten the system fault recovery time.

Typical Application Scenarios

• Power generation industry: Large thermal power plant DCS control system, responsible for the high-speed data communication between the main controller and on-site Profibus DP field devices.
• Petrochemical industry: Large refinery and chemical plant process control system, realizing stable and reliable Profibus bus communication for the whole production line.
• Automobile manufacturing industry: Automobile assembly factory automated production line control system, realizing high-stability data interconnection between the main controller and industrial robots, conveyor lines and other equipment.
• Food and beverage industry: Food production line automated control system, ensuring the reliable and stable data transmission of the production line equipment.
• Industrial transformation and upgrading projects: Spare parts replacement and system maintenance of old ABB Advant Controller 400 series control systems that have been in operation for many years in various industrial sites.
