Product Brief Description

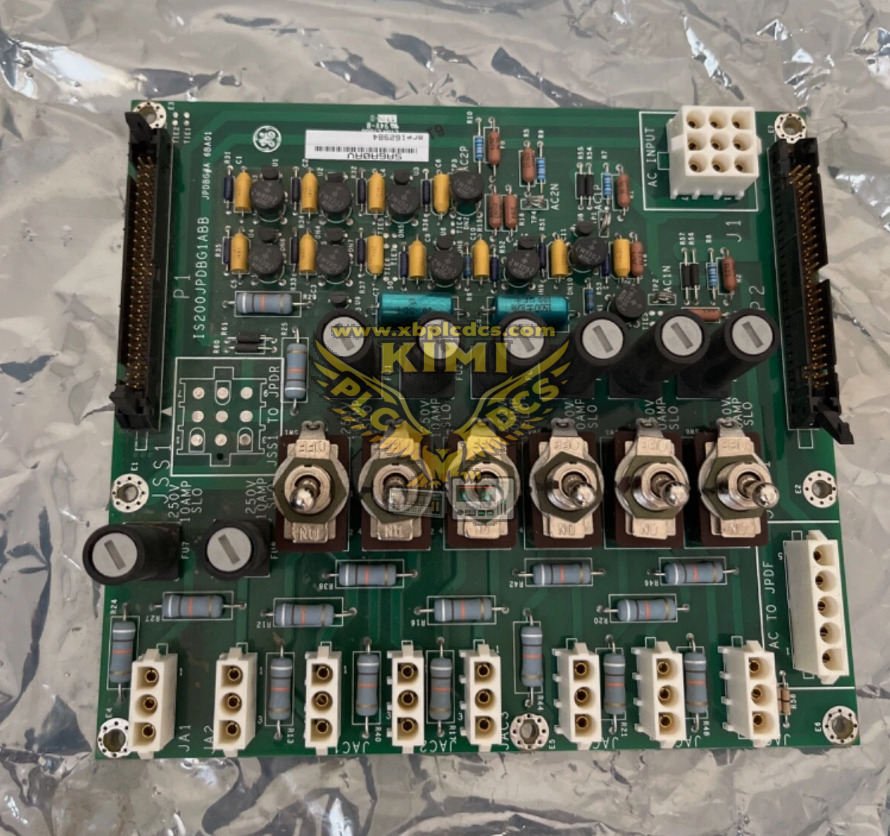

The GE IS200JPDBG1A is a JPDB power distribution printed circuit board for GE Speedtronic Mark VI turbine control system. It receives main DC power input and distributes regulated power to multiple I/O packs, terminal boards and internal rack components. Equipped with built-in branch fuses and voltage monitoring circuits, it detects power branch faults and sends diagnostic feedback to the main Mark VI controller. This rack-mounted board is a vital spare part for gas and steam turbine control cabinets in power generation facilities.

Product Features & Functions

• Centralized DC power distribution for Mark VI control rack internal modules
• Integrated individual fuses for each power branch for overcurrent protection
• Onboard voltage monitoring and fault diagnosis for each output channel
• Transmits power status and failure alarm signals to the main controller
• Rugged PCB construction, high EMC immunity for power plant harsh environments
• Front LED indicators for power supply status and blown fuse alerts
• Designed for slot mounting inside Mark VI turbine control cabinet chassis

Application Scenarios

• Gas turbine and steam turbine control cabinets using GE Mark VI Speedtronic system
• Thermal power plant generator control and auxiliary protection systems
• Oil & gas compressor skid and pipeline turbine control equipment
• EX2100 excitation system power distribution sub-assemblies
• Legacy Mark VI control system maintenance, overhaul and spare board replacement
