Product Brief Description

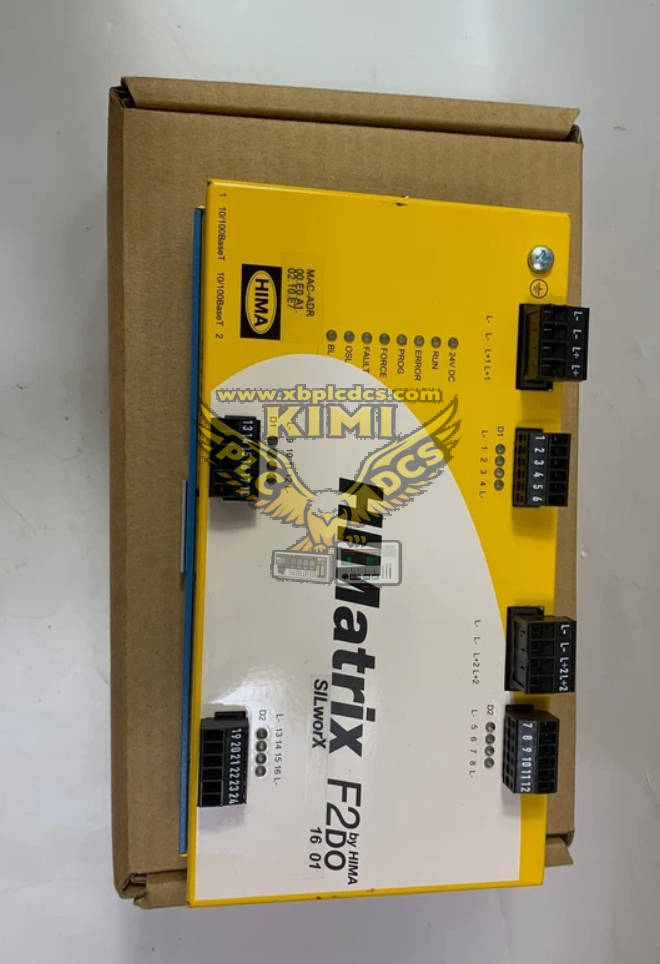

The HIMA F2DO801 is a SIL3 certified safety remote digital output module for HIMatrix safety PLC systems. It comes with 8 channels of potential-free normally open relay outputs for driving safety-related field actuators. Equipped with dual RJ45 SafeEthernet ports with integrated switch, it supports daisy-chain and redundant network topology to communicate with safety controllers. This DIN-rail mounted module is widely deployed in safety instrumented systems for emergency shutdown and safety interlock control.

Product Features & Functions

• 8 isolated potential-free relay output channels for safety actuator control
• SIL3 certification per IEC61508, PL e / Cat.4 compliance for machine safety
• Dual 10/100Mbps SafeEthernet ports with built-in network switch
• 24VDC power supply, each relay supports up to 250V AC/DC, max 3A switching
• Front panel LED indicators for power, channel status and fault diagnostics
• 35mm DIN rail mounting, rugged housing for industrial cabinet installation
• Supports line monitoring and internal self-test to detect circuit failures

Application Scenarios

• Oil & gas, refinery and pipeline SIS emergency shutdown systems
• Chemical plant safety interlock, burner and valve safety control
• Power plant boiler and turbine protection control systems
• Machinery safety, material handling and furnace safety automation
• HIMatrix safety system maintenance, retrofit and spare replacement
