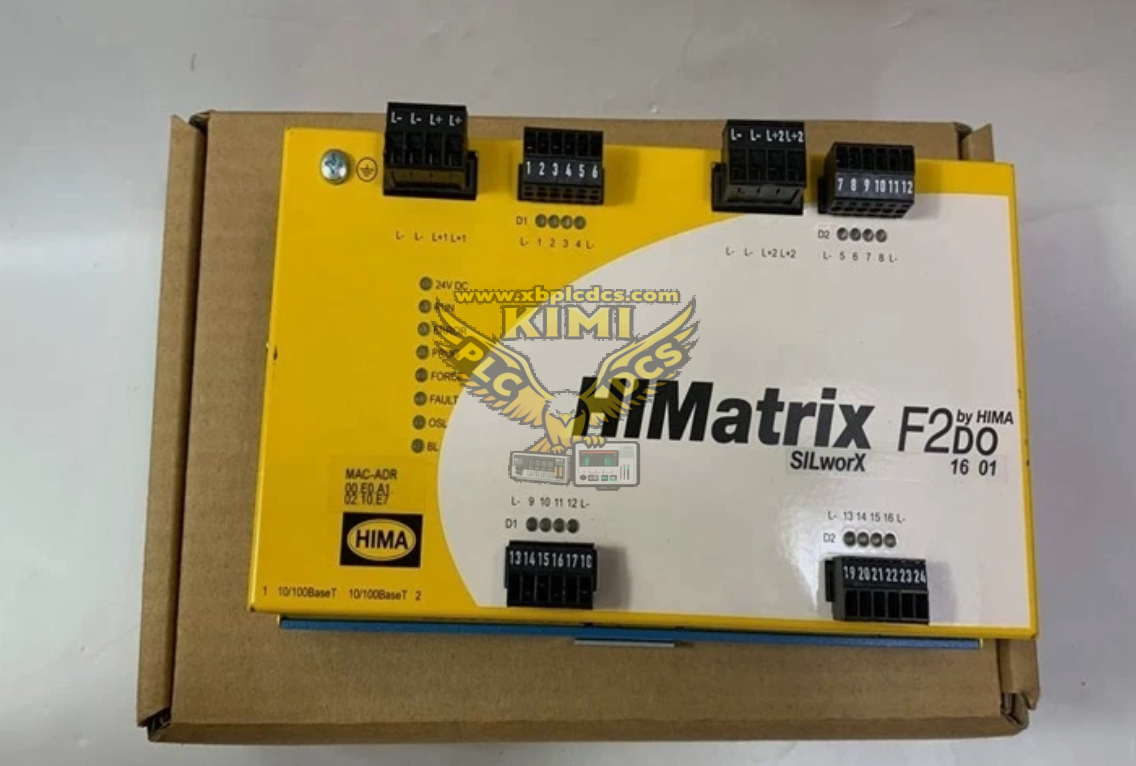

HIMA F2 DO 16 01 Remote Digital Output Module

Short Description: HIMA F2 DO 16 01 is a HIMatrix safety remote I/O module with 16 channels of 24VDC digital outputs. TÜV certified up to SIL3, Cat.4 / PL e, it connects to HIMatrix safety controllers via SafeEthernet to drive field actuators such as solenoid valves and safety relays. It comes with dual Ethernet ports with integrated switch, built-in channel diagnostics and DIN rail compact design for distributed safety I/O expansion in SIS systems.

Product Functions

• 16-channel safety 24VDC digital output; 8 channels max 2A, other 8 channels max 0.5A
• Built-in open-load and short-circuit detection for each output channel
• Dual SafeEthernet ports with integrated switch for flexible network topology
• Transmits safety output commands from HIMatrix controller to field devices
• Real-time fault diagnosis and feedback of channel status to safety logic solver
• 24VDC power supply, IP20 protection grade, DIN rail mounting
• Compatible with SILworX and ELOP II Factory engineering software for configuration

Application Scenarios

• SIL3 Safety Instrumented Systems (SIS) and Emergency Shutdown Systems (ESD)
• Oil & gas skid units, onshore plants and offshore platform safety control
• Petrochemical and chemical plant safety interlock control cabinets
• Fire & gas (F&G) systems for valve and alarm actuator control
• Machine safety protection, emergency stop and safety gate control
• Distributed remote safety I/O expansion for HIMatrix safety PLC systems
